SCBCL 1616 H 09
SCBCL 1616 H 09
SCBCL 1616 H 09

SCBCL 1616 H 09

UGC DOR6756892
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.00 CAD - $151.00 CAD
$151.00 CAD
$151.00 CAD - $151.00 CAD
$151.00 CAD

Vendu en lots de : 1

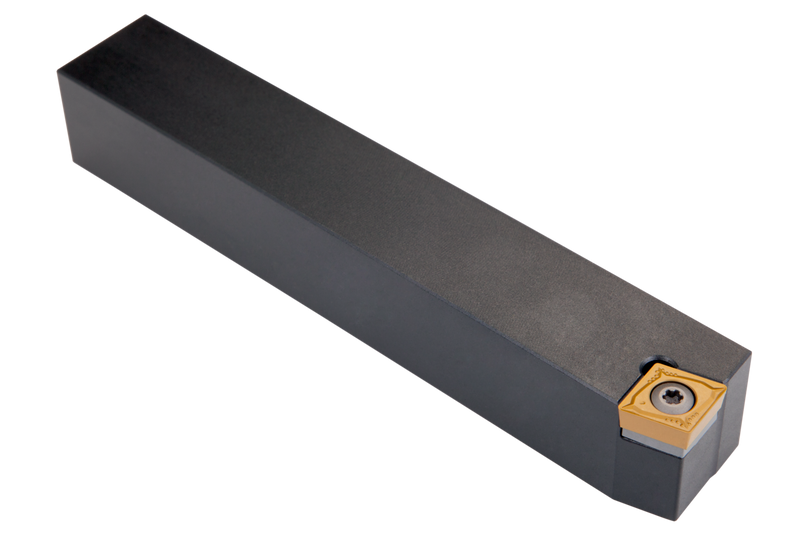

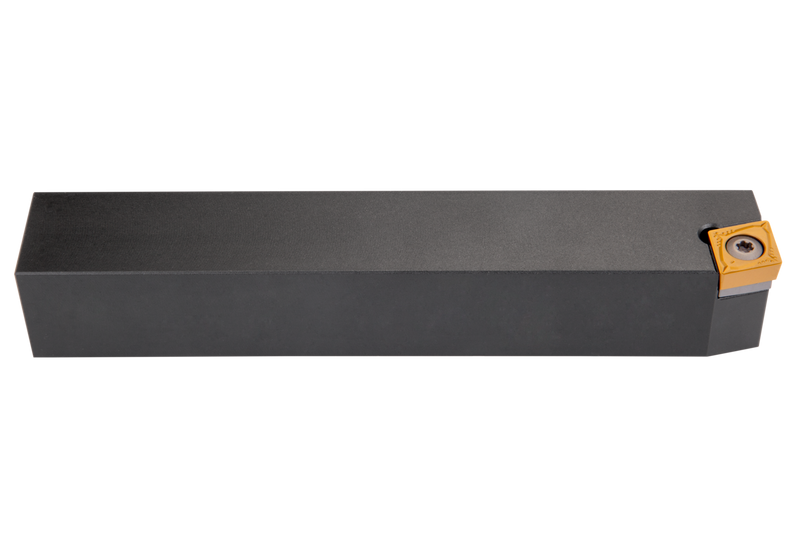

Outil de tournage à bride par vis pour plaquette positive en forme de losange à 80° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 3,97 mm (désignation ISO CC.. 09T3..), coupe à gauche à 75° avec queue droite, hauteur d'outil de 16 mm x largeur de 16 mm x longueur de 100 mm pour le tournage conique et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCBCL 1616 H 09
Product Number6756892
Product FamilyBCSC (RI) EXT

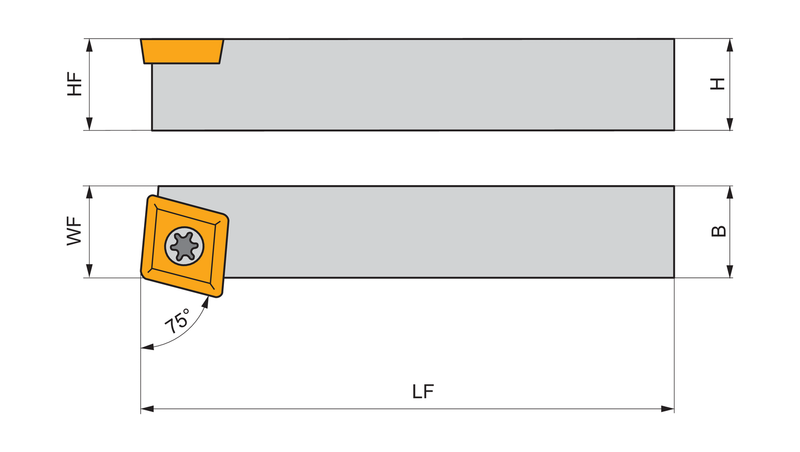

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756892
EAN3603602922588
File Type Download
SCBCL 1616 H 09 — 3D Model STP Download
SCBCL 1616 H 09 — Line Drawing PDF Download
