PSSNR 3232 P 19
PSSNR 3232 P 19
PSSNR 3232 P 19

PSSNR 3232 P 19

UGC DOR6756897
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

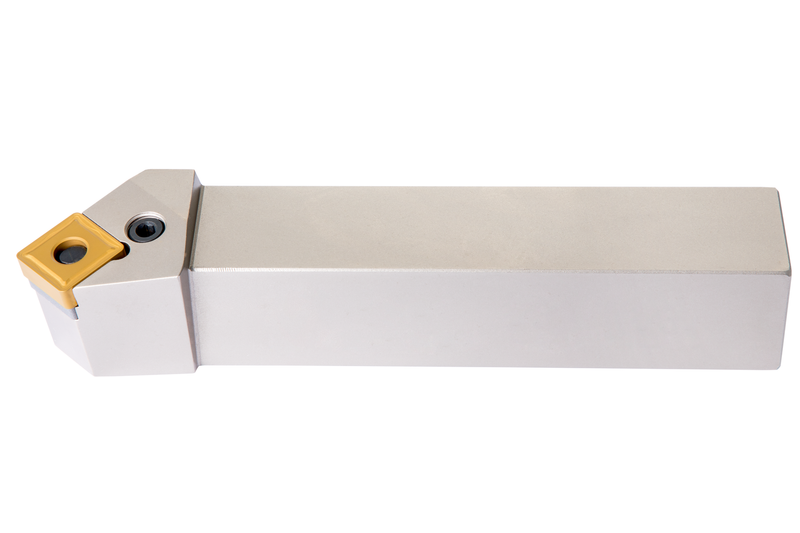

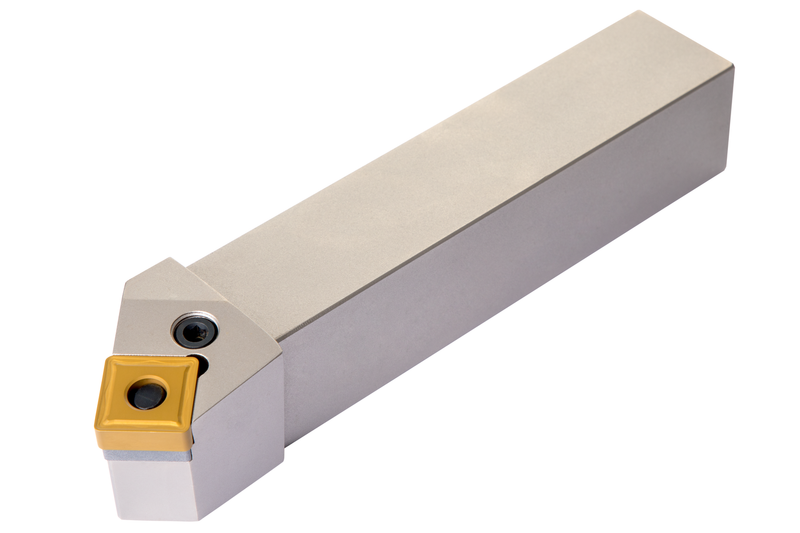

Porte-outil à levier pour plaquette carrée négative avec un diamètre de cercle inscrit de 19,05 mm, 6,35 mm d'épaisseur (désignation ISO SN... 1906...), coupe à droite à 45° avec un corps déporté, hauteur de l'outil de 32 mm x largeur de 32 mm x longueur de 170 mm pour le chanfreinage, le tournage conique, le copiage monodirectionnel et multidirectionnel, le surfaçage sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSSNR 3232 P 19
Product Number6756897
Product FamilyPSSN(RL) EXT

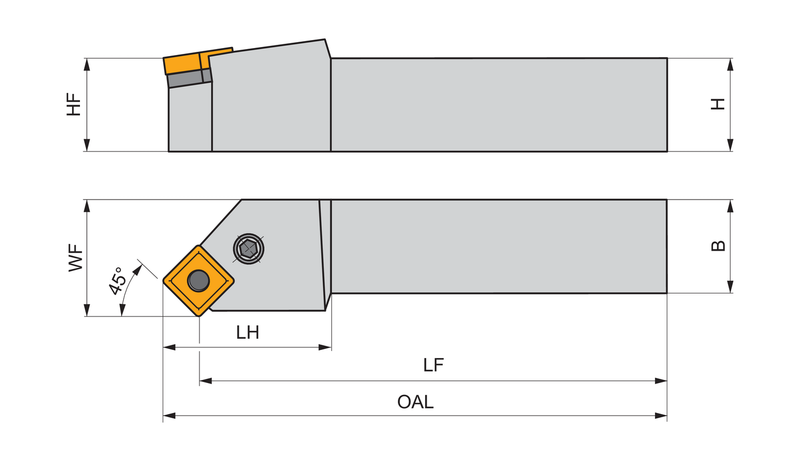

Dimensions
Overall Length — in (OAL)7.185"
Overall Length — mm (OAL)182.5 mm
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756897
EAN3603602922632
File Type Download
PSSNR 3232 P 19 — 3D Model STP Download
PSSNR 3232 P 19 — 2D Model DXF Download
PSSNR 3232 P 19 — Line Drawing PDF Download
