PSSNR 2525 M 12
PSSNR 2525 M 12
PSSNR 2525 M 12

PSSNR 2525 M 12

UGC DOR6756899
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

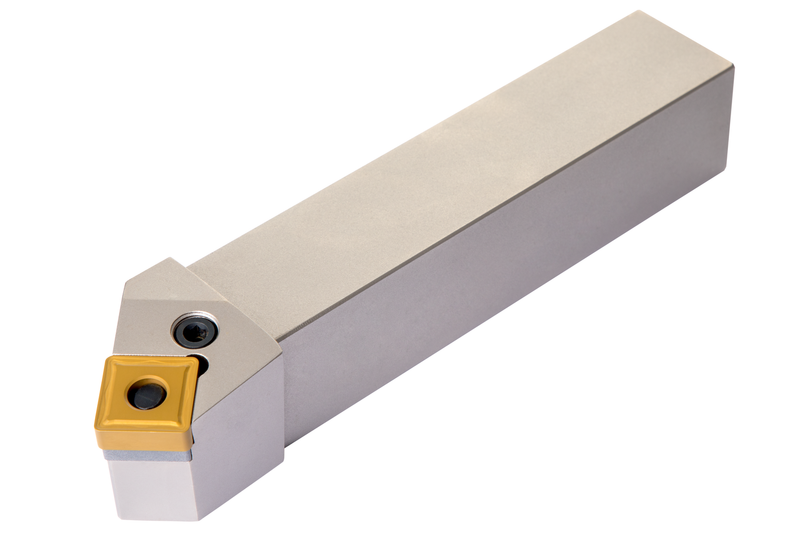

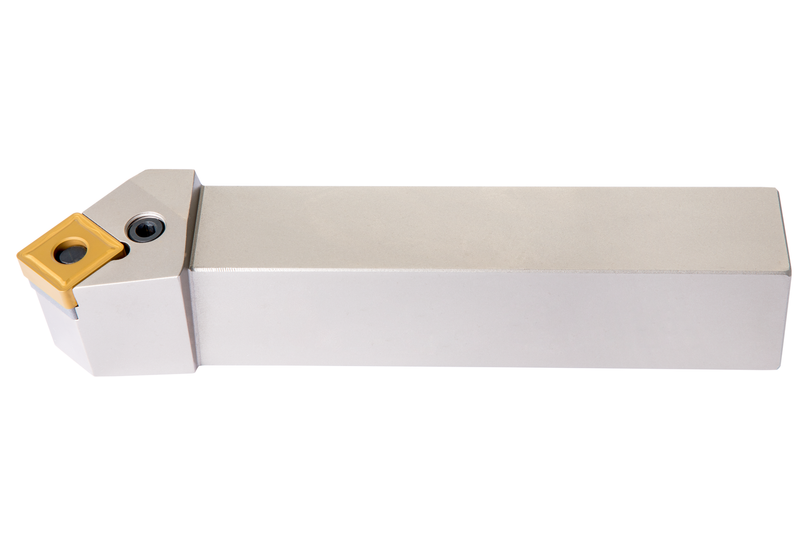

Outil de tournage à levier pour plaquette négative carrée avec un diamètre de cercle inscrit de 12,7 mm, épaisseur de 4,76 mm (désignation ISO SN.. 1204..), coupe latérale droite à 45° avec corps déporté, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel, le dressage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSSNR 2525 M 12
Product Number6756899
Product FamilyPSSN(RL) EXT

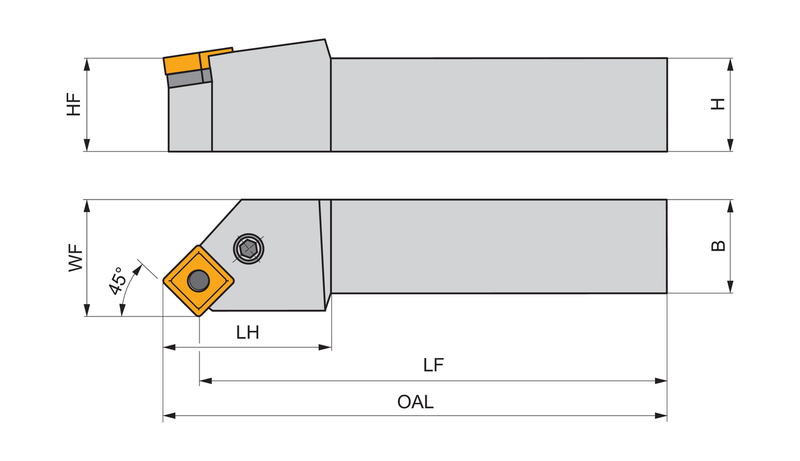

Dimensions
Overall Length — in (OAL)6.232"
Overall Length — mm (OAL)158.3 mm
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756899
EAN3603602922656
File Type Download
PSSNR 2525 M 12 — 3D Model STP Download
PSSNR 2525 M 12 — 2D Model DXF Download
PSSNR 2525 M 12 — Line Drawing PDF Download
