S08F-SCLCL 06
S08F-SCLCL 06
S08F-SCLCL 06

S08F-SCLCL 06

UGC DOR6756902
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

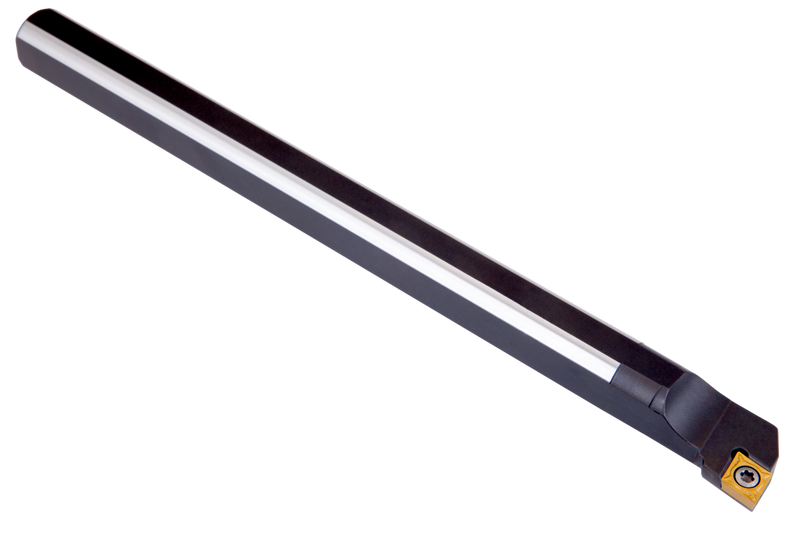

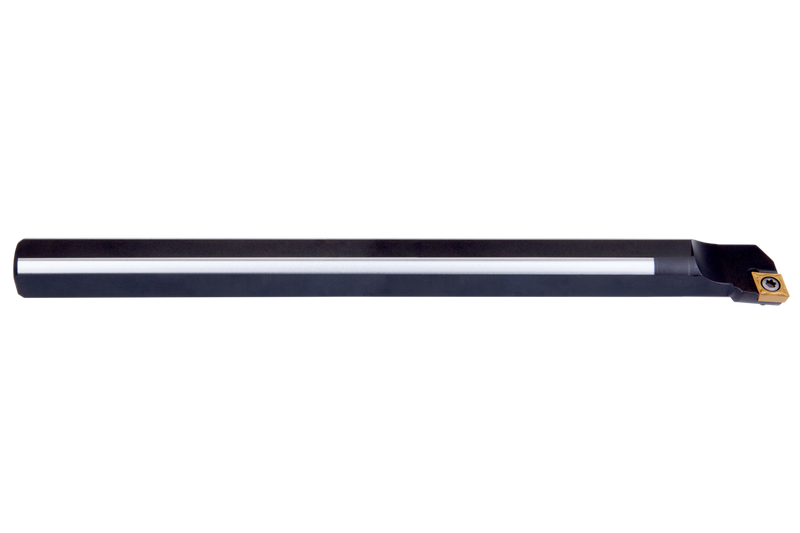

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde à 80° avec un diamètre de cercle inscrit de 6,35mm, 2,38mm d'épaisseur (désignation ISO CC.. 0602.. ), coupe latérale et frontale à 95° à gauche avec queue déportée, acier sans trou de refroidissement, 8mm de diamètre x 80mm de long pour l'alésage conique et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S08F-SCLCL 06
Product Number6756902
Product FamilyCPPC(RL) INT

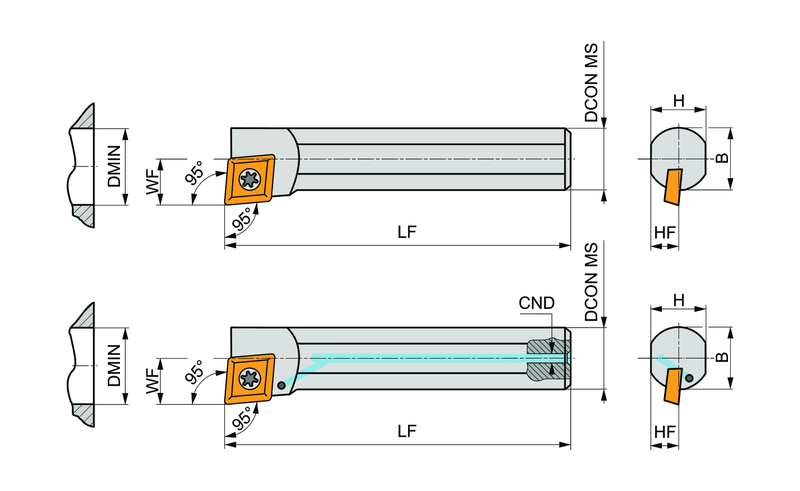

Dimensions
Functional Length — in (LF)3.15"
Functional Length — mm (LF)80.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Shank Height — mm (H)0.283 mm
Min. Bore Dia. — in (DMIN)0.433"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756902
EAN3603602922687
File Type Download
S08F-SCLCL 06 — 3D Model STP Download
S08F-SCLCL 06 — Line Drawing PDF Download
