PRDCN 3232 P 20
PRDCN 3232 P 20
PRDCN 3232 P 20

PRDCN 3232 P 20

UGC DOR6756904
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

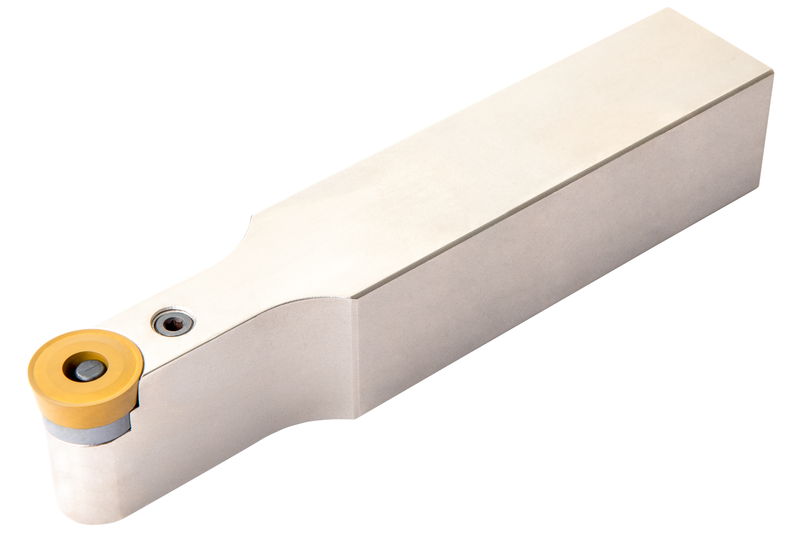

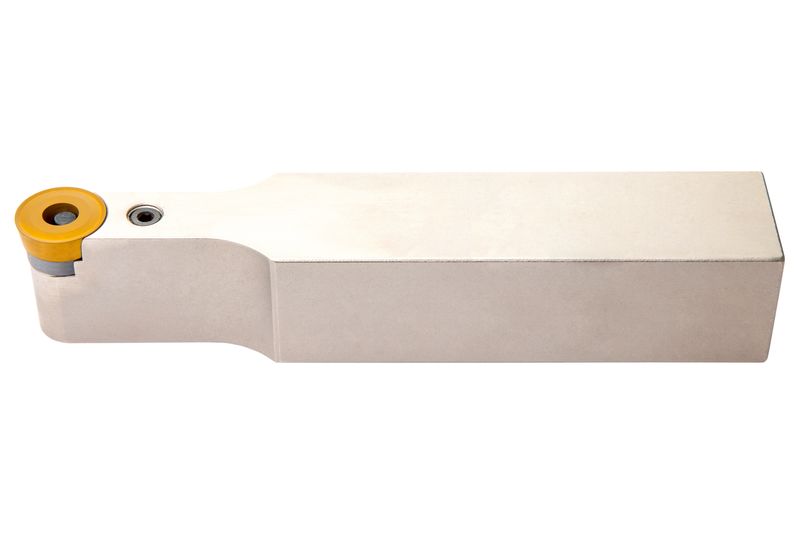

Outil de tournage à levier pour le maintien d'une plaquette ronde positive d'un diamètre de 20mm et d'une épaisseur de 6,35mm (désignation ISO RCMX 2006MO), main neutre et coupe frontale avec queue cylindrique, hauteur d'outil de 32mm x largeur de 32mm x longueur de 170mm pour le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PRDCN 3232 P 20
Product Number6756904
Product FamilyPRDCN EXT

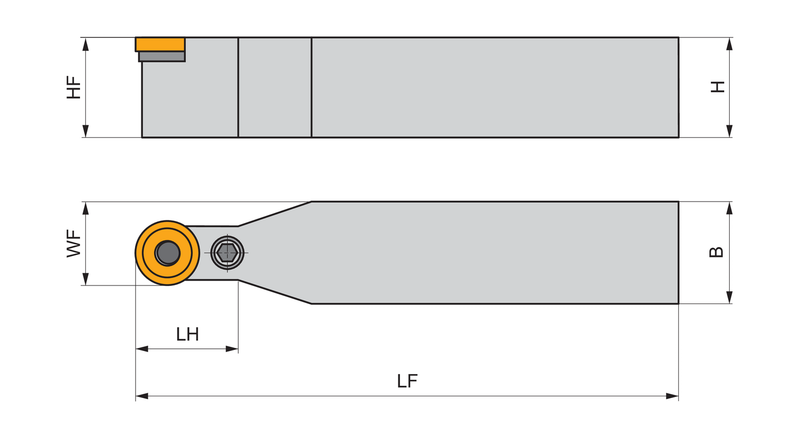

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756904
EAN3603602922700
File Type Download
PRDCN 3232 P 20 — 3D Model STP Download
PRDCN 3232 P 20 — 2D Model DXF Download
PRDCN 3232 P 20 — Line Drawing PDF Download
