PSDNN 2525 M 12
PSDNN 2525 M 12
PSDNN 2525 M 12

PSDNN 2525 M 12

UGC DOR6756906
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

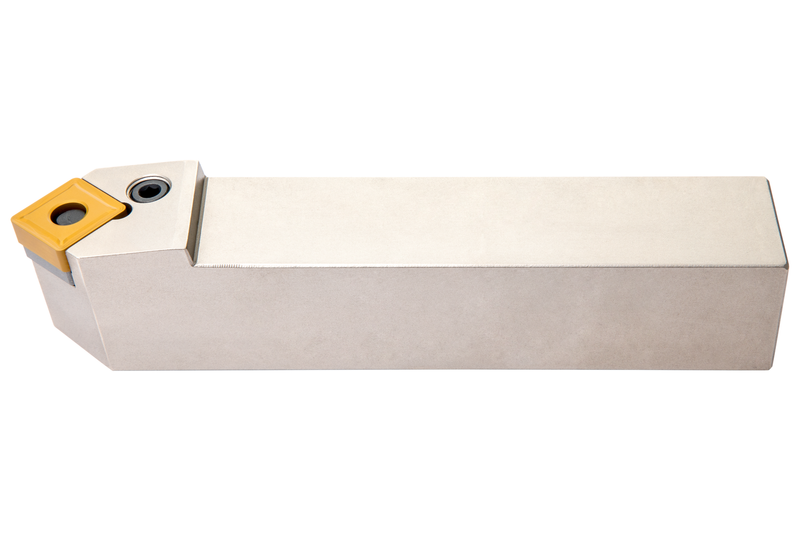

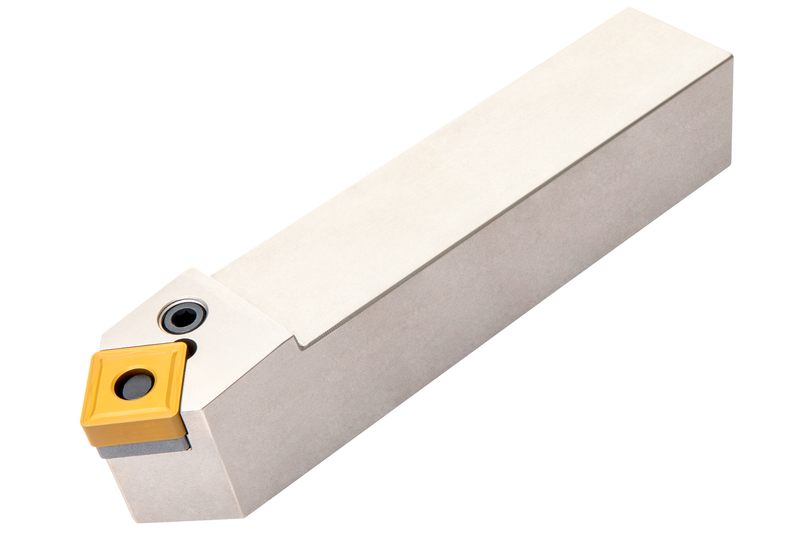

Outil de tournage à levier pour plaquette carrée négative d'un diamètre de cercle inscrit de 12,7 mm, d'une épaisseur de 4,76 mm (désignation ISO SN.. 1204.. ), main neutre 45° de coupe latérale avec queue cylindrique, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le chanfreinage, le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSDNN 2525 M 12
Product Number6756906
Product FamilyDSNPD EXT

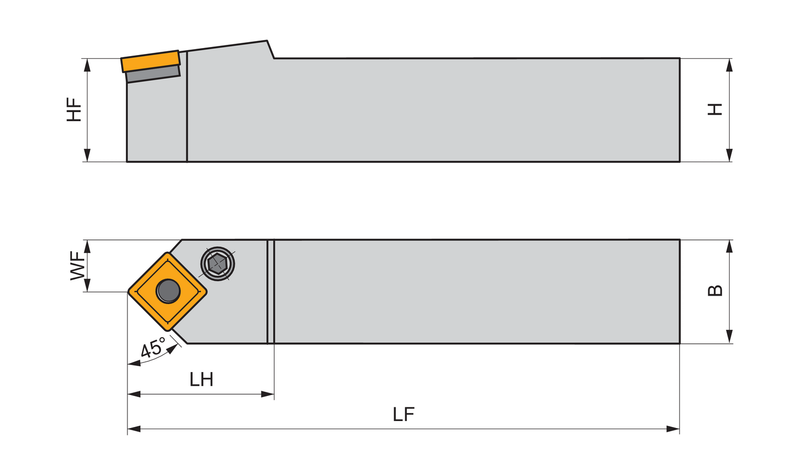

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756906
EAN3603602922724
File Type Download
PSDNN 2525 M 12 — 3D Model STP Download
PSDNN 2525 M 12 — 2D Model DXF Download
PSDNN 2525 M 12 — Line Drawing PDF Download
