PDXNR 2525 M 15
PDXNR 2525 M 15
PDXNR 2525 M 15

PDXNR 2525 M 15

UGC DOR6756907
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

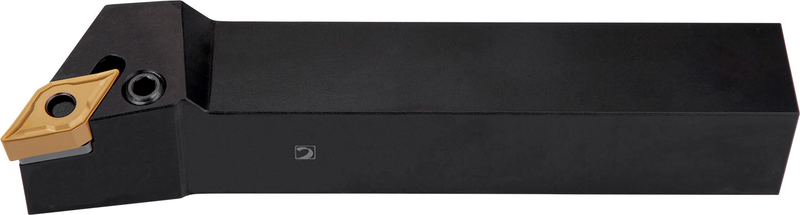

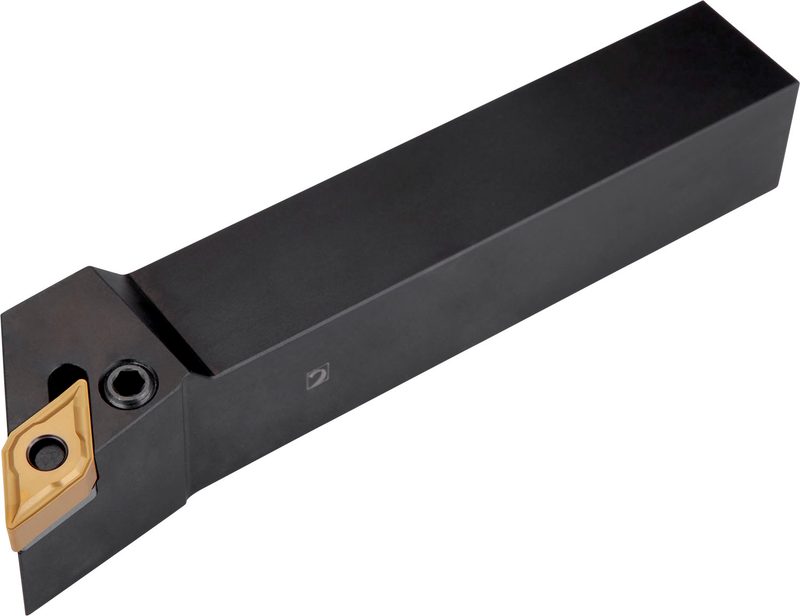

Outil de chariotage à levier pour la fixation d'un insert négatif rhomboïdal à 55° avec un diamètre de cercle inscrit de 12,7 mm, épaisseur de 6,35 mm (désignation ISO DN... 1506...), style d'outil spécial droit, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le tournage conique, le tournage de copie unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDXNR 2525 M 15
Product Number6756907
Product FamilyPDXN(RL) EXT

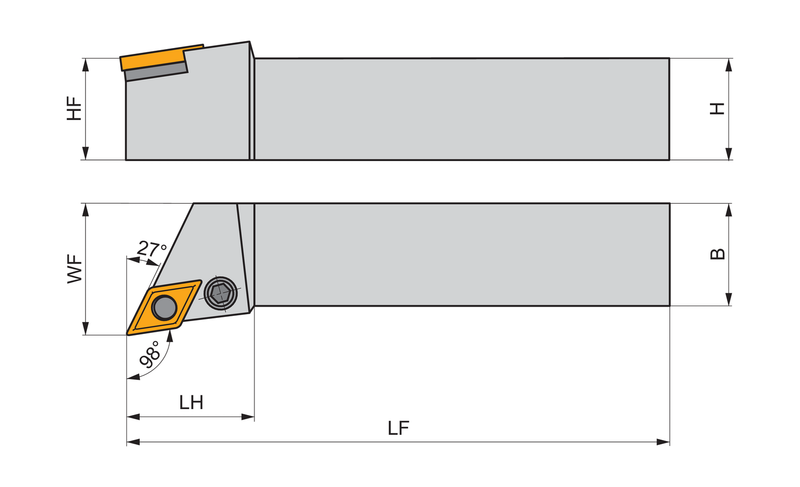

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756907
EAN3603602922731
File Type Download
PDXNR 2525 M 15 — 3D Model STP Download
PDXNR 2525 M 15 — 2D Model DXF Download
PDXNR 2525 M 15 — Line Drawing PDF Download
