PSSNR 2020 K 12
PSSNR 2020 K 12
PSSNR 2020 K 12

PSSNR 2020 K 12

UGC DOR6756909
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.00 CAD - $156.00 CAD
$156.00 CAD
$156.00 CAD - $156.00 CAD
$156.00 CAD

Vendu en lots de : 1

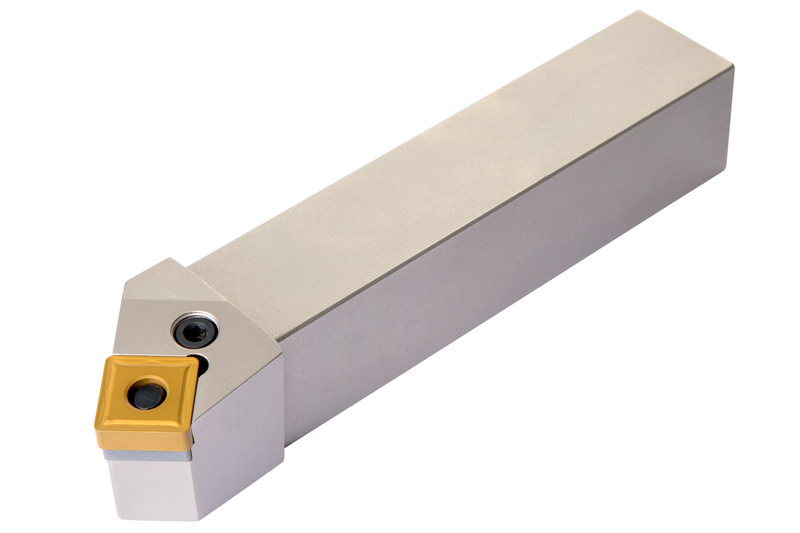

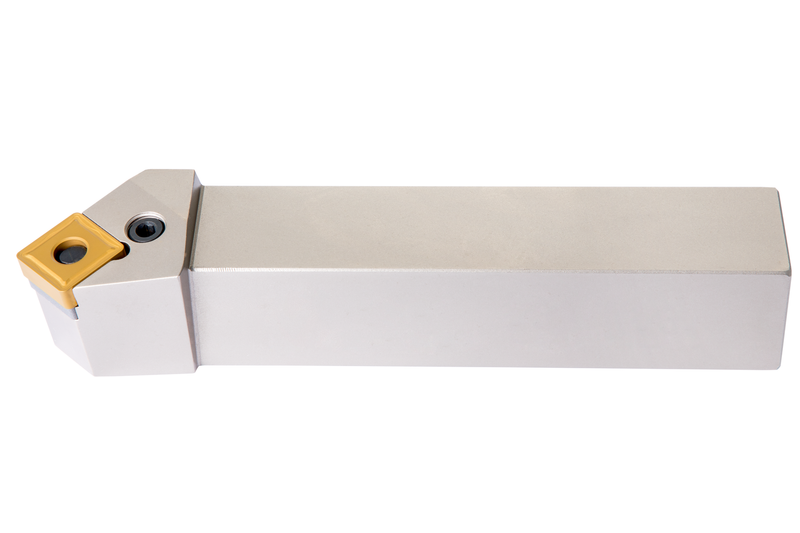

Outil de tournage à levier pour le maintien d'un insert négatif carré d'un diamètre de cercle inscrit de 12,7 mm, épaisseur de 4,76 mm (désignation ISO SN.. 1204.. ), coupe latérale droite à 45° avec corps déporté, hauteur d'outil de 20 mm x largeur de 20 mm x longueur de 125 mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel, le dressage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSSNR 2020 K 12
Product Number6756909
Product FamilyPSSN(RL) EXT

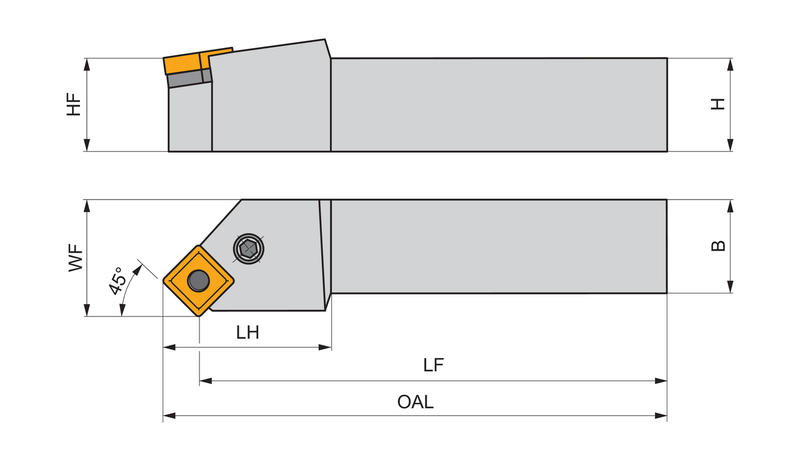

Dimensions
Overall Length — in (OAL)5.248"
Overall Length — mm (OAL)133.3 mm
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756909
EAN3603602922755
File Type Download
PSSNR 2020 K 12 — 3D Model STP Download
PSSNR 2020 K 12 — 2D Model DXF Download
PSSNR 2020 K 12 — Line Drawing PDF Download
