SER 2525 M 16
SER 2525 M 16
SER 2525 M 16

SER 2525 M 16

UGC DOR6756940
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$232.00 CAD - $232.00 CAD
$232.00 CAD
$232.00 CAD - $232.00 CAD
$232.00 CAD

Vendu en lots de : 1

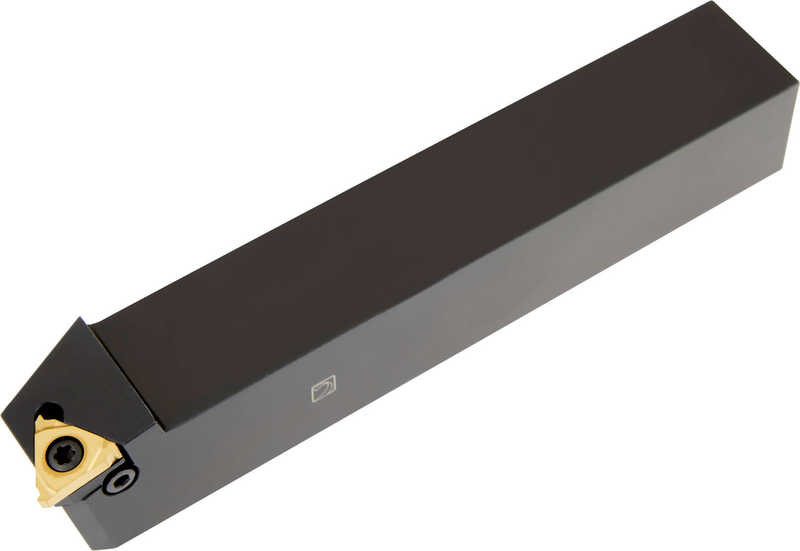

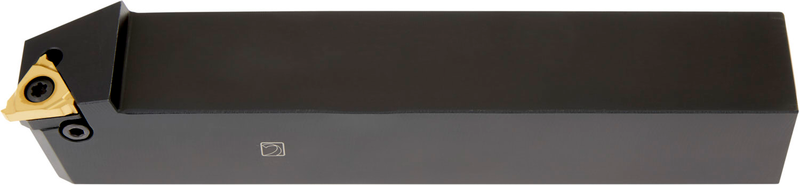

Outil de tournage de filetages à serrage par vis avec un angle d'hélice de 1,5° pour maintenir un insert triangulaire d'un diamètre de cercle inscrit de 9,525 mm (désignation TN 16ER..), conception standard droite avec queue droite, hauteur d'outil de 25 mm, largeur de 25 mm et longueur totale de 150 mm pour le filetage extérieur, le rainurage de circlips et le rainurage de joints toriques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SER 2525 M 16
Product Number6756940
Product FamilySE(RL)

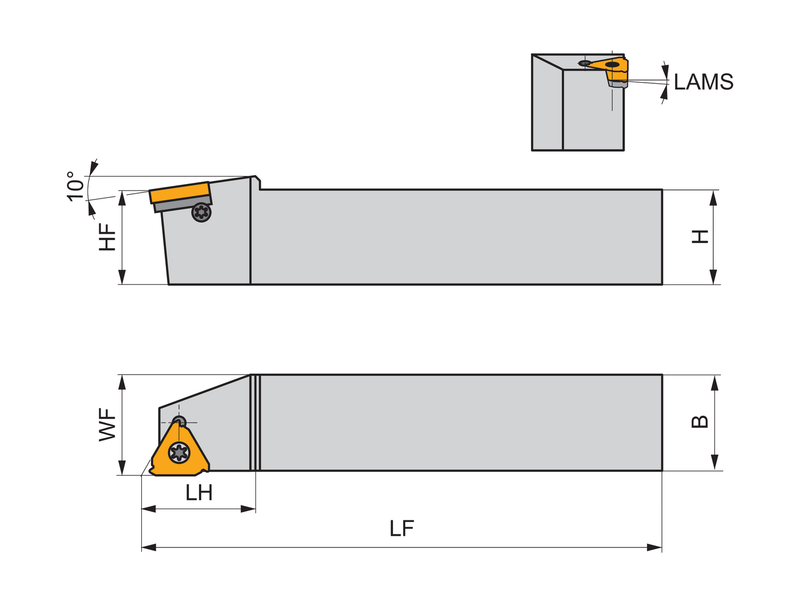

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756940
EAN3603602923066
File Type Download
SER 2525 M 16 — 3D Model STP Download
SER 2525 M 16 — 2D Model DXF Download
SER 2525 M 16 — Line Drawing PDF Download
