SER 3225 P 16
SER 3225 P 16
SER 3225 P 16

SER 3225 P 16

UGC DOR6756973
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$262.00 CAD - $262.00 CAD
$262.00 CAD
$262.00 CAD - $262.00 CAD
$262.00 CAD

Vendu en lots de : 1

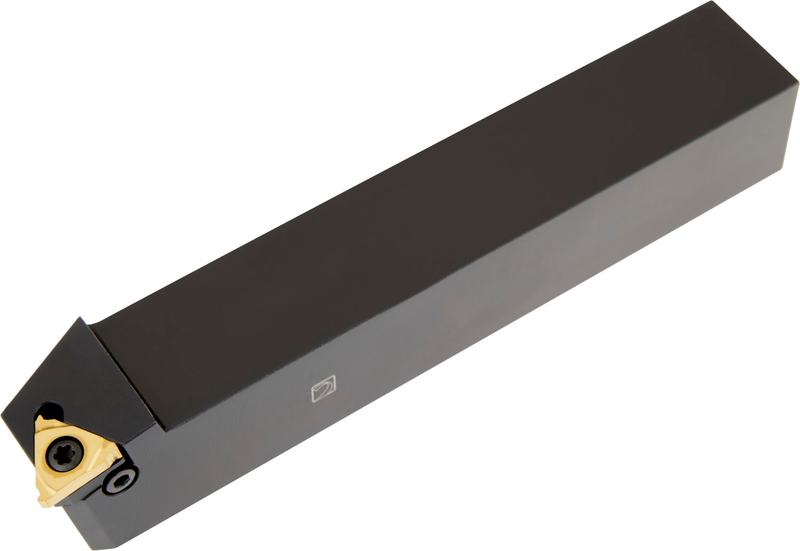

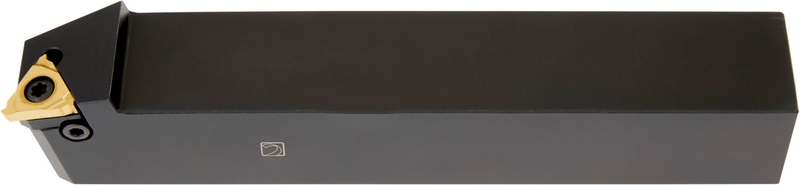

Outil de tournage de filetage à plaquette vissée avec un angle d'hélice de 1,5° pour maintenir une plaquette triangulaire d'un diamètre de cercle inscrit de 9,525 mm (désignation TN 16ER.. ), conception standard à droite avec queue droite, hauteur d'outil de 32 mm, largeur de 25 mm et longueur totale de 170 mm pour le filetage extérieur, le rainurage de circlips et le rainurage de joints toriques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SER 3225 P 16
Product Number6756973
Product FamilySARL

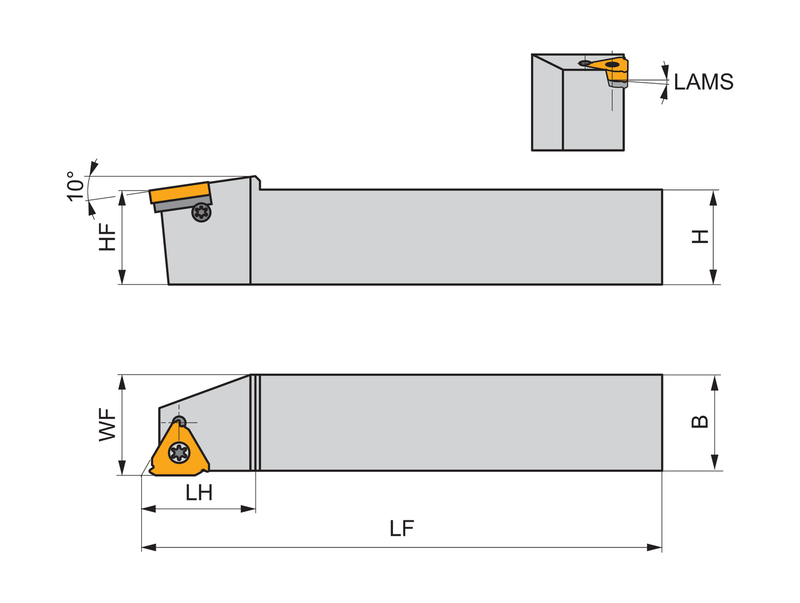

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756973
EAN3603602923394
File Type Download
SER 3225 P 16 — 3D Model STP Download
SER 3225 P 16 — 2D Model DXF Download
SER 3225 P 16 — Line Drawing PDF Download
