S25T-SCKCR 09
S25T-SCKCR 09

S25T-SCKCR 09

UGC DOR6757000
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$279.00 CAD - $279.00 CAD
$279.00 CAD
$279.00 CAD - $279.00 CAD
$279.00 CAD

Vendu en lots de : 1

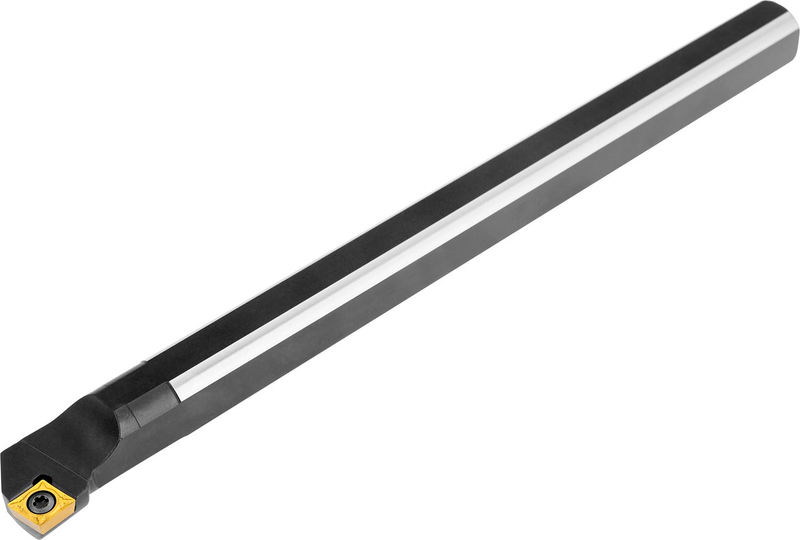

Alésoir à barreau de chariotage à vis pour plaquette positive rhomboïde à 80° avec diamètre de cercle inscrit de 9,525mm, 3,97mm d'épaisseur (désignation ISO CC.. 09T3.. ), coupe à droite 75° avec tige décalée, acier sans trou de refroidissement, 25mm de diamètre x 300mm de long pour l'alésage conique et l'alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S25T-SCKCR 09
Product Number6757000
Product FamilySCKC(RL) INT

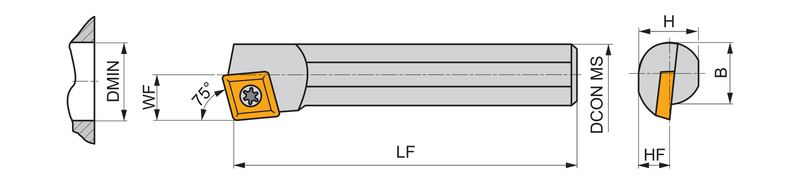

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757000
EAN3603602923660
File Type Download
S25T-SCKCR 09 — 3D Model STP Download
S25T-SCKCR 09 — Line Drawing PDF Download
