S20Q-SDZCL 11-93
S20Q-SDZCL 11-93
S20Q-SDZCL 11-93

S20Q-SDZCL 11-93

UGC DOR6757003
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$244.00 CAD - $244.00 CAD
$244.00 CAD
$244.00 CAD - $244.00 CAD
$244.00 CAD

Vendu en lots de : 1

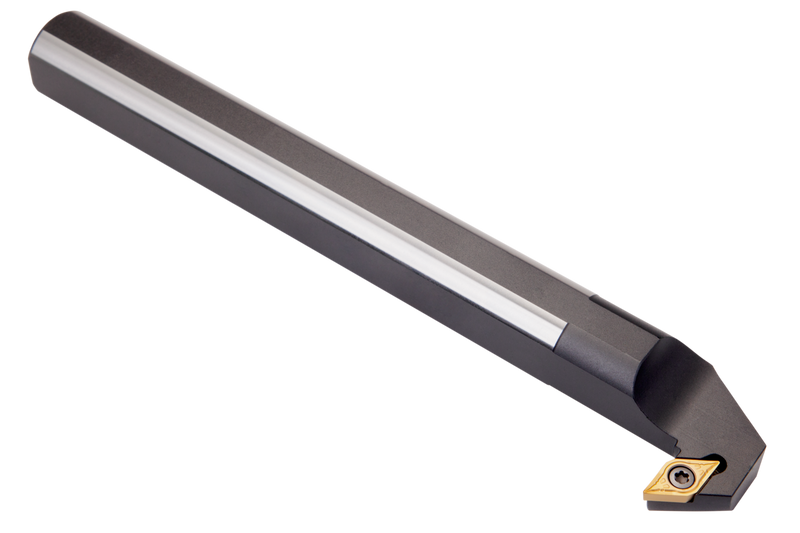

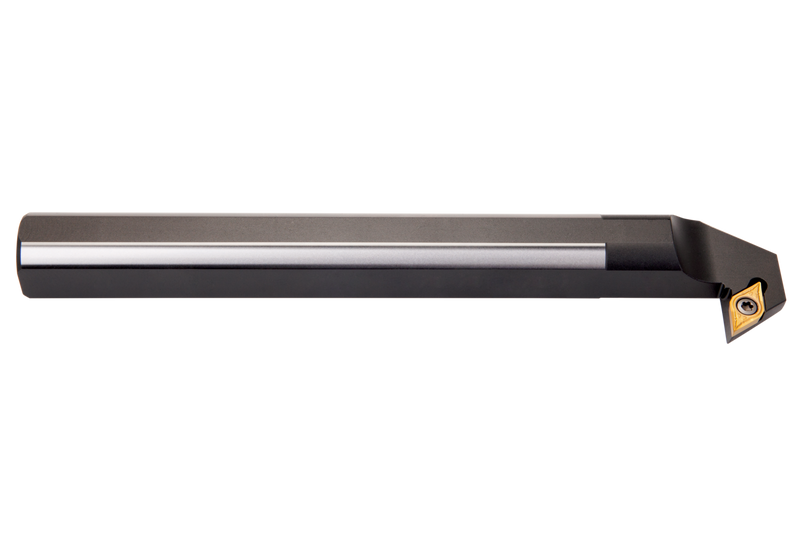

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde 55° avec un diamètre de cercle inscrit de 9,525mm, 3,97mm d'épaisseur (désignation ISO DC.. 11T3.. ), coupe arrière à gauche avec corps déporté, acier sans trou d'arrosage, diamètre 20mm x 180mm de long pour chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S20Q-SDZCL 11-93
Product Number6757003
Product FamilySDZC(RL) INT

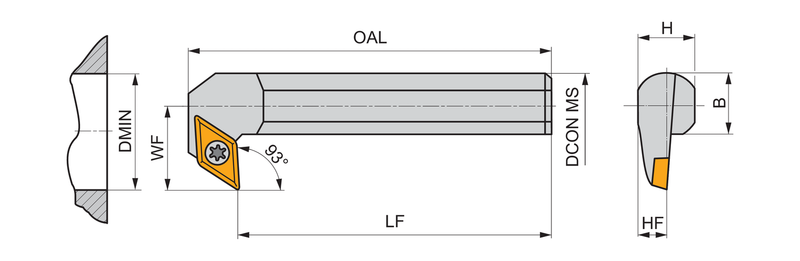

Dimensions
Overall Length — in (OAL)7.795"
Overall Length — mm (OAL)198.0 mm
Functional Length — in (LF)7.087"
Functional Length — mm (LF)180.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)1.378"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757003
EAN3603602923691
File Type Download
S20Q-SDZCL 11-93 — 3D Model STP Download
S20Q-SDZCL 11-93 — Line Drawing PDF Download
