40A4R-S90AP16D
40A4R-S90AP16D

40A4R-S90AP16D

UGC DOR6757024
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$682.00 CAD - $682.00 CAD
$682.00 CAD
$682.00 CAD - $682.00 CAD
$682.00 CAD

Vendu en lots de : 1

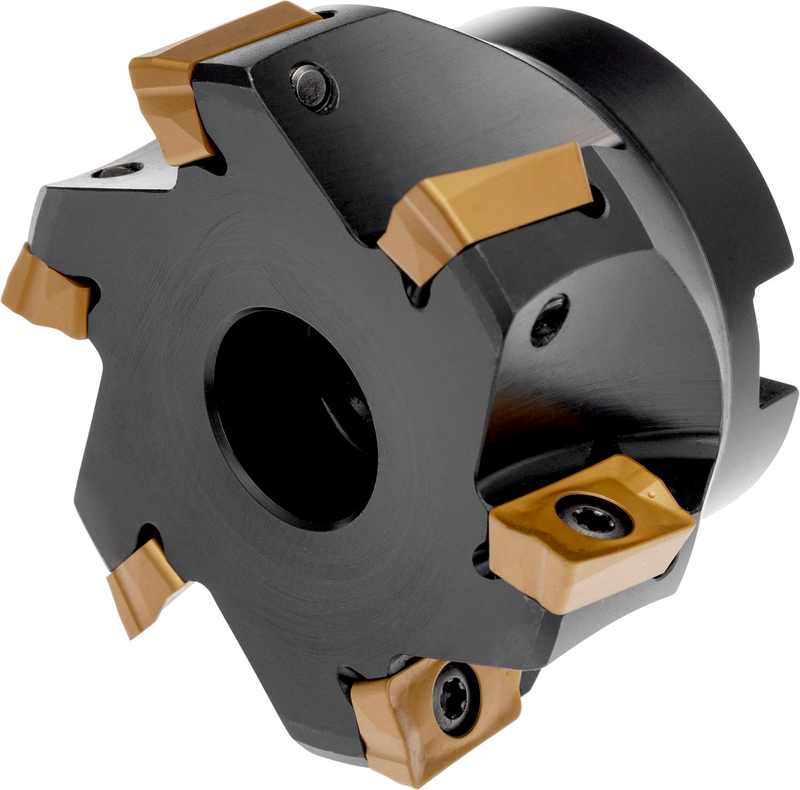

Fraise à épaule à géométrie positive/négative qui utilise 4 plaquettes simple face APKT 1604... ou APET 1604..., diamètre de coupe 40 mm avec un angle d'attaque de 90° et un alésage de connexion de 16 mm selon DIN 8030-A, une longueur de dépassement de 40 mm et un pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de fentes peu profondes, l'interpolation hélicoïdale, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 13,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A4R-S90AP16D
Product Number6757024
Product FamilySAP16D
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

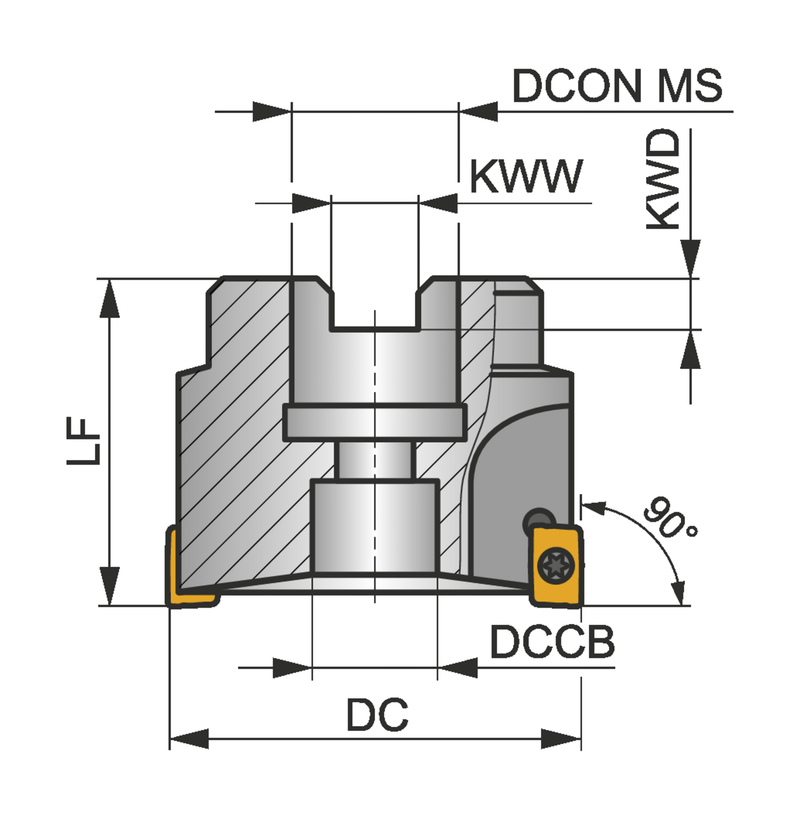

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)1.575"
Overall Length — mm (OAL)40.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSAP16D
ShankFraise-scie DIN 8030 A
Direction of ToolGauche
Reference Numbers
EDP Number6757024
EAN3603602923905
File Type Download
40A4R-S90AP16D — Line Drawing PDF Download
