100B8R-S90AP16D
100B8R-S90AP16D
100B8R-S90AP16D

100B8R-S90AP16D

UGC DOR6757030
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,444.00 CAD - $1,444.00 CAD
$1,444.00 CAD
$1,444.00 CAD - $1,444.00 CAD
$1,444.00 CAD

Vendu en lots de : 1

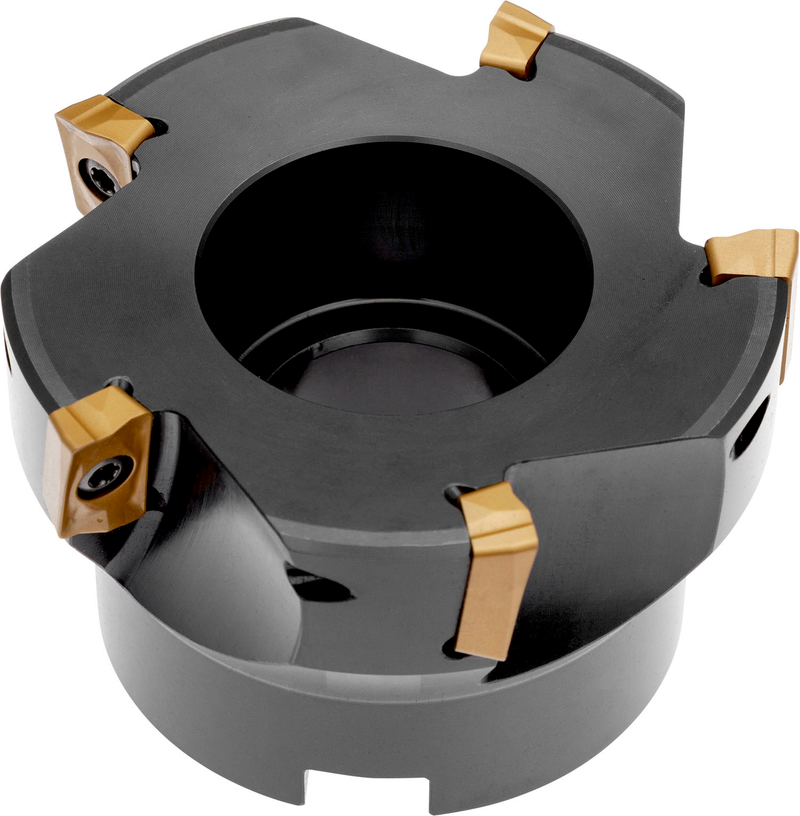

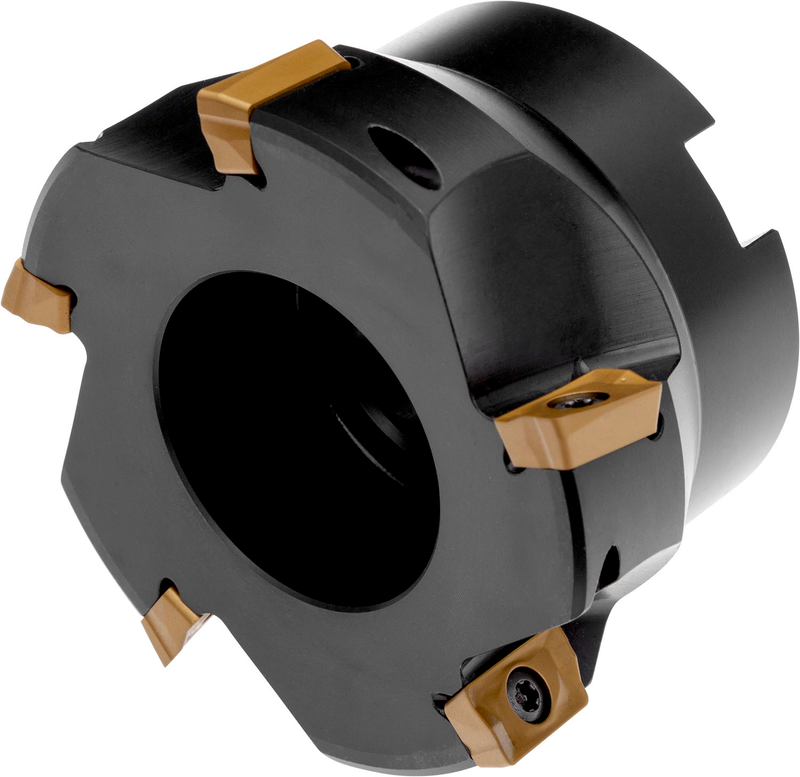

Fraise à épaule à géométrie positive/négative utilisant 8 plaquettes simple face APKT 1604.. ou APET 1604.., diamètre de coupe 100mm avec un angle d'attaque de 90° et un alésage de raccordement de 32mm selon DIN 8030-B, une longueur de saillie de 50mm et un pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 13.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100B8R-S90AP16D
Product Number6757030
Product FamilySAP16D
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSAP16D
ShankFraise à surfacer-dresser DIN 8030 B
Direction of ToolGauche
Reference Numbers
EDP Number6757030
EAN3603602923967
File Type Download
100B8R-S90AP16D — Line Drawing PDF Download
