PSDNN 2020 K 12
PSDNN 2020 K 12
PSDNN 2020 K 12

PSDNN 2020 K 12

UGC DOR6757038
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.00 CAD - $156.00 CAD
$156.00 CAD
$156.00 CAD - $156.00 CAD
$156.00 CAD

Vendu en lots de : 1

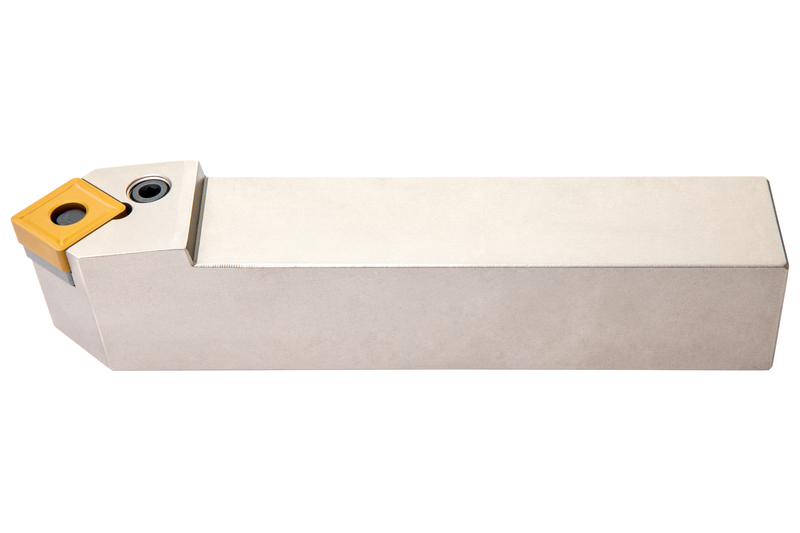

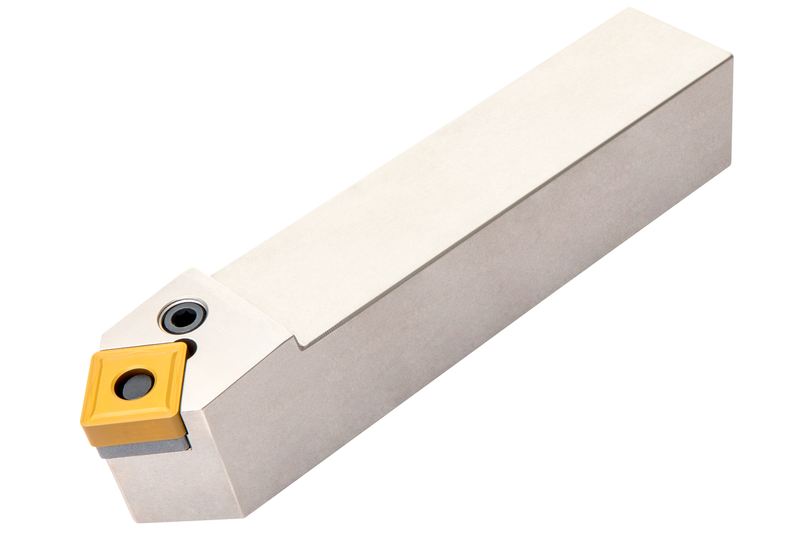

Outil de tournage à levier pour plaquette carrée négative avec diamètre de cercle inscrit de 12,7 mm, épaisseur de 4,76 mm (désignation ISO SN.. 1204..), main neutre, coupe latérale à 45° avec queue droite, hauteur d'outil de 20 mm x largeur de 20 mm x longueur de 125 mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSDNN 2020 K 12
Product Number6757038
Product FamilyEXT PSDNN

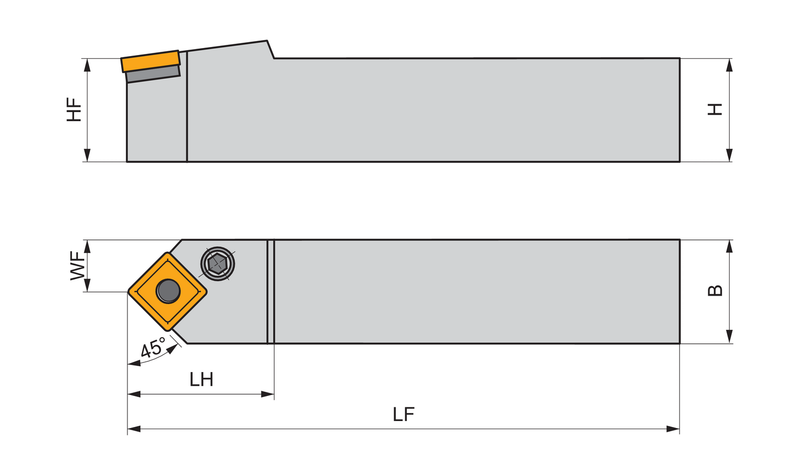

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757038
EAN3603602924049
File Type Download
PSDNN 2020 K 12 — 3D Model STP Download
PSDNN 2020 K 12 — 2D Model DXF Download
PSDNN 2020 K 12 — Line Drawing PDF Download
