PSDNN 3232 P 15
PSDNN 3232 P 15
PSDNN 3232 P 15

PSDNN 3232 P 15

UGC DOR6757040
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

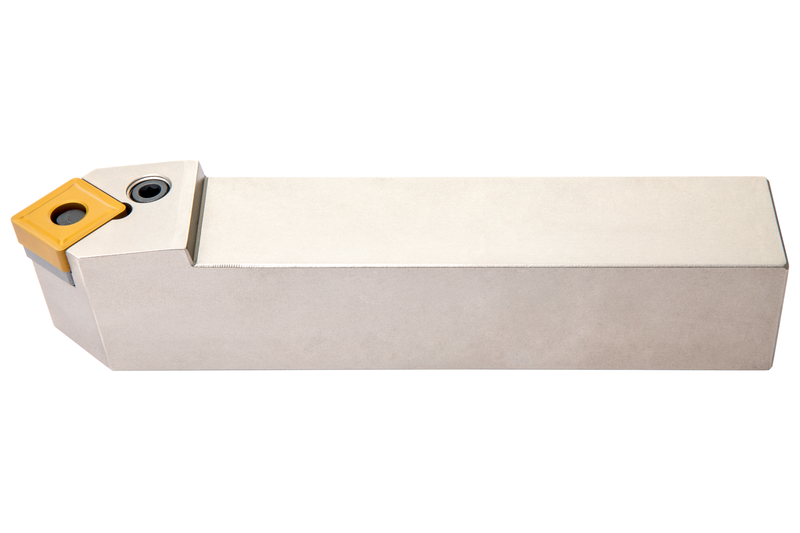

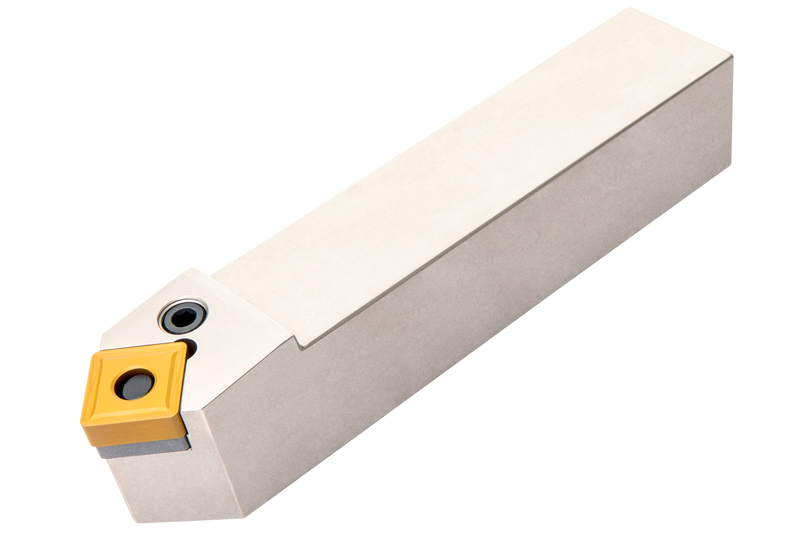

Porte-outil à levier pour plaquette carrée négative avec un diamètre de cercle inscrit de 15,875 mm, 6,35 mm d'épaisseur (désignation ISO SN.. 1506..), main neutre, coupe latérale à 45° avec queue droite, 32 mm de hauteur d'outil x 32 mm de largeur x 170 mm de long pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSDNN 3232 P 15
Product Number6757040
Product FamilyPSDNN EXT

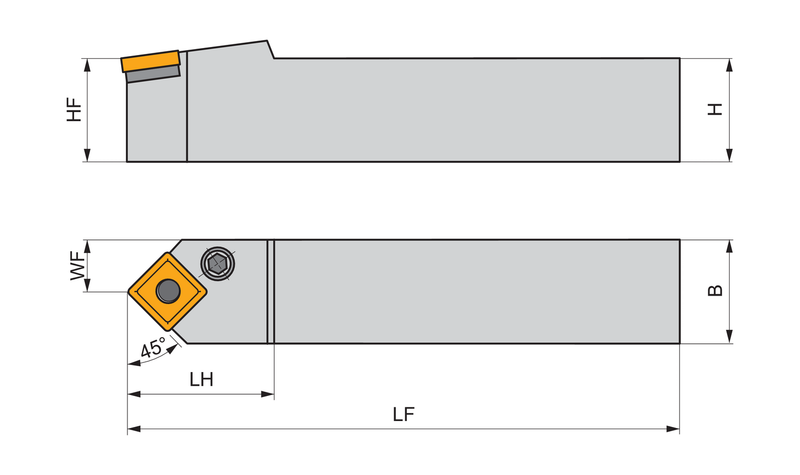

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757040
EAN3603602924063
File Type Download
PSDNN 3232 P 15 — 3D Model STP Download
PSDNN 3232 P 15 — 2D Model DXF Download
PSDNN 3232 P 15 — Line Drawing PDF Download
