PCBNR 3232 P 16
PCBNR 3232 P 16
PCBNR 3232 P 16

PCBNR 3232 P 16

UGC DOR6757041
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

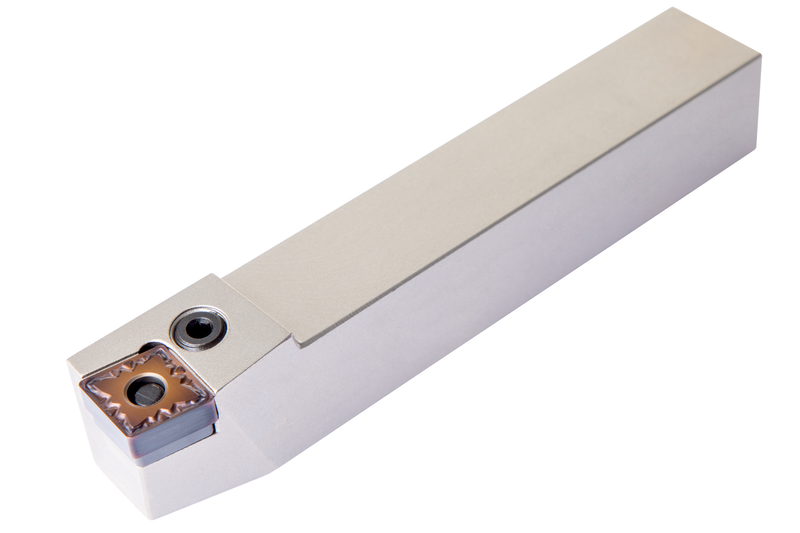

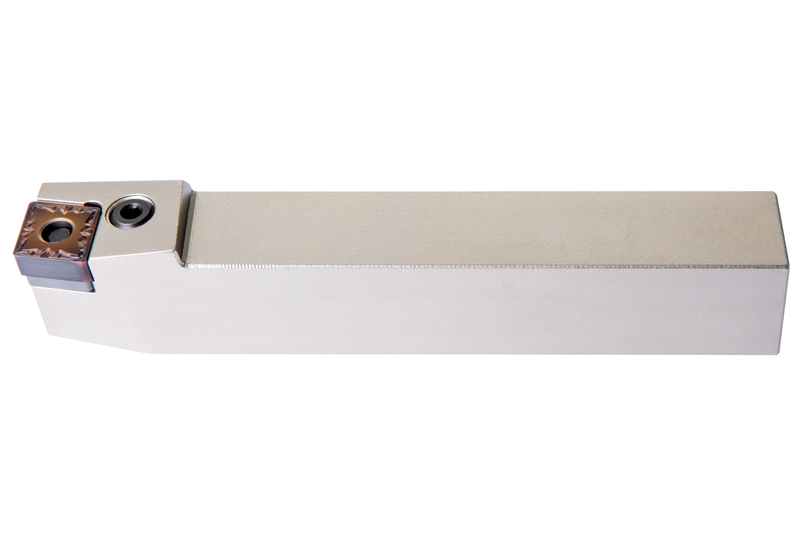

Outil de tournage à levier pour plaquette négative rhomboïde à 80° avec un diamètre de cercle inscrit de 15,575mm, 6,35mm d'épaisseur (désignation ISO CN.. 1606..), coupe latérale à droite à 75° avec queue droite, hauteur d'outil 32mm x largeur 32mm x longueur 170mm pour tournage conique et tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PCBNR 3232 P 16
Product Number6757041
Product FamilyPCBN(DR) EXT

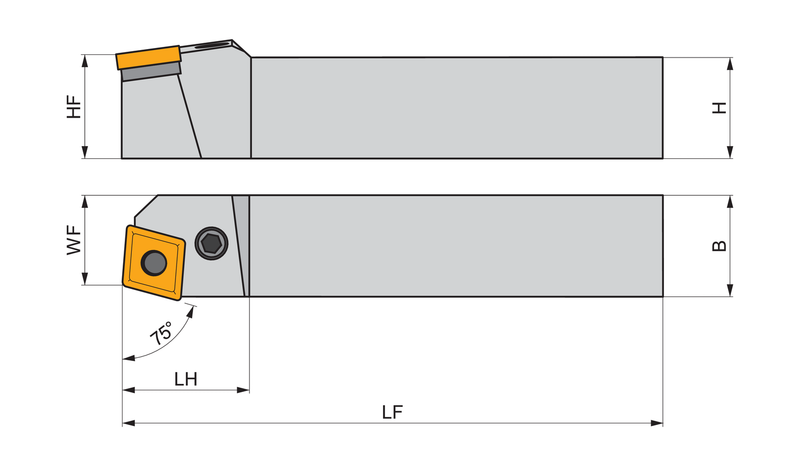

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757041
EAN3603602924070
File Type Download
PCBNR 3232 P 16 — 3D Model STP Download
PCBNR 3232 P 16 — 2D Model DXF Download
PCBNR 3232 P 16 — Line Drawing PDF Download
