PDNNR 2525 M 15
PDNNR 2525 M 15
PDNNR 2525 M 15

PDNNR 2525 M 15

UGC DOR6757044
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

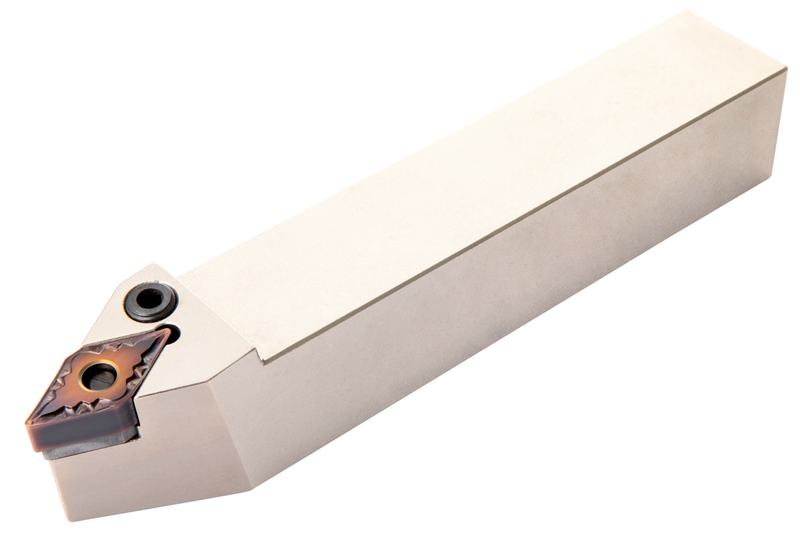

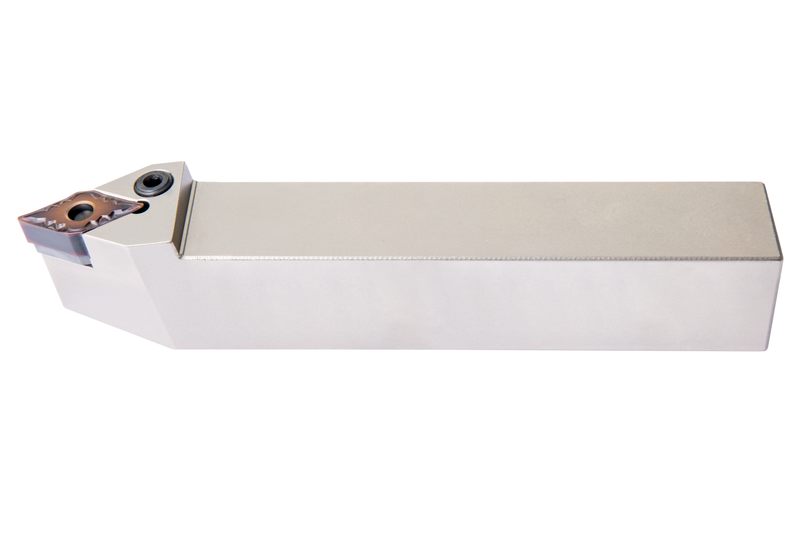

Outil de tournage à levier pour le maintien d'un insert négatif rhomboïde à 55° avec un cercle inscrit de 12,7 mm de diamètre et de 6,35 mm d'épaisseur (désignation ISO DN.. 1506.. ), coupe latérale droite de 62°30' avec queue droite, hauteur d'outil 25 mm x largeur 25 mm x longueur 150 mm pour le tournage de reproduction unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDNNR 2525 M 15
Product Number6757044
Product FamilyPDNN(RL) EXT

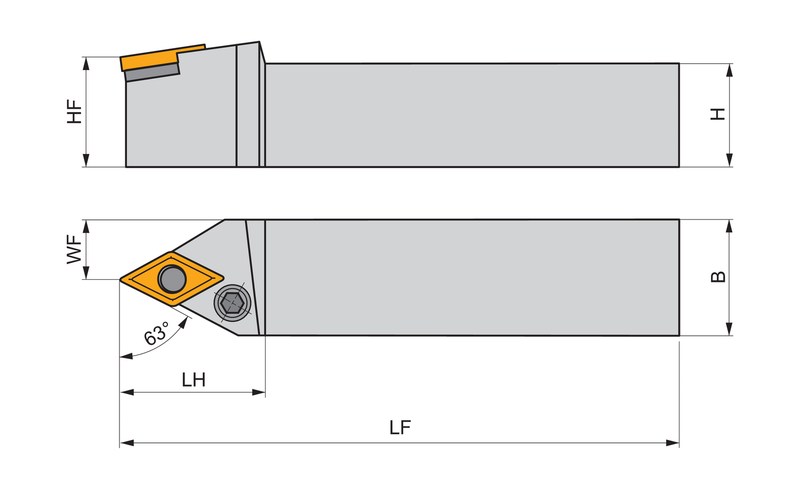

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6757044
EAN3603602924100
File Type Download
PDNNR 2525 M 15 — 3D Model STP Download
PDNNR 2525 M 15 — 2D Model DXF Download
PDNNR 2525 M 15 — Line Drawing PDF Download
