PRSNR 2525 M 12
PRSNR 2525 M 12
PRSNR 2525 M 12

PRSNR 2525 M 12

UGC DOR6757046
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

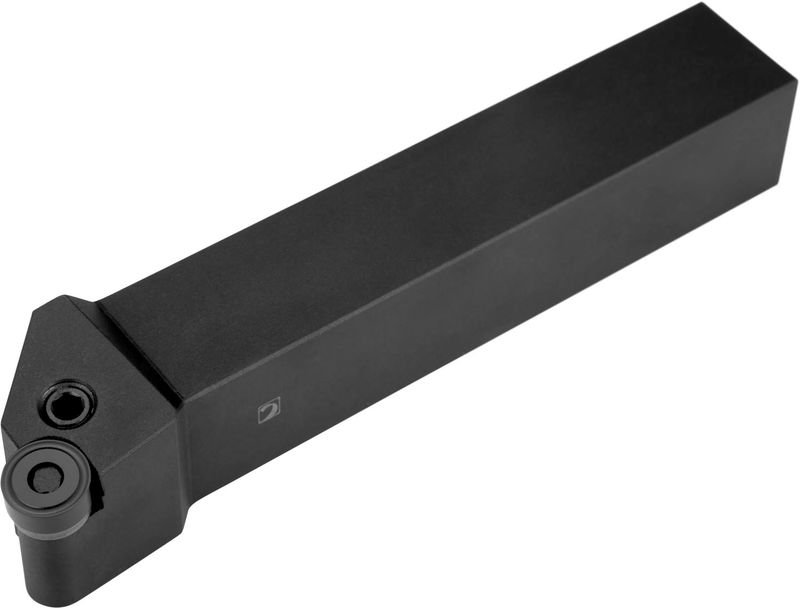

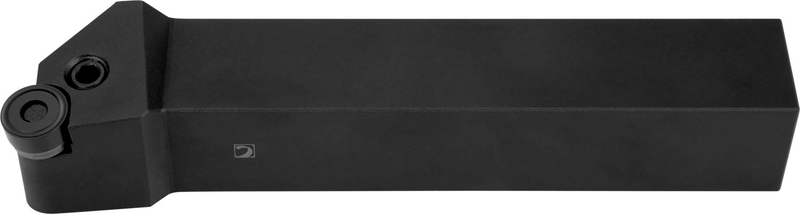

Outil de tournage à levier pour plaquette ronde négative de 12,7 mm de diamètre et 4,76 mm d'épaisseur (désignation ISO RN.. 120400), coupe à droite avec un corps déporté, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le tournage conique, le dressage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PRSNR 2525 M 12
Product Number6757046
Product FamilyPRSN(RL) EXT

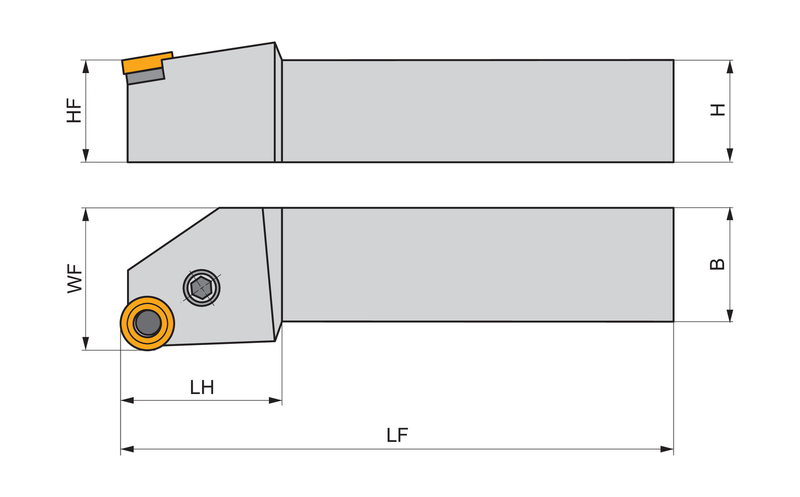

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757046
EAN3603602924124
File Type Download
PRSNR 2525 M 12 — 3D Model STP Download
PRSNR 2525 M 12 — 2D Model DXF Download
PRSNR 2525 M 12 — Line Drawing PDF Download
