SSKCR 10 CA-09
SSKCR 10 CA-09
SSKCR 10 CA-09

SSKCR 10 CA-09

UGC DOR6757054
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$169.00 CAD - $169.00 CAD
$169.00 CAD
$169.00 CAD - $169.00 CAD
$169.00 CAD

Vendu en lots de : 1

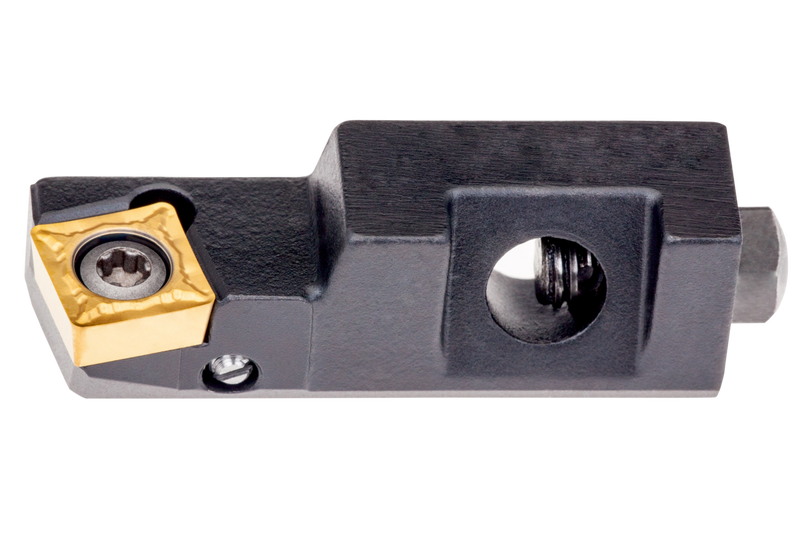

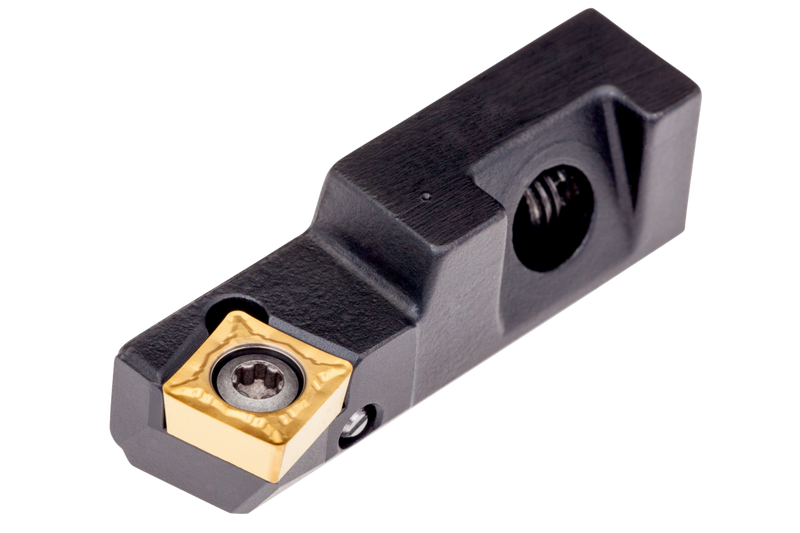

Cartouche de tournage ISO avec serrage à vis pour plaquette carrée positive avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 3,97 mm (désignation ISO SC.. 09T3..), conformément à la norme DIN 4985, coupe à droite à 75° avec une queue déportée pour le surfaçage sans épaulement ainsi que l'alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SSKCR 10 CA-09
Product Number6757054
Product FamilySSCC(RL) 10 CA
Dimensions
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757054
EAN3603602924209
File Type Download
SSKCR 10 CA-09 — 3D Model STP Download

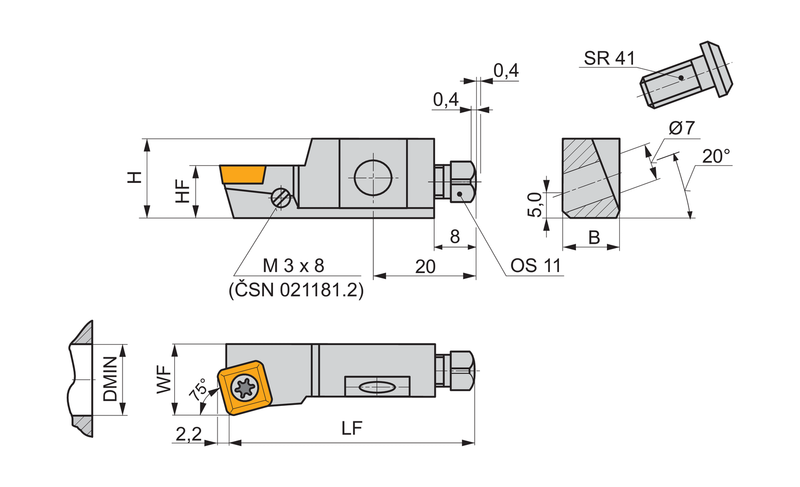

SSKCR 10 CA-09 — Line Drawing PDF Download
