PTFNL 2525 M 22
PTFNL 2525 M 22
PTFNL 2525 M 22

PTFNL 2525 M 22

UGC DOR6757061
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

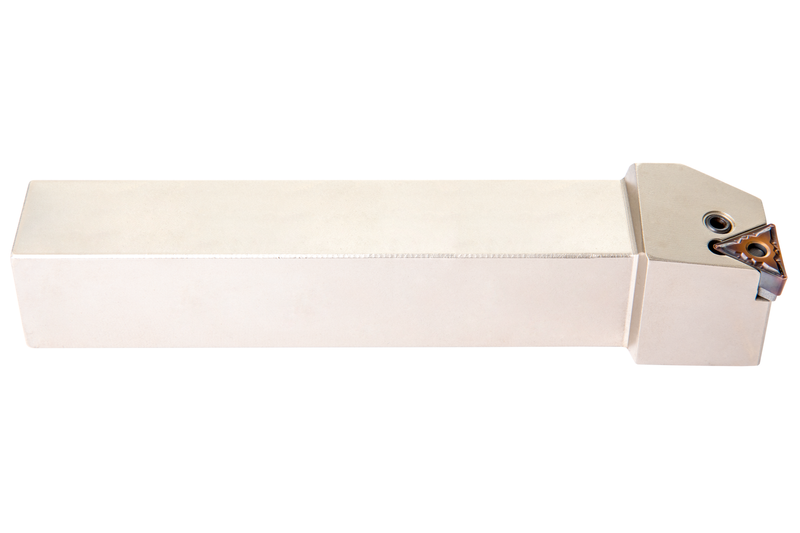

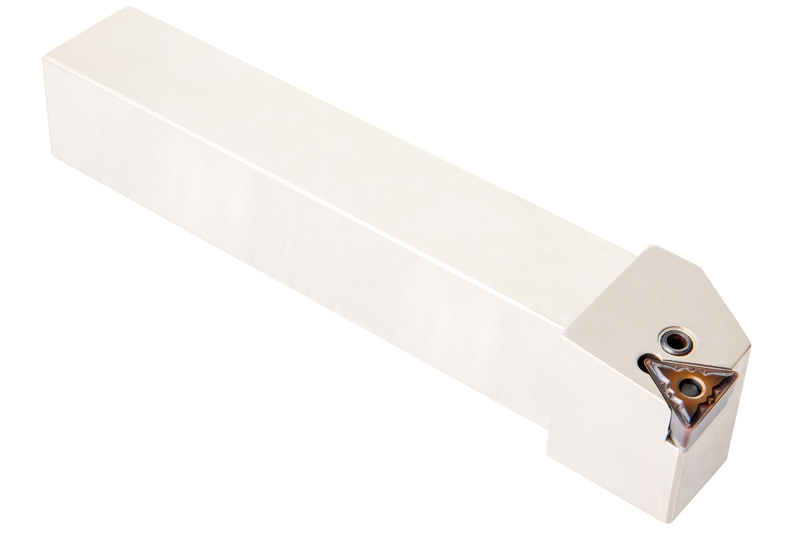

Outil de chariotage à levier pour plaquette négative triangulaire de diamètre de cercle inscrit de 12,7 mm, épaisseur 4,76 mm (désignation ISO TN.. 2204.. ), coupe à 90° à gauche avec un corps déporté, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le chariotage en bout sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PTFNL 2525 M 22
Product Number6757061
Product FamilyPTFN(RL) EXT

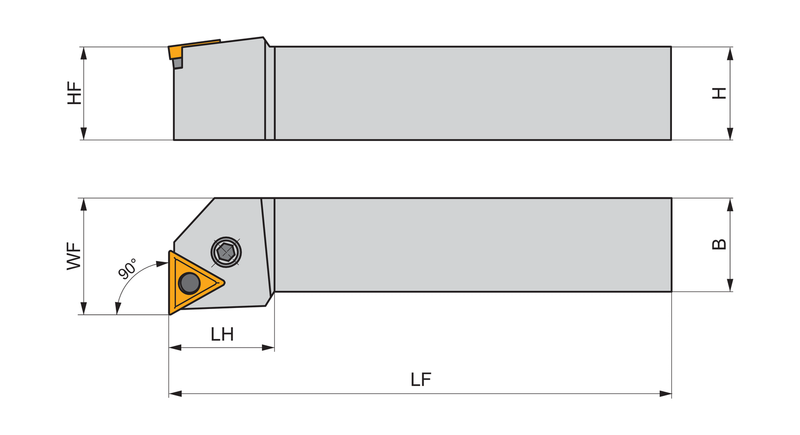

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757061
EAN3603602924278
File Type Download
PTFNL 2525 M 22 — 3D Model STP Download
PTFNL 2525 M 22 — 2D Model DXF Download
PTFNL 2525 M 22 — Line Drawing PDF Download
