PSKNL 3232 P 19
PSKNL 3232 P 19
PSKNL 3232 P 19

PSKNL 3232 P 19

UGC DOR6757065
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

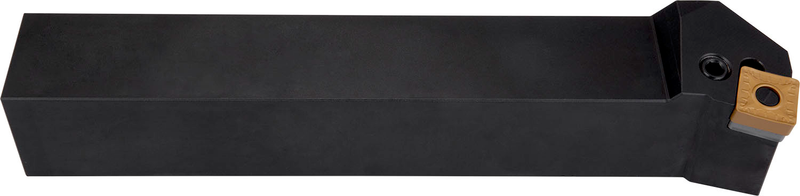

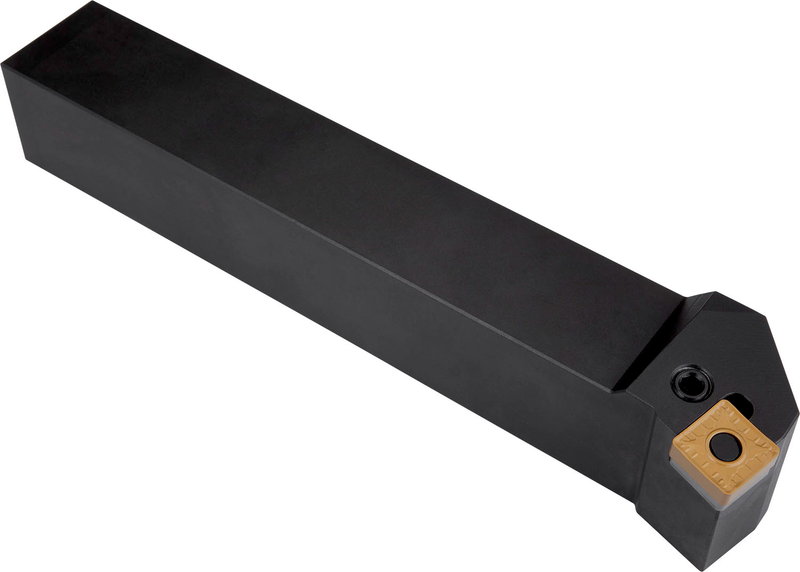

Outil à levier pour insert carré négatif avec un diamètre de cercle inscrit de 19,05 mm, 6,35 mm d'épaisseur (désignation ISO SN.. 1906.. ), coupe à 75° à gauche avec queue déportée, hauteur d'outil de 32 mm x largeur de 32 mm x longueur de 170 mm pour chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSKNL 3232 P 19
Product Number6757065
Product FamilyPSKN(RL) EXT

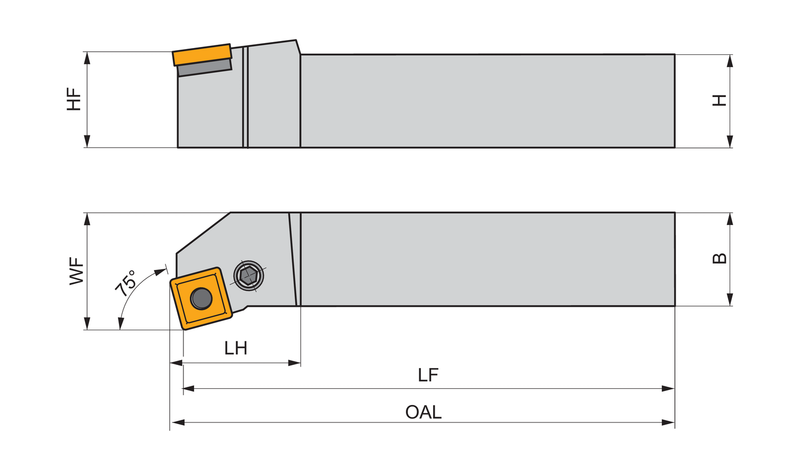

Dimensions
Overall Length — in (OAL)6.874"
Overall Length — mm (OAL)174.6 mm
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757065
EAN3603602924315
File Type Download
PSKNL 3232 P 19 — 3D Model STP Download
PSKNL 3232 P 19 — 2D Model DXF Download
PSKNL 3232 P 19 — Line Drawing PDF Download
