PSSNL 2525 M 12
PSSNL 2525 M 12
PSSNL 2525 M 12

PSSNL 2525 M 12

UGC DOR6757066
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

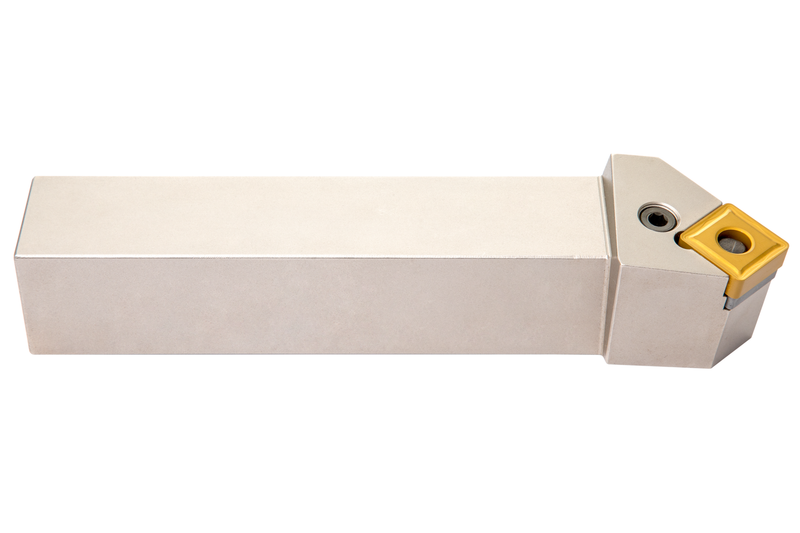

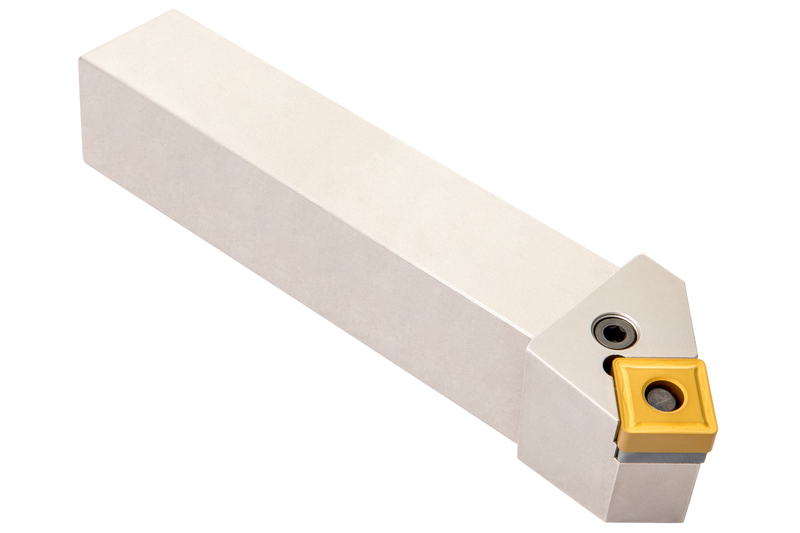

Porte-outil à levier pour plaquette carrée négative, avec un diamètre de cercle inscrit de 12,7 mm, épaisseur de 4,76 mm (désignation ISO SN... 1204...), coupe latérale gauche à 45° avec corps déporté, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le chanfreinage, le tournage conique, le copiage monodirectionnel et multidirectionnel, le dressage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSSNL 2525 M 12
Product Number6757066
Product FamilyPSSN(RL) EXT

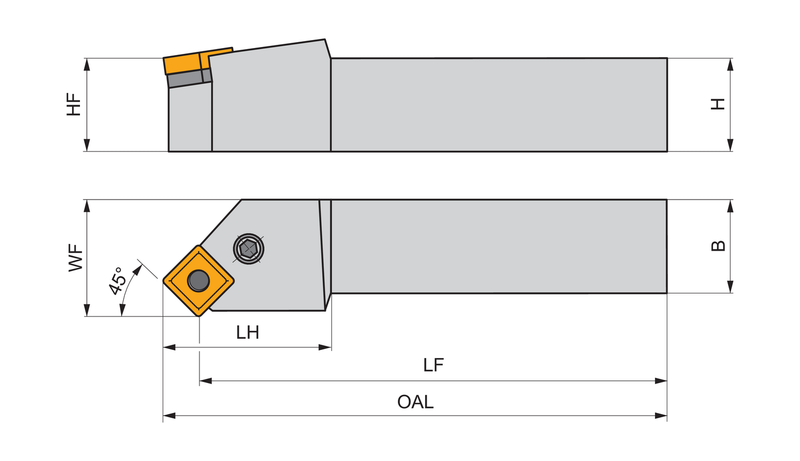

Dimensions
Overall Length — in (OAL)6.232"
Overall Length — mm (OAL)158.3 mm
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757066
EAN3603602924322
File Type Download
PSSNL 2525 M 12 — 3D Model STP Download
PSSNL 2525 M 12 — 2D Model DXF Download
PSSNL 2525 M 12 — Line Drawing PDF Download
