PSSNL 3225 P 15
PSSNL 3225 P 15
PSSNL 3225 P 15

PSSNL 3225 P 15

UGC DOR6757067
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

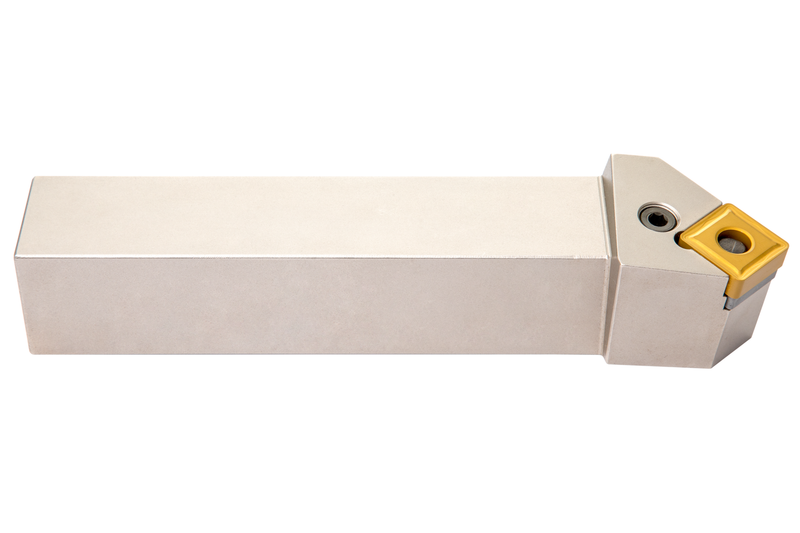

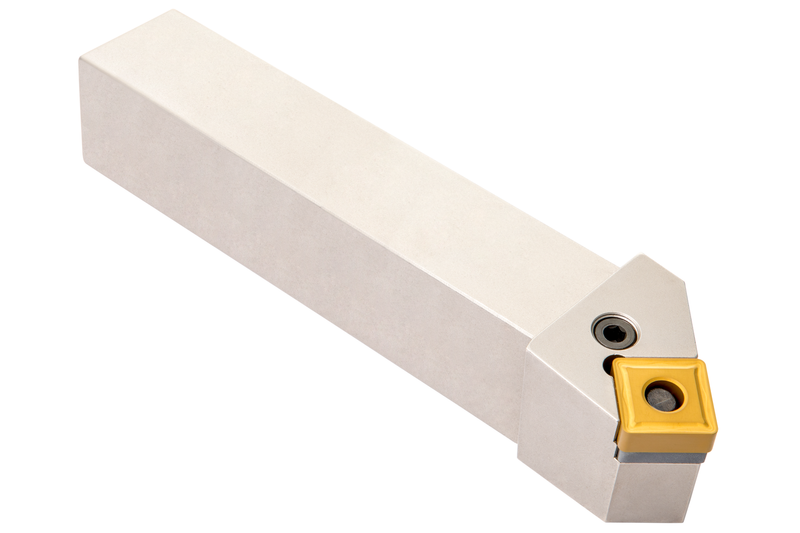

Outil de tournage à levier pour le maintien d'un insert négatif carré d'un diamètre de cercle inscrit de 15,875 mm, d'une épaisseur de 6,35 mm (désignation ISO SN.. 1506..), coupe latérale à gauche de 45° avec une tige décalée, hauteur d'outil de 32 mm x largeur de 25 mm x longueur de 170 mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel, le dressage sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSSNL 3225 P 15
Product Number6757067
Product FamilyPSSN(RL) EXT

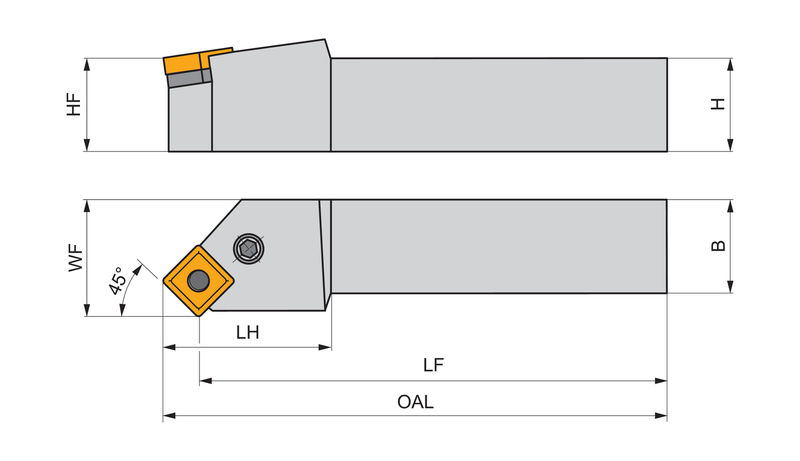

Dimensions
Overall Length — in (OAL)7.094"
Overall Length — mm (OAL)180.2 mm
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757067
EAN3603602924339
File Type Download
PSSNL 3225 P 15 — 3D Model STP Download
PSSNL 3225 P 15 — 2D Model DXF Download
PSSNL 3225 P 15 — Line Drawing PDF Download
