S20S-SSSCR 09
S20S-SSSCR 09
S20S-SSSCR 09

S20S-SSSCR 09

UGC DOR6757069
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$244.00 CAD - $244.00 CAD
$244.00 CAD
$244.00 CAD - $244.00 CAD
$244.00 CAD

Vendu en lots de : 1

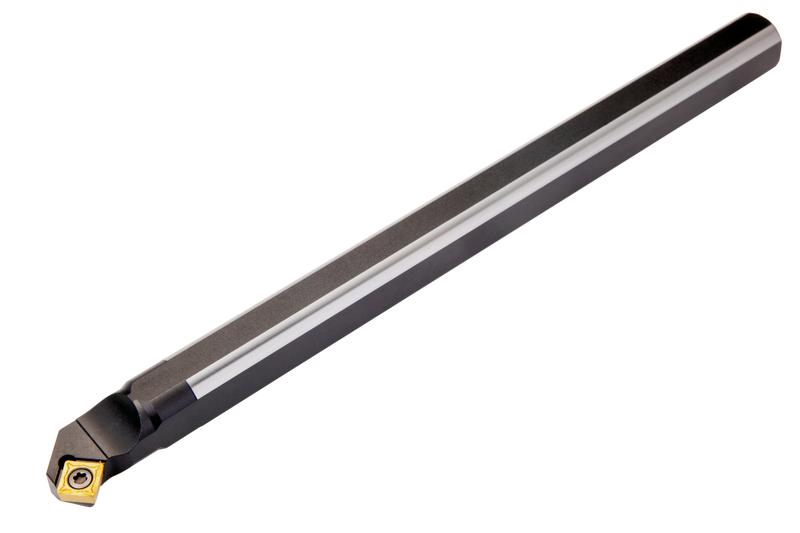

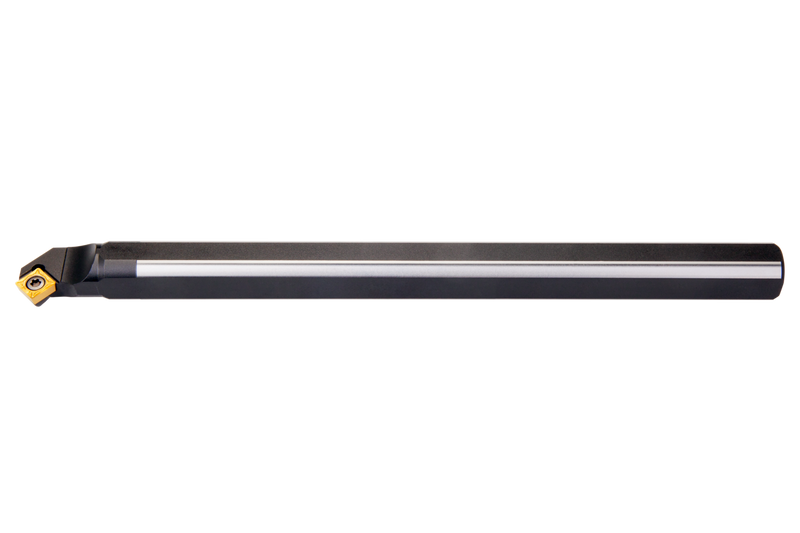

Alésoir à barreau de chariotage à serrage par vis pour plaquette carrée positive d'un diamètre de cercle inscrit de 9,525 mm, de 3,97 mm d'épaisseur (désignation ISO SC.. 09T3.. ), coupe à droite à 45° avec corps déporté, en acier sans trou d'arrosage, de 20 mm de diamètre x 250 mm de long pour le chanfreinage intérieur, l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et le chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S20S-SSSCR 09
Product Number6757069
Product FamilySSSC(RL) INT

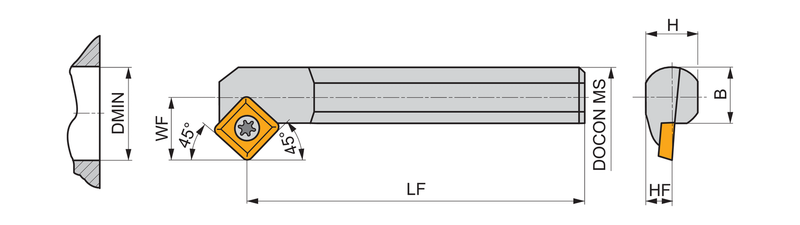

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757069
EAN3603602924353
File Type Download
S20S-SSSCR 09 — 3D Model STP Download
S20S-SSSCR 09 — Line Drawing PDF Download
