PTGNL 1616 H 16
PTGNL 1616 H 16
PTGNL 1616 H 16

PTGNL 1616 H 16

UGC DOR6757074
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$140.00 CAD - $140.00 CAD
$140.00 CAD
$140.00 CAD - $140.00 CAD
$140.00 CAD

Vendu en lots de : 1

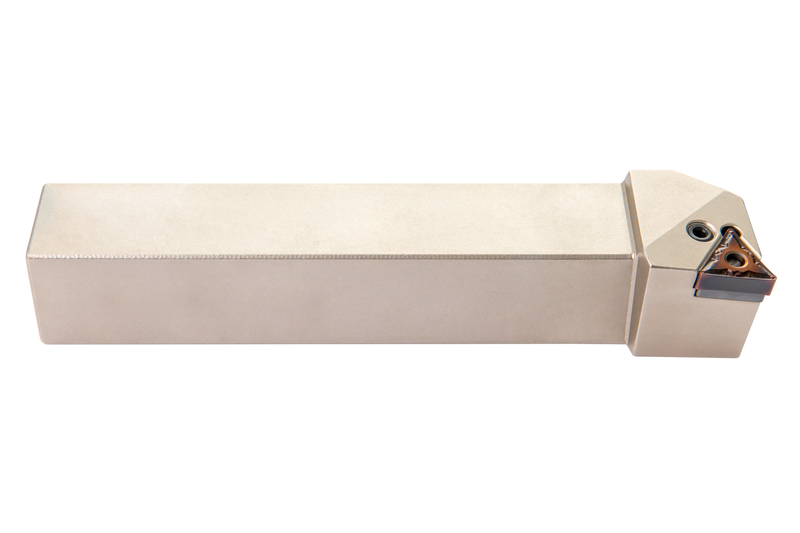

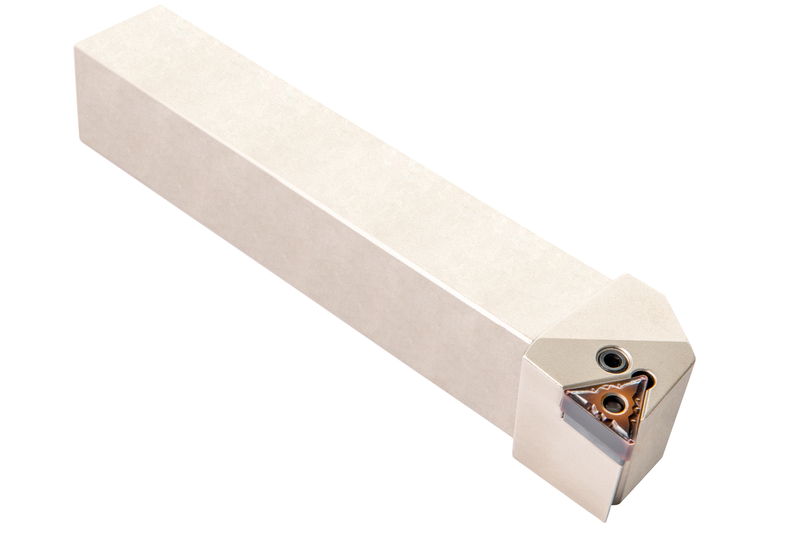

Porte-outil à levier pour plaquette négative triangulaire de diamètre de cercle inscrit de 9,525 mm, de 4,76 mm d'épaisseur (désignation ISO TN.. 1604..), à coupe latérale gauche de 90° avec queue déportée, hauteur de l'outil 16 mm x largeur 16 mm x longueur 100 mm pour le tournage conique et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PTGNL 1616 H 16
Product Number6757074
Product FamilyPTGN(RL) EXT

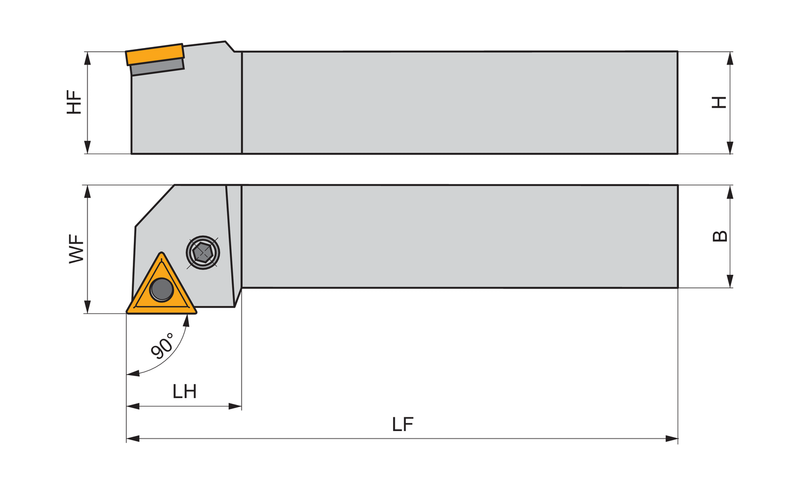

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757074
EAN3603602924407
File Type Download
PTGNL 1616 H 16 — 3D Model STP Download
PTGNL 1616 H 16 — 2D Model DXF Download
PTGNL 1616 H 16 — Line Drawing PDF Download
