PDXNR 3225 P 15
PDXNR 3225 P 15
PDXNR 3225 P 15

PDXNR 3225 P 15

UGC DOR6757082
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

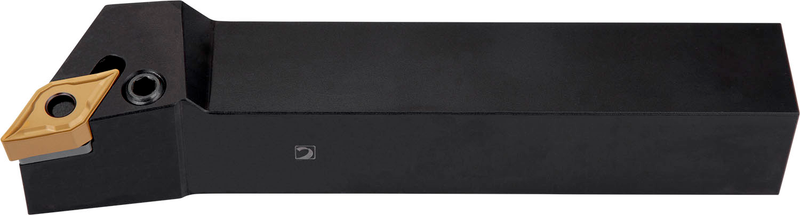

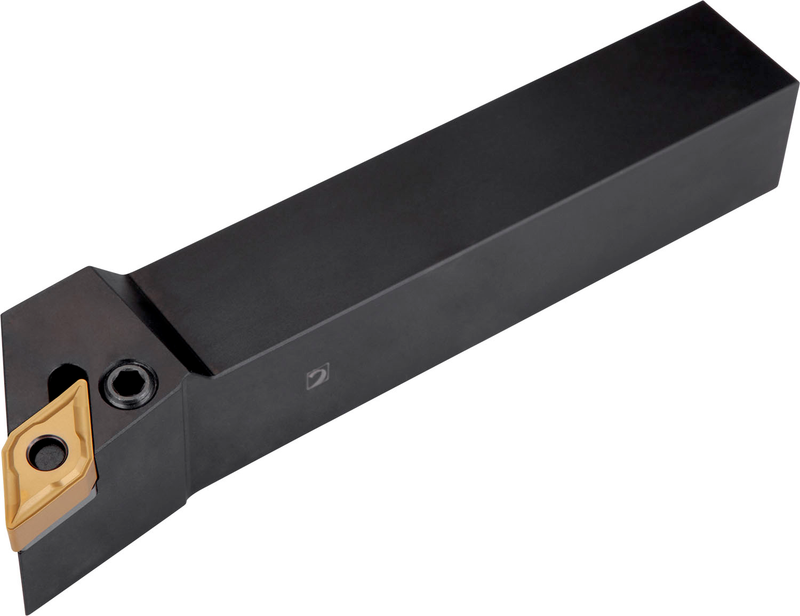

Outil de tournage à levier pour plaquette négative de forme rhombe 55° avec un diamètre de cercle inscrit de 12,7 mm, 6,35 mm d'épaisseur (désignation ISO DN... 1506...), style d'outil spécial à droite, hauteur d'outil de 32 mm x largeur de 25 mm x 170 mm de long pour le tournage conique, le tournage par copiage simple et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDXNR 3225 P 15
Product Number6757082
Product FamilyPDXN(RL) EXT

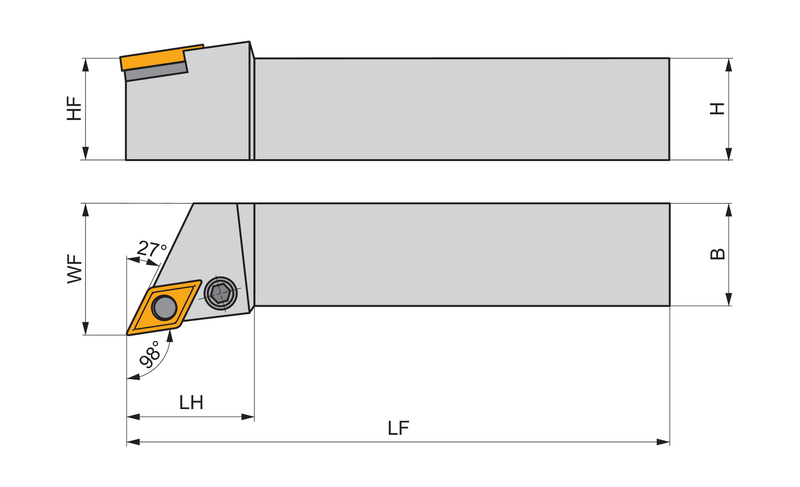

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757082
EAN3603602924483
File Type Download
PDXNR 3225 P 15 — 3D Model STP Download
PDXNR 3225 P 15 — 2D Model DXF Download
PDXNR 3225 P 15 — Line Drawing PDF Download
