PDNNL 2525 M 15
PDNNL 2525 M 15
PDNNL 2525 M 15

PDNNL 2525 M 15

UGC DOR6757086
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

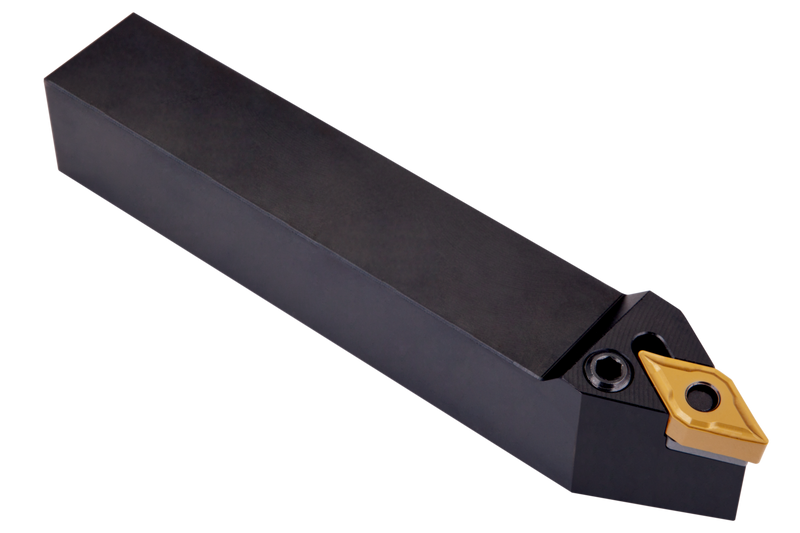

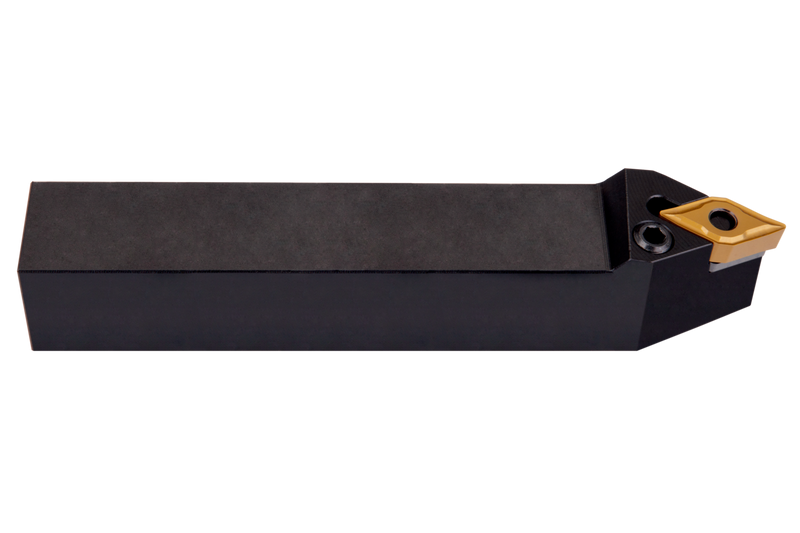

Porte-outil à levier pour plaquette négative rhomboïdale à 55° avec un diamètre de cercle inscrit de 12,7 mm, 6,35 mm d'épaisseur (désignation ISO DN.. 1506.. ), coupe latérale à gauche à 62°30' avec queue droite, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le copiage simple et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDNNL 2525 M 15
Product Number6757086
Product FamilyPDNN(RL) EXT

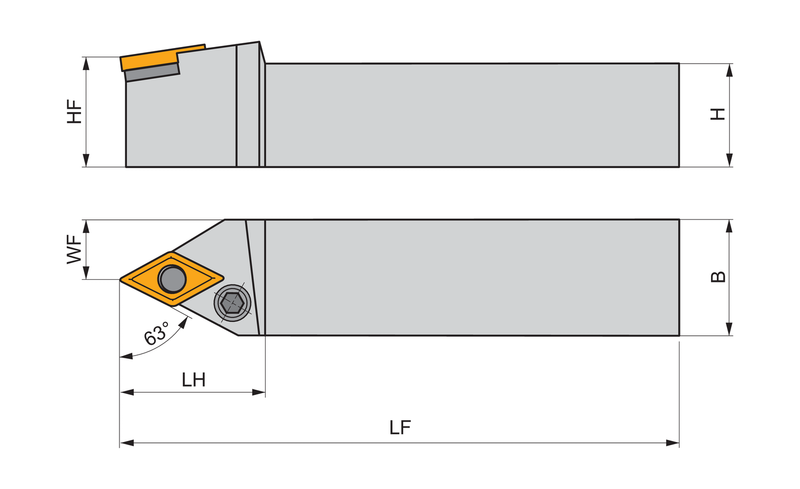

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757086
EAN3603602924520
File Type Download
PDNNL 2525 M 15 — 3D Model STP Download
PDNNL 2525 M 15 — 2D Model DXF Download
PDNNL 2525 M 15 — Line Drawing PDF Download
