S20S-SCLCR 09
S20S-SCLCR 09
S20S-SCLCR 09

S20S-SCLCR 09

UGC DOR6757089
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$244.00 CAD - $244.00 CAD
$244.00 CAD
$244.00 CAD - $244.00 CAD
$244.00 CAD

Vendu en lots de : 1

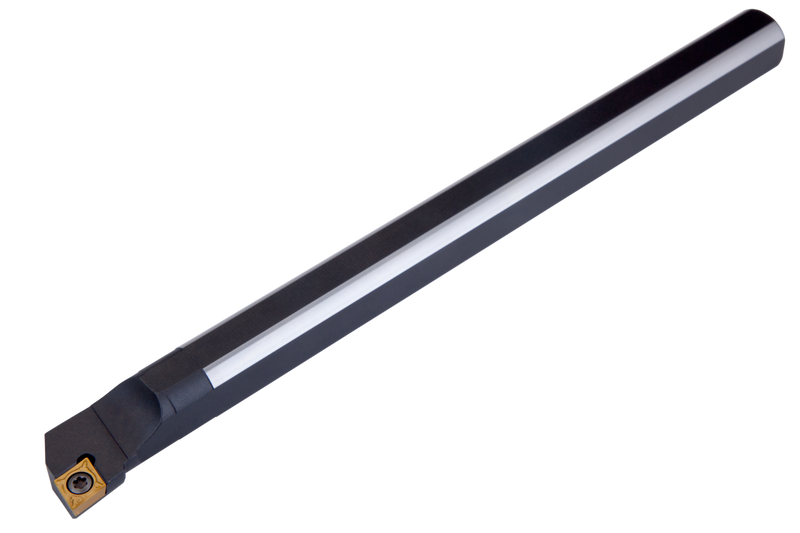

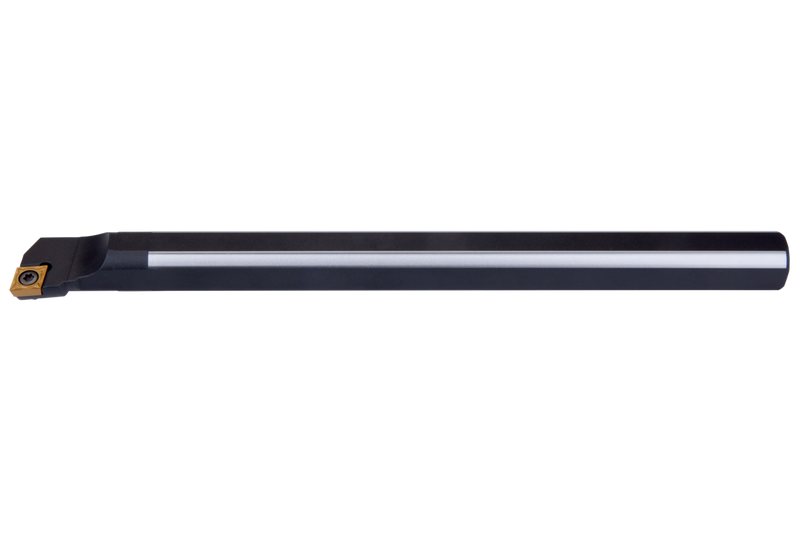

Barre d'alésage à fixation par vis pour plaquette positive rhomboïde à 80° avec un diamètre de cercle inscrit de 9,525mm, 3,97mm d'épaisseur (désignation ISO CC.. 09T3.. ), coupe à droite 95° latérale et frontale avec queue déportée, en acier sans trou d'arrosage, 20mm de diamètre x 250mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S20S-SCLCR 09
Product Number6757089
Product FamilyCSCP(RL) INT

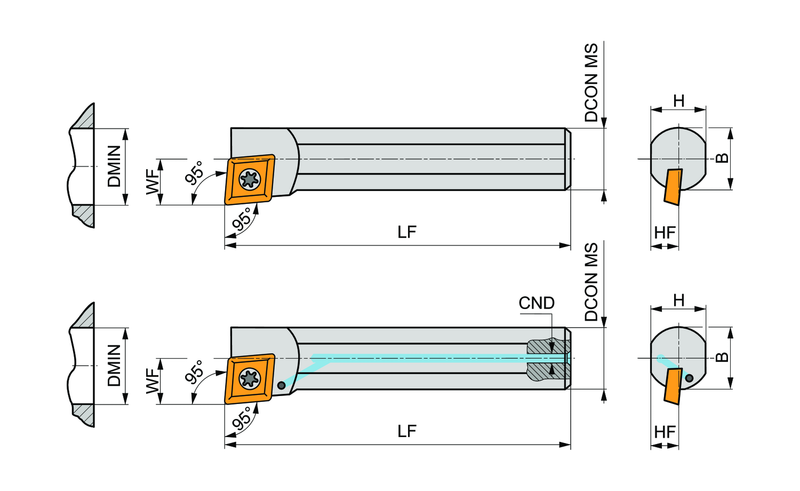

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757089
EAN3603602924551
File Type Download
S20S-SCLCR 09 — 3D Model STP Download
S20S-SCLCR 09 — Line Drawing PDF Download
