PDXNL 3225 P 15
PDXNL 3225 P 15
PDXNL 3225 P 15

PDXNL 3225 P 15

UGC DOR6757090
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

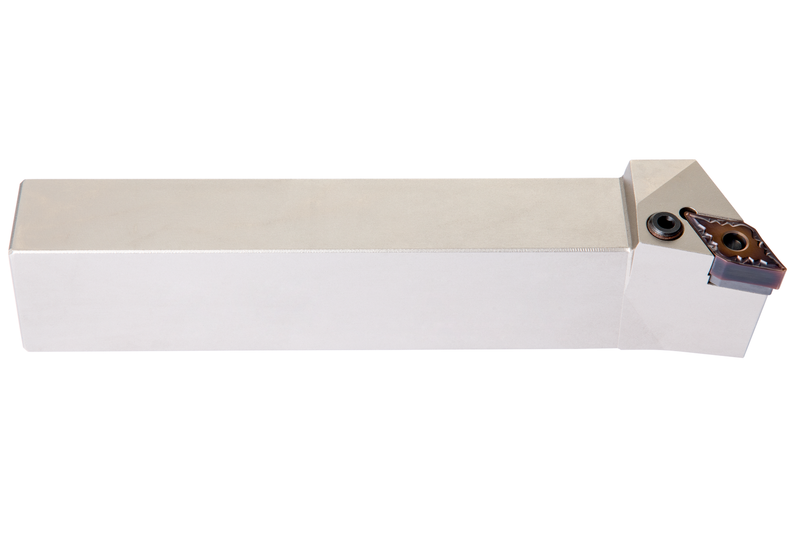

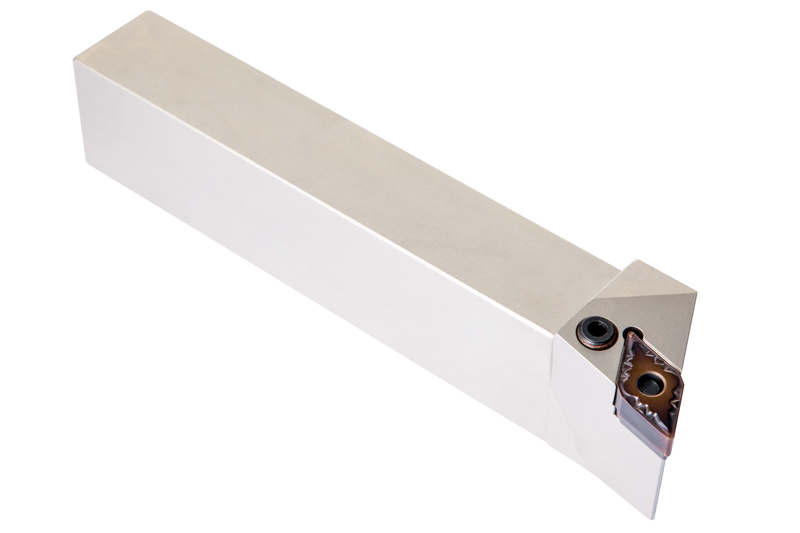

Porte-outil à levier pour plaquette négative de forme rhomboïdale à 55° avec un diamètre de cercle inscrit de 12,7 mm, de 6,35 mm d'épaisseur (désignation ISO DN.. 1506.. ), outil spécial à gauche, hauteur d'outil de 32 mm x 25 mm de largeur x 170 mm de long pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDXNL 3225 P 15
Product Number6757090
Product FamilyPDXN(RL) EXT

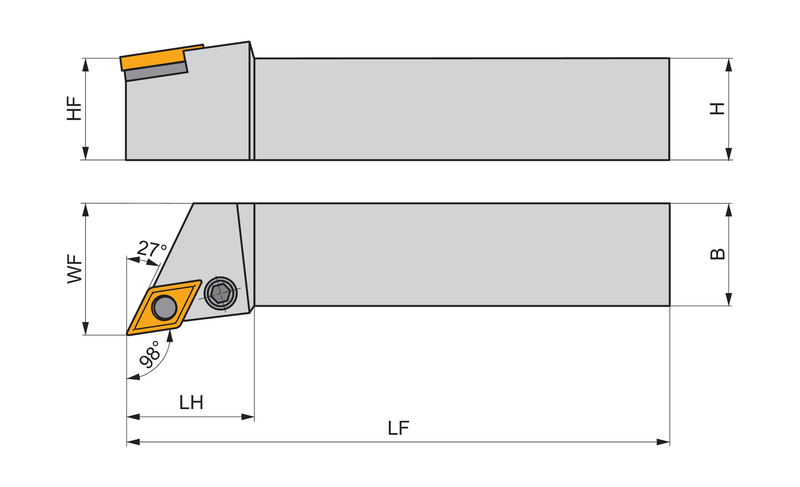

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757090
EAN3603602924568
File Type Download
PDXNL 3225 P 15 — 3D Model STP Download
PDXNL 3225 P 15 — 2D Model DXF Download
PDXNL 3225 P 15 — Line Drawing PDF Download
