S12K-STFCL 11
S12K-STFCL 11
S12K-STFCL 11

S12K-STFCL 11

UGC DOR6757091
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

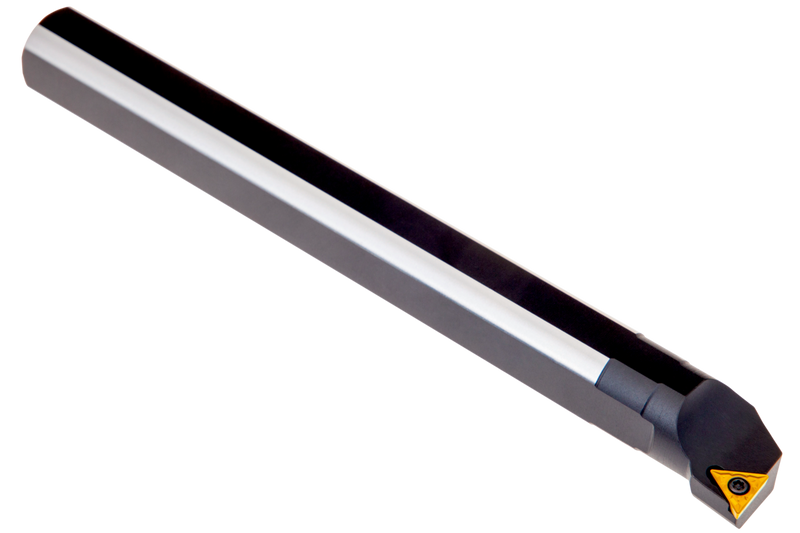

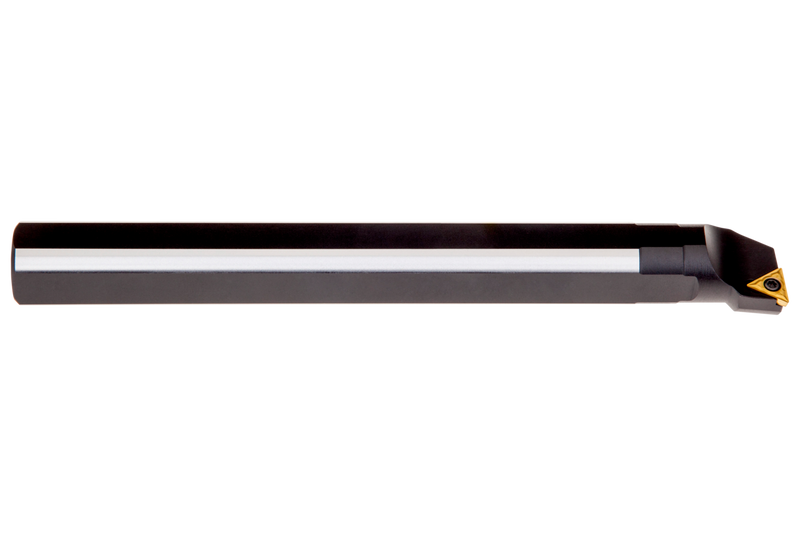

Alésoir à barreau de chariotage à vis pour l'insertion d'un plaquette triangulaire positive avec un diamètre de cercle inscrit de 6,35 mm et une épaisseur de 2,38 mm (désignation ISO TC.. 1102.. ), coupe à gauche 90° avec queue décalée, acier sans trou de refroidissement, 12 mm de diamètre x 125 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S12K-STFCL 11
Product Number6757091
Product FamilySTFC(RL) INT

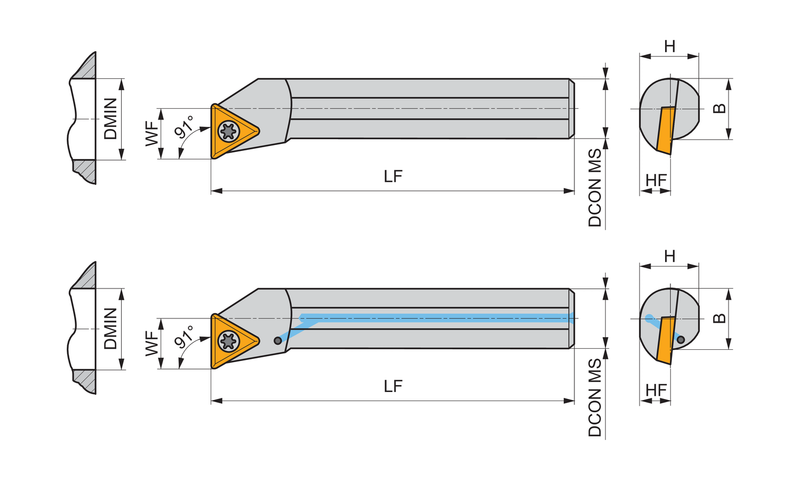

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Shank Height — mm (H)0.433 mm
Min. Bore Dia. — in (DMIN)0.63"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757091
EAN3603602924575
File Type Download
S12K-STFCL 11 — 3D Model STP Download
S12K-STFCL 11 — Line Drawing PDF Download
