S25T-SSSCL 09
S25T-SSSCL 09
S25T-SSSCL 09

S25T-SSSCL 09

UGC DOR6757094
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$279.00 CAD - $279.00 CAD
$279.00 CAD
$279.00 CAD - $279.00 CAD
$279.00 CAD

Vendu en lots de : 1

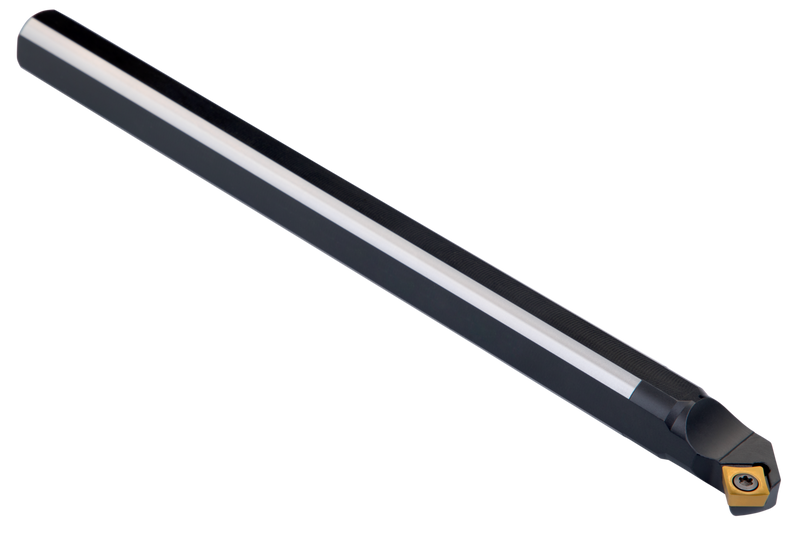

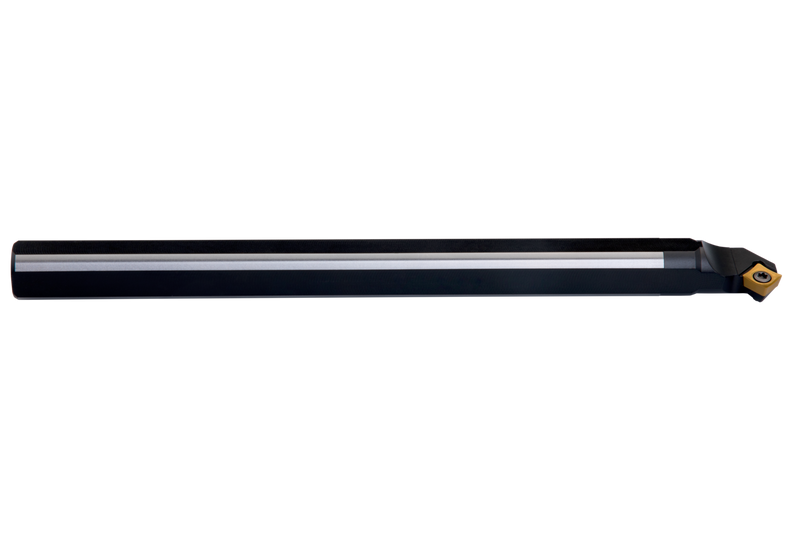

Barre d'alésage à bridage par vis pour plaquette carrée positive avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 3,97 mm (désignation ISO SC... 09T3...), à coupe à gauche à 45° avec corps déporté, en acier sans trou d'arrosage, de 25 mm de diamètre x 300 mm de long pour le chanfreinage interne, l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et le chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI)S25T-SSSCL 09
Product Name (ISO)S25T-SSSCL 09
Product Number6757094
Product FamilySSSC(RL) INT
Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757094
EAN3603602924605
File Type Download
S25T-SSSCL 09 — 3D Model STP Download

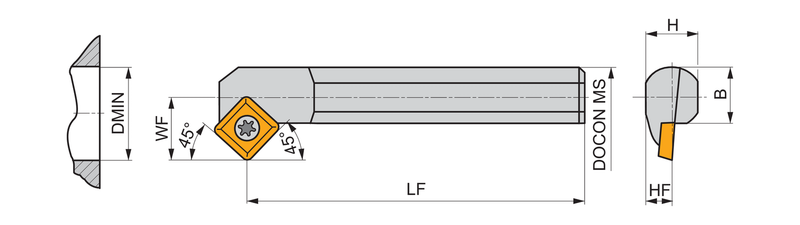

S25T-SSSCL 09 — Line Drawing PDF Download
