SCACL 0808 J 06
SCACL 0808 J 06
SCACL 0808 J 06

SCACL 0808 J 06

UGC DOR6757096
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.00 CAD - $151.00 CAD
$151.00 CAD
$151.00 CAD - $151.00 CAD
$151.00 CAD

Vendu en lots de : 1

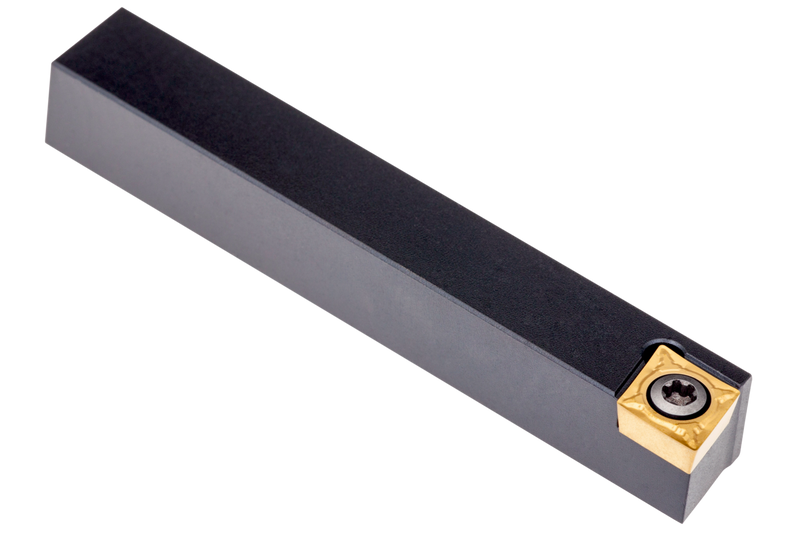

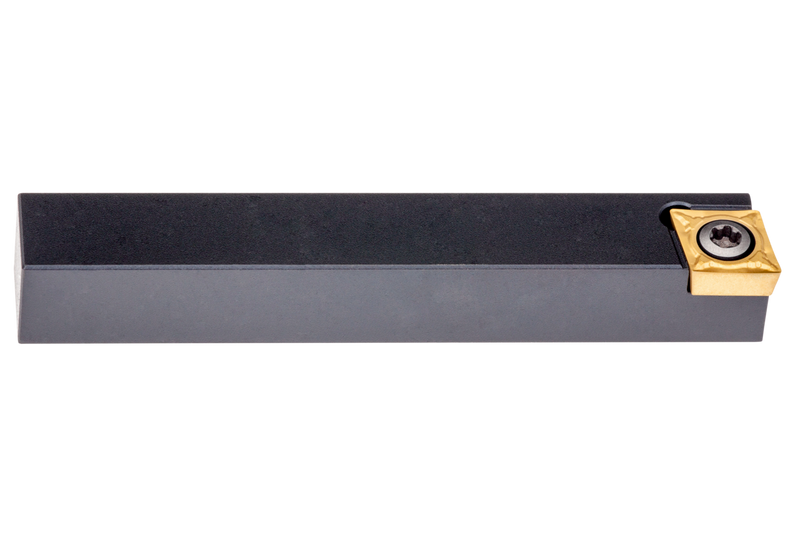

Outil de tournage à levier pour plaquette positive rhomboïde à 80° avec un cercle inscrit de 6,35 mm de diamètre et de 2,38 mm d'épaisseur (désignation ISO CC.. 0602..), coupe latérale à 90° à gauche avec queue droite, hauteur d'outil de 8 mm x largeur de 8 mm x 60 mm de long pour le chanfreinage, le tournage conique et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI)SCACL 0808 R 06
Product Name (ISO)SCACL 0808 D 06
Product Number6757096
Product FamilySCAC(RL) EXT

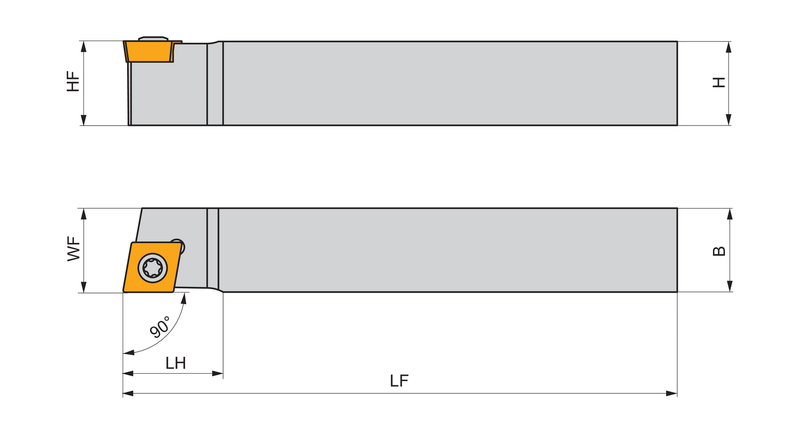

Dimensions
Functional Length — in (LF)2.362"
Functional Length — mm (LF)60.0 mm
Shank Height — mm (H)0.315 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757096
EAN3603602924629
File Type Download
SCACL 0808 J 06 — 3D Model STP Download
SCACL 0808 J 06 — Line Drawing PDF Download
