SRDCN 2020 K 08
SRDCN 2020 K 08
SRDCN 2020 K 08

SRDCN 2020 K 08

UGC DOR6757097
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$168.00 CAD - $168.00 CAD
$168.00 CAD
$168.00 CAD - $168.00 CAD
$168.00 CAD

Vendu en lots de : 1

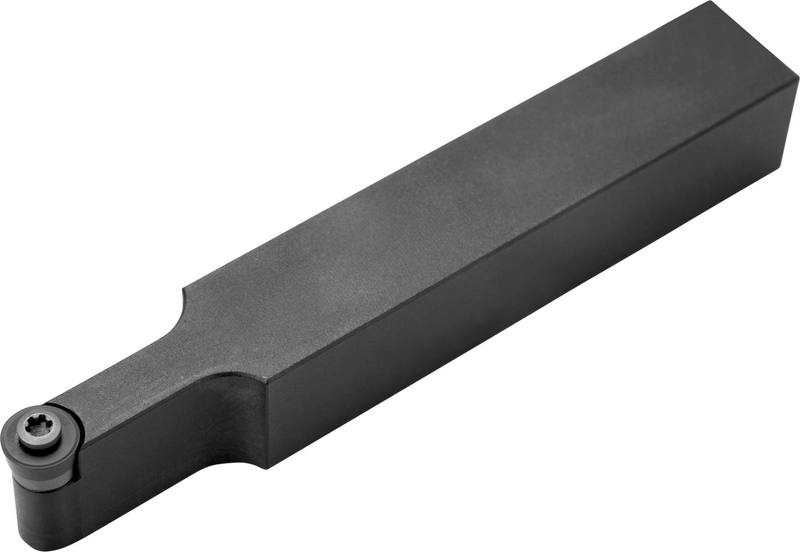

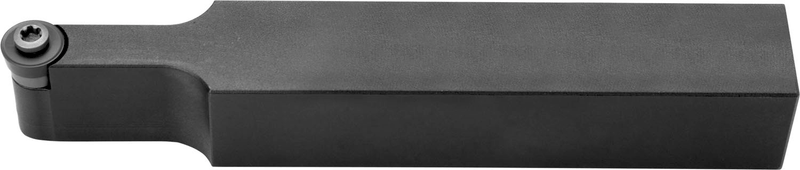

Outil de tournage à levier pour le maintien d'un insert rond positif de 8 mm de diamètre et de 3,18 mm d'épaisseur (désignation ISO RC.. 0803MO), pour tournage droitier et coupe en bout avec queue cylindrique, hauteur d'outil de 20 mm x largeur de 20 mm x 125 mm de long pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SRDCN 2020 K 08
Product Number6757097
Product FamilySRDCN EXT

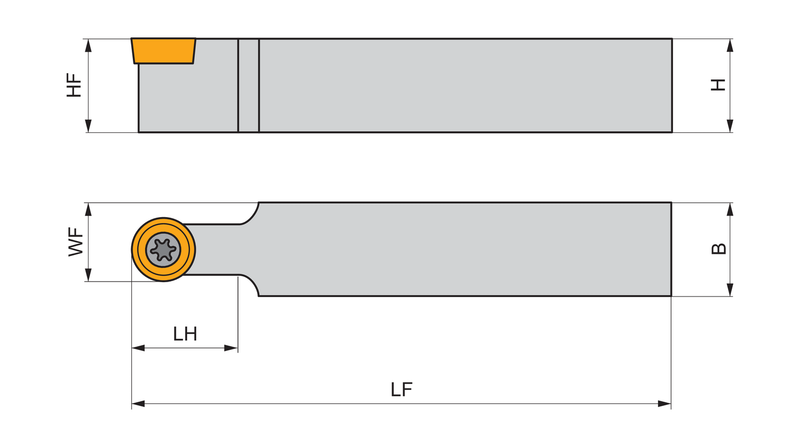

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757097
EAN3603602924636
File Type Download
SRDCN 2020 K 08 — 3D Model STP Download
SRDCN 2020 K 08 — Line Drawing PDF Download
