A25R-PCLNL 12
A25R-PCLNL 12
A25R-PCLNL 12

A25R-PCLNL 12

UGC DOR6757106
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$431.00 CAD - $431.00 CAD
$431.00 CAD
$431.00 CAD - $431.00 CAD
$431.00 CAD

Vendu en lots de : 1

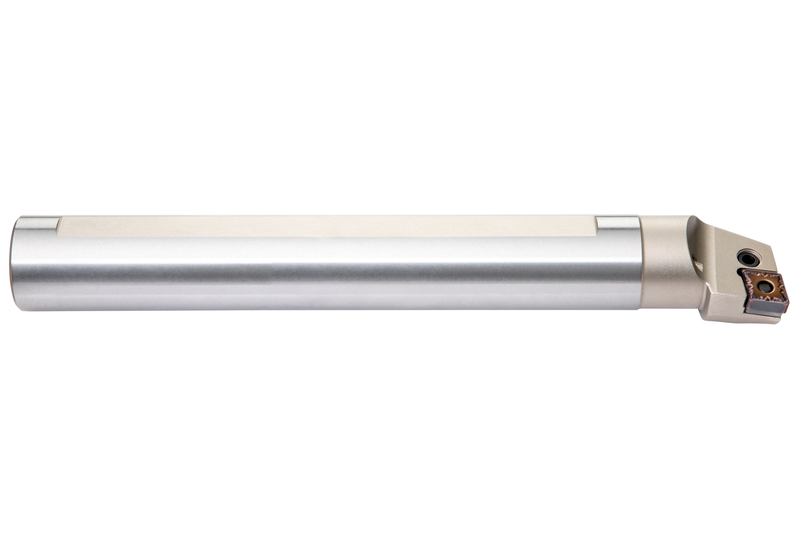

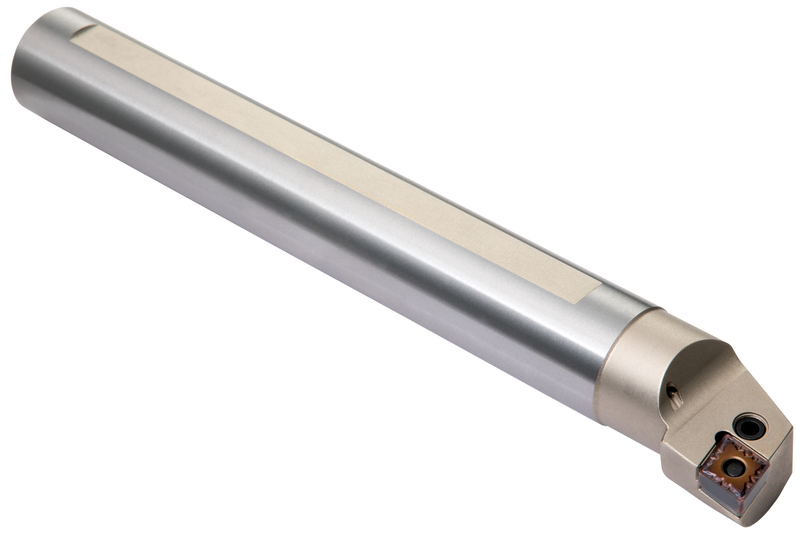

Barre d'alésage à levier pour insert négatif rhomboïde à 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO CN.. 1204.. ), coupe latérale et frontale à 95° à gauche avec queue déportée, acier avec trou d'arrosage, 25 mm de diamètre x 200 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25R-PCLNL 12
Product Number6757106
Product FamilyPCLN(RL) INT

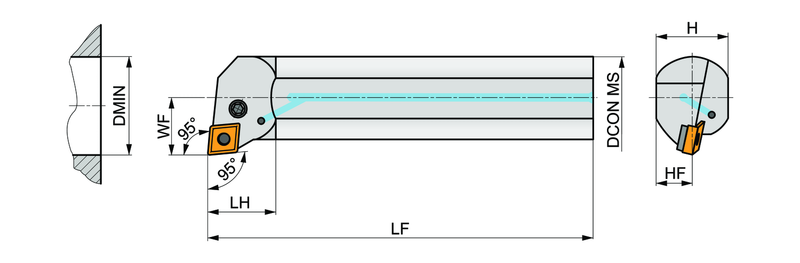

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.22"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6757106
EAN3603602924728
File Type Download
A25R-PCLNL 12 — 3D Model STP Download
A25R-PCLNL 12 — 2D Model DXF Download
A25R-PCLNL 12 — Line Drawing PDF Download
