A32S-PWLNR 0604
A32S-PWLNR 0604
A32S-PWLNR 0604

A32S-PWLNR 0604

UGC DOR6757111
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$446.00 CAD - $446.00 CAD
$446.00 CAD
$446.00 CAD - $446.00 CAD
$446.00 CAD

Vendu en lots de : 1

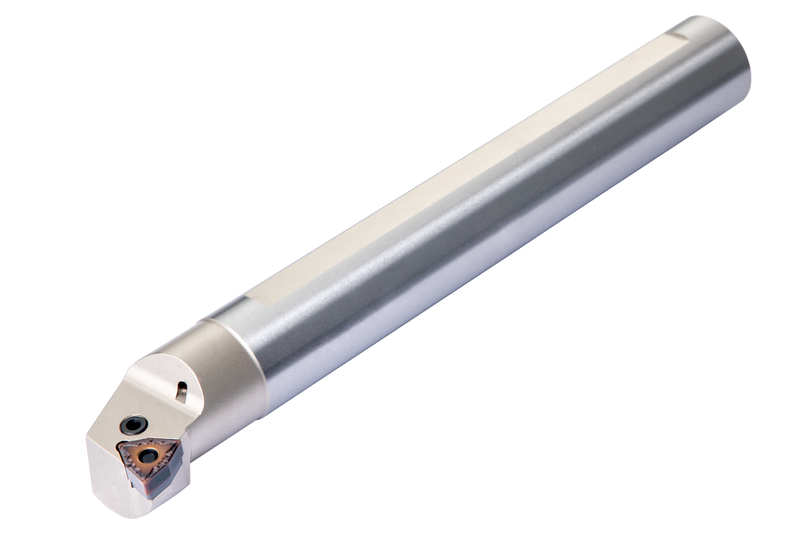

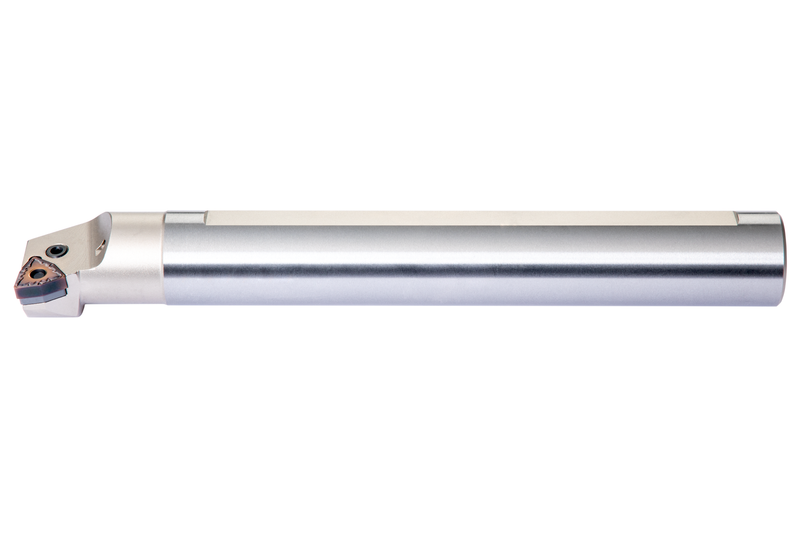

Porte-outil à levier pour plaquette négative trigon 80° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO WN.. 0604..), à droite 95° d'attaque et de dégagement avec corps déporté, en acier avec trou d'arrosage, 32 mm de diamètre x 250 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32S-PWLNR 0604
Product Number6757111
Product FamilyRPIL(RL) INT

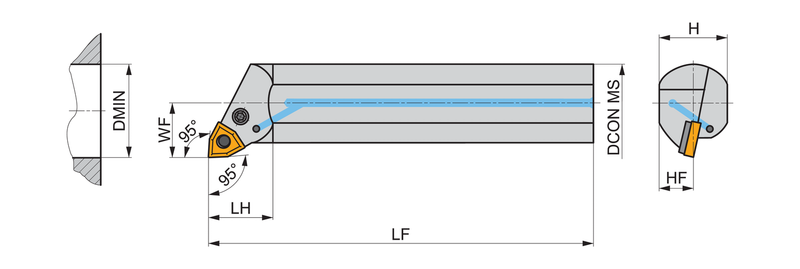

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.535"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6757111
EAN3603602924773
File Type Download
A32S-PWLNR 0604 — 3D Model STP Download
A32S-PWLNR 0604 — 2D Model DXF Download
A32S-PWLNR 0604 — Line Drawing PDF Download
