A40T-PCLNR 12
A40T-PCLNR 12
A40T-PCLNR 12

A40T-PCLNR 12

UGC DOR6757112
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

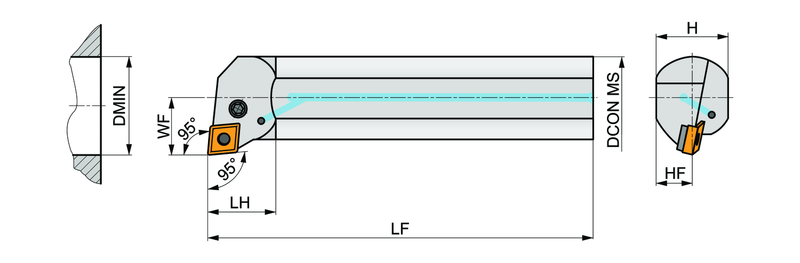

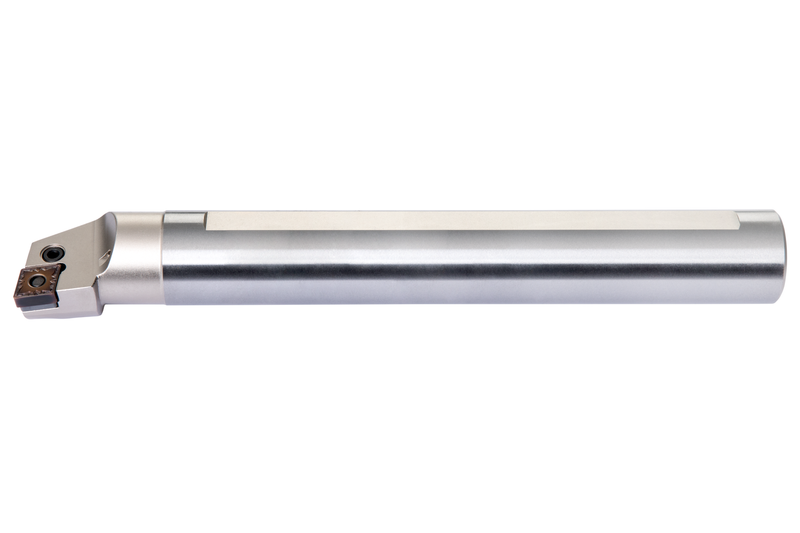

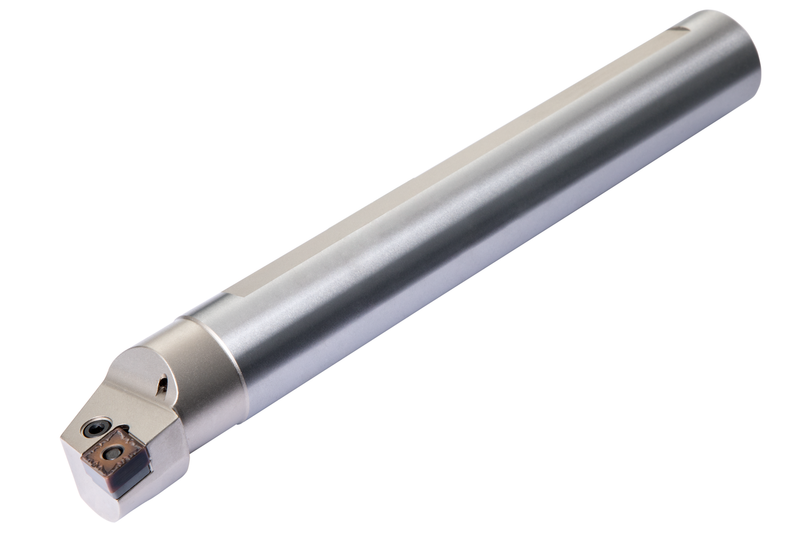

Porte-outil aléseur à levier pour plaquette négative rhomboïde 80° avec diamètre de cercle inscrit de 12,7 mm, épaisseur de 4,76 mm (désignation ISO CN.. 1204..), coupe à droite 95° latérale et frontale avec queue déportée, acier avec trou d'arrosage, diamètre 40 mm x longueur 300 mm pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A40T-PCLNR 12
Product Number6757112
Product FamilyPCLN(RL) INT
Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Shank Height — mm (H)1.457 mm
Min. Bore Dia. — in (DMIN)1.89"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6757112
EAN3603602924780
File Type Download
A40T-PCLNR 12 — 3D Model STP Download
A40T-PCLNR 12 — 2D Model DXF Download
A40T-PCLNR 12 — Line Drawing PDF Download
