PSSNR 3225 P 15
PSSNR 3225 P 15
PSSNR 3225 P 15

PSSNR 3225 P 15

UGC DOR6757130
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

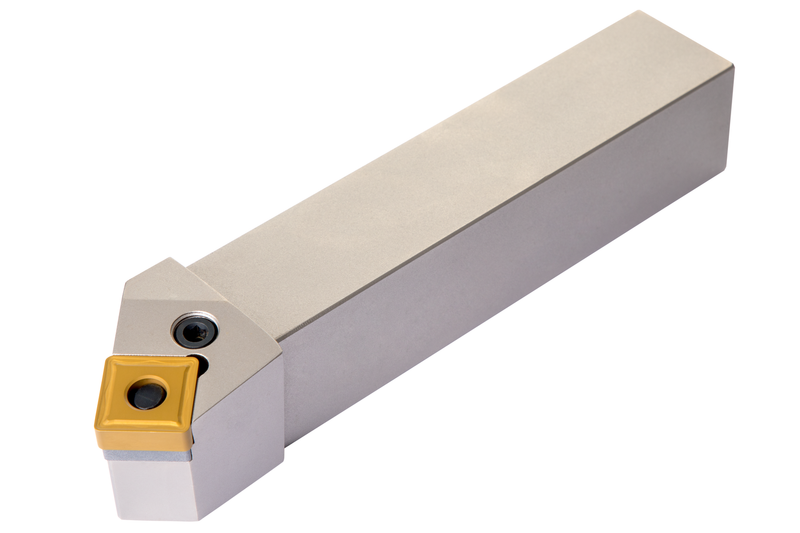

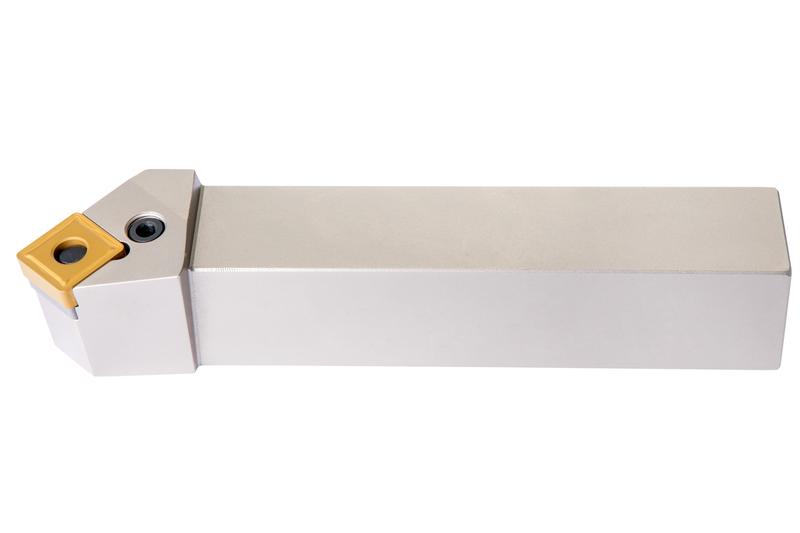

Porte-outil à levier pour plaquette négative carrée, avec un cercle inscrit de 15,875mm de diamètre, 6,35mm d'épaisseur (désignation ISO SN.. 1506.. ), coupe à droite 45° avec corps déporté, hauteur d'outil 32mm x largeur 25mm x longueur 170mm pour chanfreinage, tournage conique, tournage de reproduction unidirectionnel et multidirectionnel, surfaçage sans épaulement et tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI)PSSNR 3225 P 15
Product Name (ISO)PSNR 3225 P 15
Product Number6757130
Product FamilyPSSN(RL) EXT

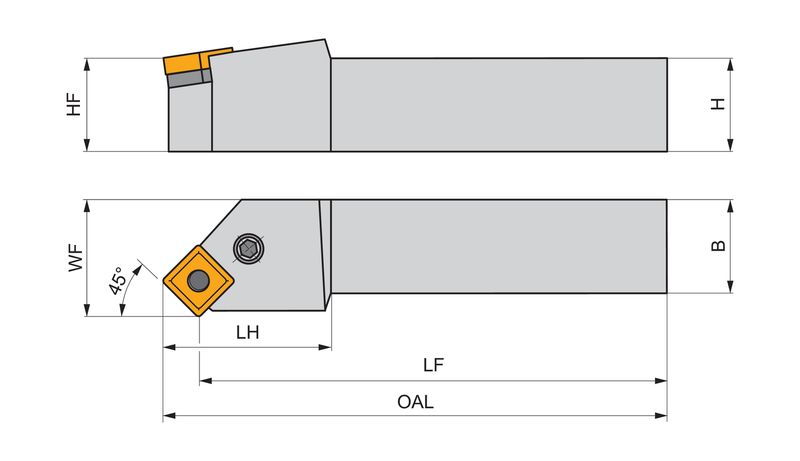

Dimensions
Overall Length — in (OAL)7.094"
Overall Length — mm (OAL)180.2 mm
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757130
EAN3603602924964
File Type Download
PSSNR 3225 P 15 — 3D Model STP Download
PSSNR 3225 P 15 — 2D Model DXF Download
PSSNR 3225 P 15 — Line Drawing PDF Download
