PTFNL 3225 P 22
PTFNL 3225 P 22
PTFNL 3225 P 22

PTFNL 3225 P 22

UGC DOR6757131
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

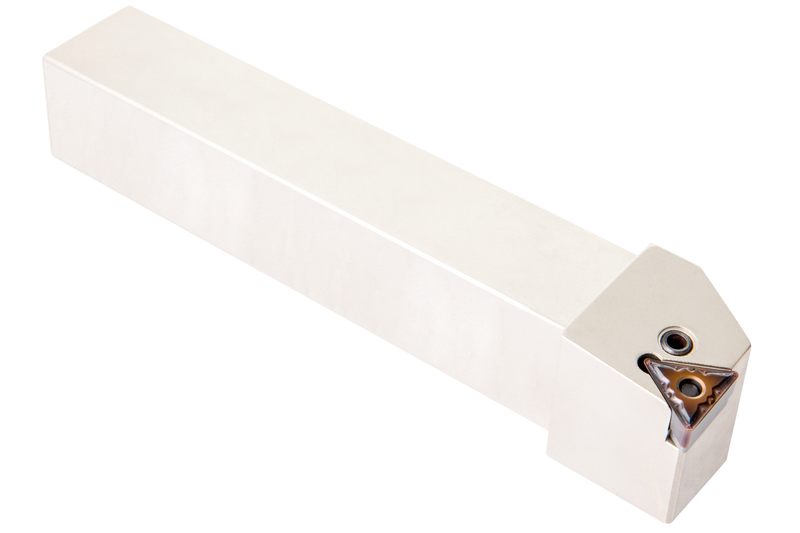

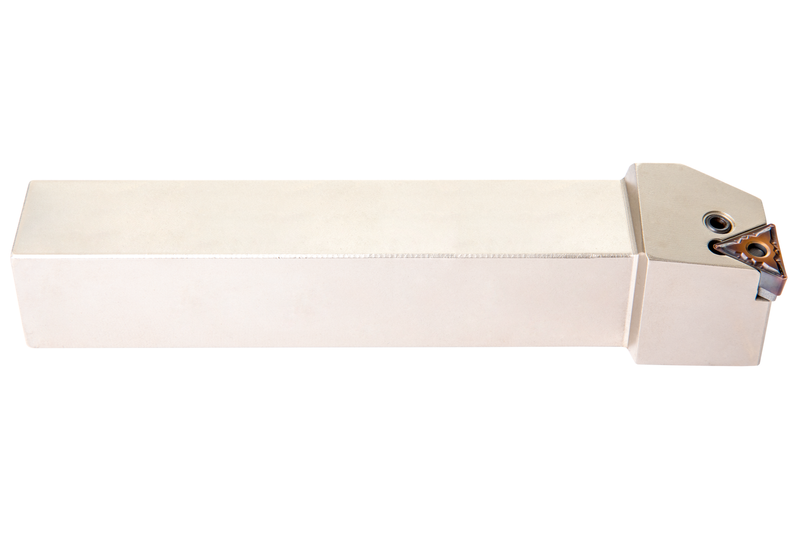

Porte-outil à levier pour plaquette négative triangulaire de diamètre de cercle inscrit 12,7 mm, 4,76 mm d'épaisseur (désignation ISO TN.. 2204.. ), coupe à 90° à gauche avec queue décalée, hauteur d'outil 32 mm x largeur 25 mm x longueur 170 mm pour chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PTFNL 3225 P 22
Product Number6757131
Product FamilyPTFN(RL) EXT

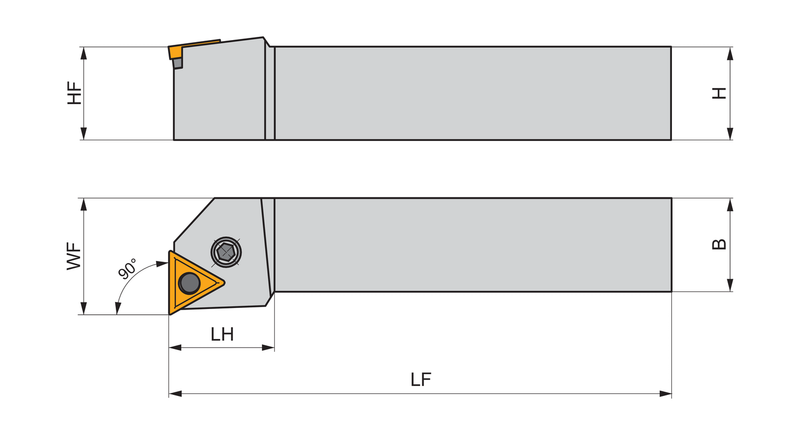

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757131
EAN3603602924971
File Type Download
PTFNL 3225 P 22 — 3D Model STP Download
PTFNL 3225 P 22 — 2D Model DXF Download
PTFNL 3225 P 22 — Line Drawing PDF Download
