PTGNR 1616 H 16
PTGNR 1616 H 16
PTGNR 1616 H 16

PTGNR 1616 H 16

UGC DOR6757134
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$140.00 CAD - $140.00 CAD
$140.00 CAD
$140.00 CAD - $140.00 CAD
$140.00 CAD

Vendu en lots de : 1

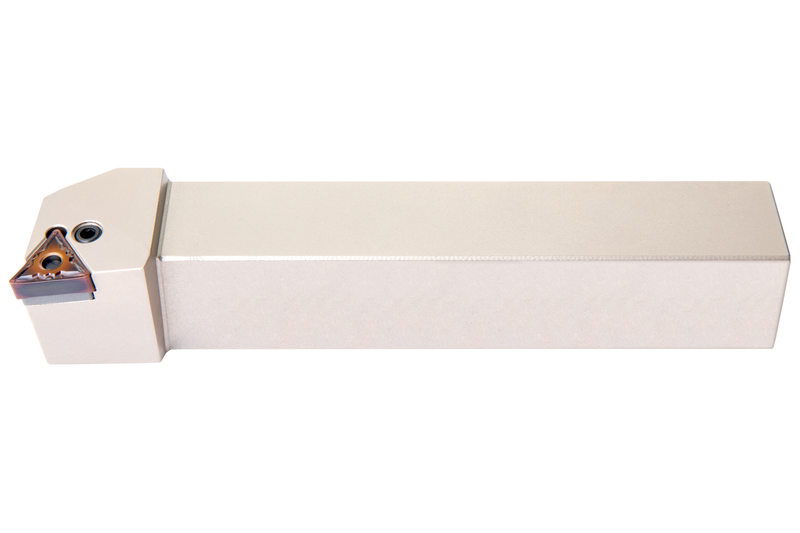

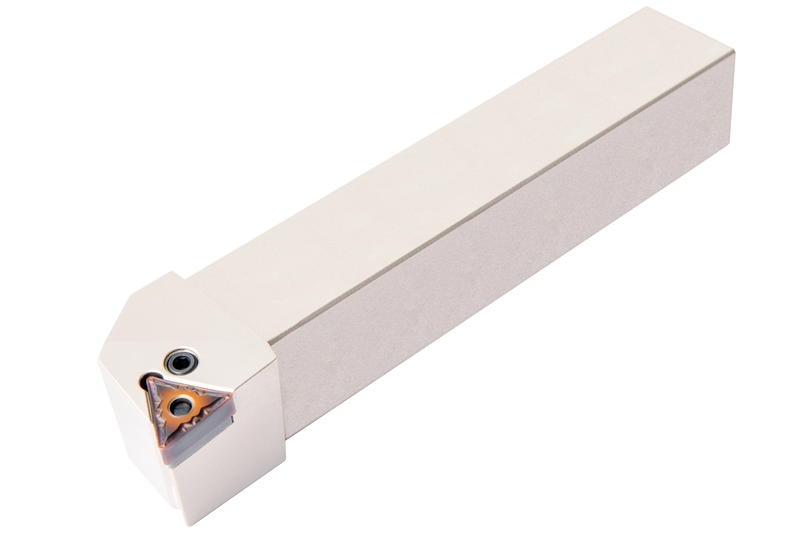

Outil de chariotage à levier pour plaquette négative triangulaire de diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO TN.. 1604..), à coupe latérale droite de 90° avec queue déportée, hauteur d'outil de 16 mm x largeur de 16 mm x longueur de 100 mm pour le chariotage conique et longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PTGNR 1616 H 16
Product Number6757134
Product FamilyPTGN(DR) EXT

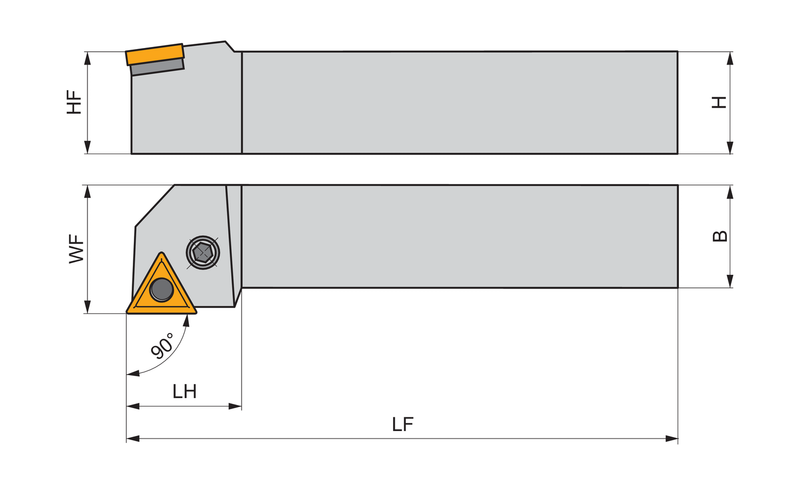

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757134
EAN3603602925008
File Type Download
PTGNR 1616 H 16 — 3D Model STP Download
PTGNR 1616 H 16 — 2D Model DXF Download
PTGNR 1616 H 16 — Line Drawing PDF Download
