SIR 0010 K 11-1
SIR 0010 K 11-1
SIR 0010 K 11-1

SIR 0010 K 11-1

UGC DOR6757137
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$235.00 CAD - $235.00 CAD
$235.00 CAD
$235.00 CAD - $235.00 CAD
$235.00 CAD

Vendu en lots de : 1

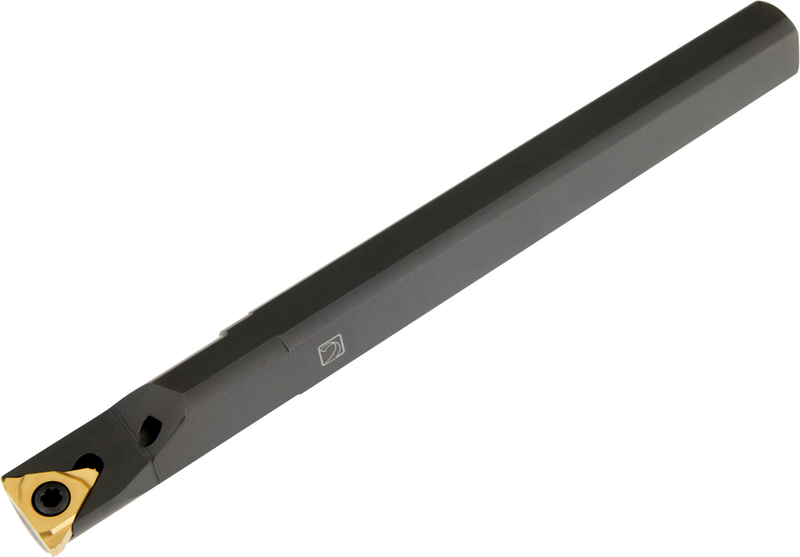

Barre de tournage filetée à vis-étau avec un angle d'hélice de 1° pour plaquette triangulaire avec un diamètre de cercle inscrit de 6,35 mm (désignation TN 11NR...), version standard à droite avec queue cylindrique en acier sans trou d'arrosage, diamètre de 16 mm et longueur totale de 125 mm pour filetage intérieur, gorge de circlips et gorge de joint torique

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SIR 0010 K 11-1
Product Number6757137
Product FamilySI(RL)

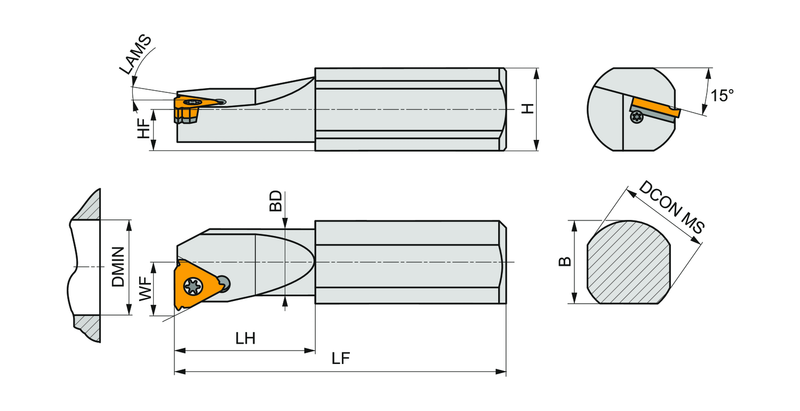

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.551 mm
Min. Bore Dia. — in (DMIN)0.512"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757137
EAN3603602925039
File Type Download
SIR 0010 K 11-1 — 3D Model STP Download
SIR 0010 K 11-1 — 2D Model DXF Download
SIR 0010 K 11-1 — Line Drawing PDF Download
