A40T-PCLNL 12
A40T-PCLNL 12
A40T-PCLNL 12

A40T-PCLNL 12

UGC DOR6757141
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

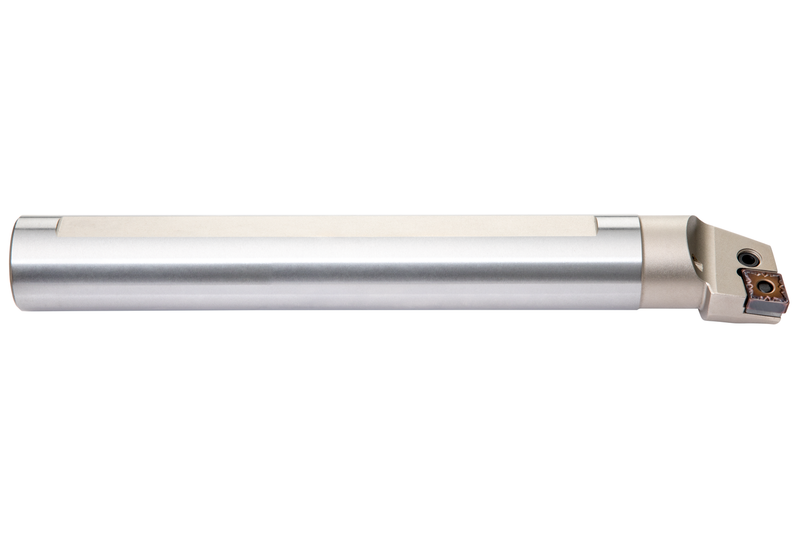

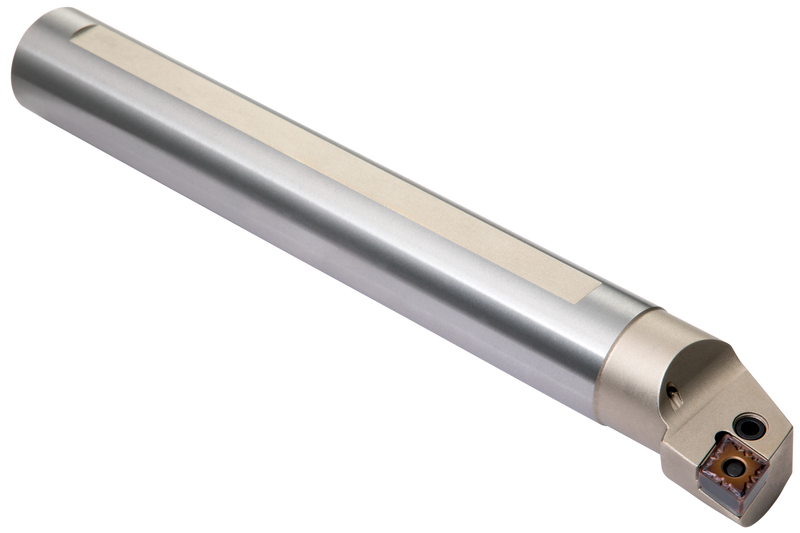

Barre d'alésage à levier pour insert négatif en losange à 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO CN.. 1204.. ), coupe latérale et frontale gauche à 95° avec corps déporté, en acier avec trou d'arrosage, diamètre 40 mm x 300 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A40T-PCLNL 12
Product Number6757141
Product FamilyPCLN(RL) INT

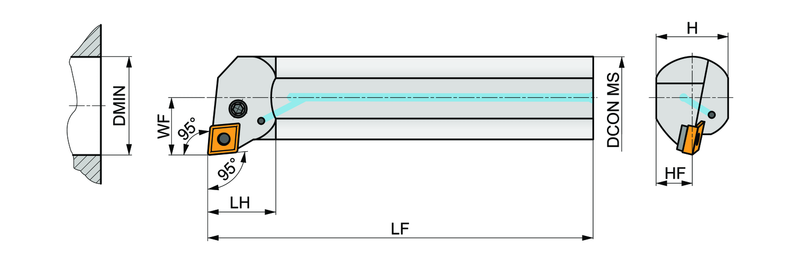

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Shank Height — mm (H)1.496 mm
Min. Bore Dia. — in (DMIN)1.969"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6757141
EAN3603602925077
File Type Download
A40T-PCLNL 12 — 3D Model STP Download
A40T-PCLNL 12 — 2D Model DXF Download
A40T-PCLNL 12 — Line Drawing PDF Download
