SRDCN 1212 F 06
SRDCN 1212 F 06
SRDCN 1212 F 06

SRDCN 1212 F 06

UGC DOR6757150
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.00 CAD - $151.00 CAD
$151.00 CAD
$151.00 CAD - $151.00 CAD
$151.00 CAD

Vendu en lots de : 1

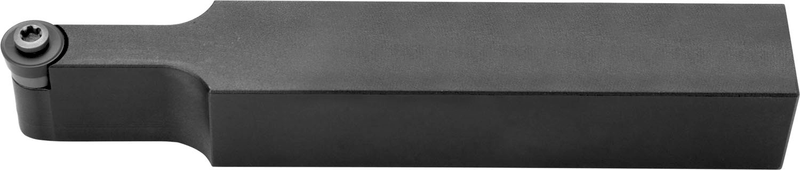

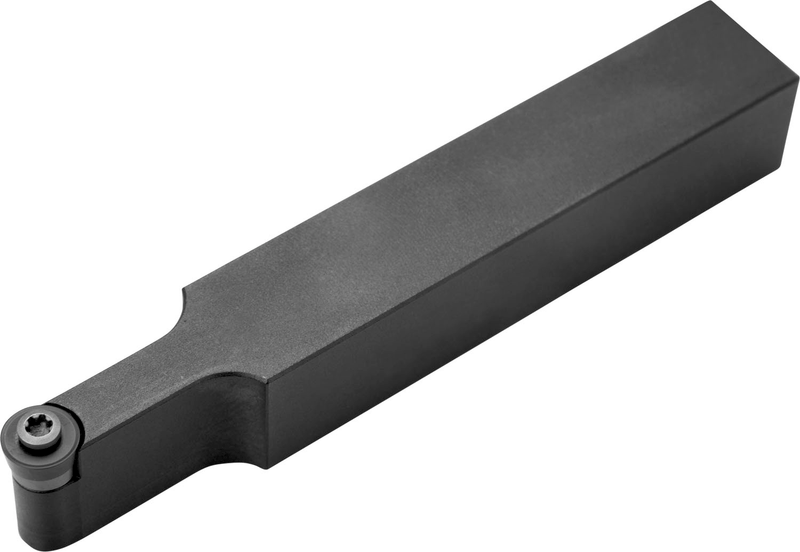

Outil de tournage à serrage par vis pour plaquette ronde positive de diamètre 6mm, épaisseur 2,38mm (désignation ISO RC.. 0602MO), main neutre, coupe frontale et latérale avec queue cylindrique, hauteur d'outil 12mm x largeur 12mm x 80mm de long pour le tournage conique, le tournage de copie simple et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SRDCN 1212 F 06
Product Number6757150
Product FamilySRDCN EXT

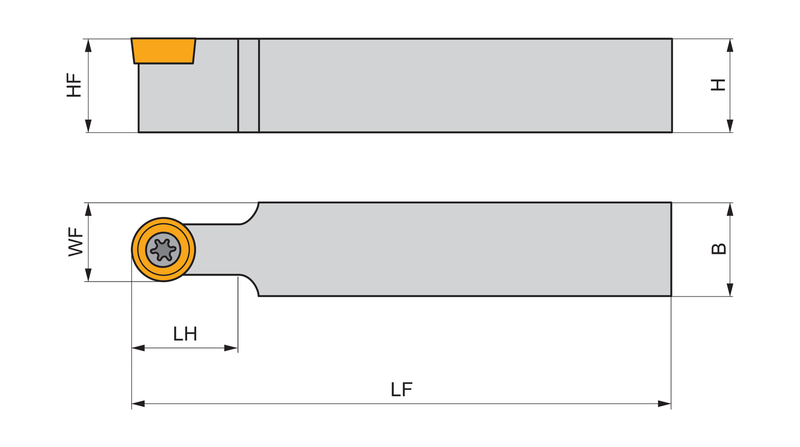

Dimensions
Functional Length — in (LF)3.15"
Functional Length — mm (LF)80.0 mm
Shank Height — mm (H)0.472 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757150
EAN3603602925169
File Type Download
SRDCN 1212 F 06 — 3D Model STP Download
SRDCN 1212 F 06 — Line Drawing PDF Download
