PRSCL 3225 P 16
PRSCL 3225 P 16
PRSCL 3225 P 16

PRSCL 3225 P 16

UGC DOR6757179
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

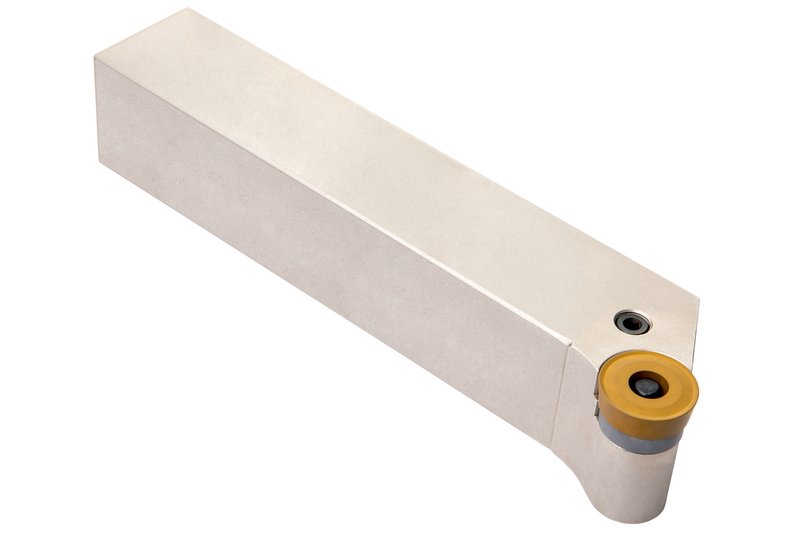

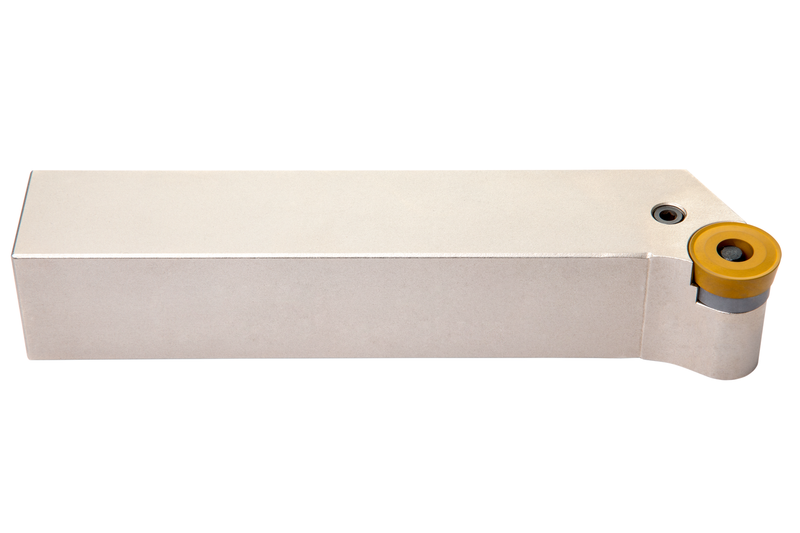

Outil de tournage à levier pour le maintien d'un insert positif rond d'un diamètre de 16 mm, d'une épaisseur de 6,35 mm (désignation ISO RCMX 1606MO), coupe à gauche avec queue déportée, hauteur d'outil de 32 mm x largeur de 25 mm x longueur de 170 mm pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel, le tournage de face sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PRSCL 3225 P 16
Product Number6757179
Product FamilyPRSC(RL) EXT

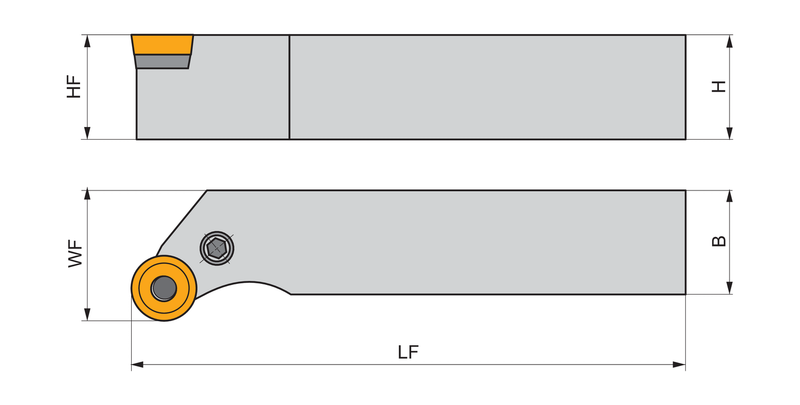

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757179
EAN3603602925459
File Type Download
PRSCL 3225 P 16 — 3D Model STP Download
PRSCL 3225 P 16 — 2D Model DXF Download
PRSCL 3225 P 16 — Line Drawing PDF Download
