PRSCL 3232 P 20
PRSCL 3232 P 20
PRSCL 3232 P 20

PRSCL 3232 P 20

UGC DOR6757180
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

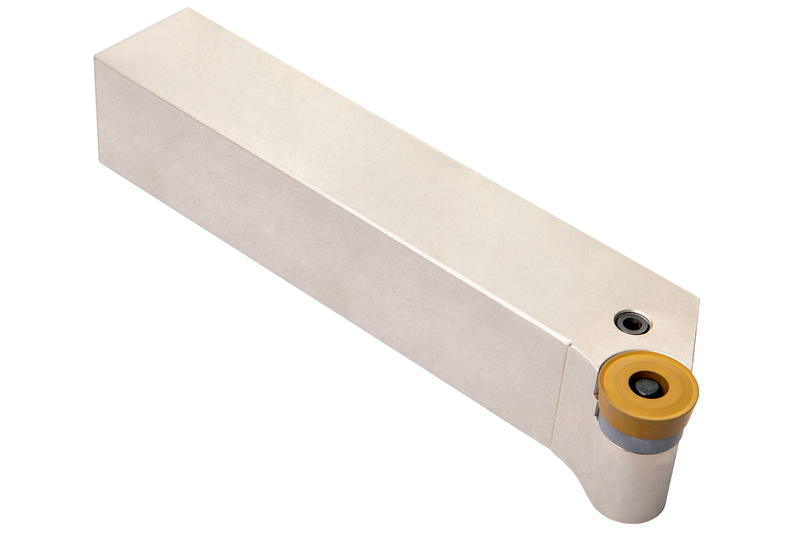

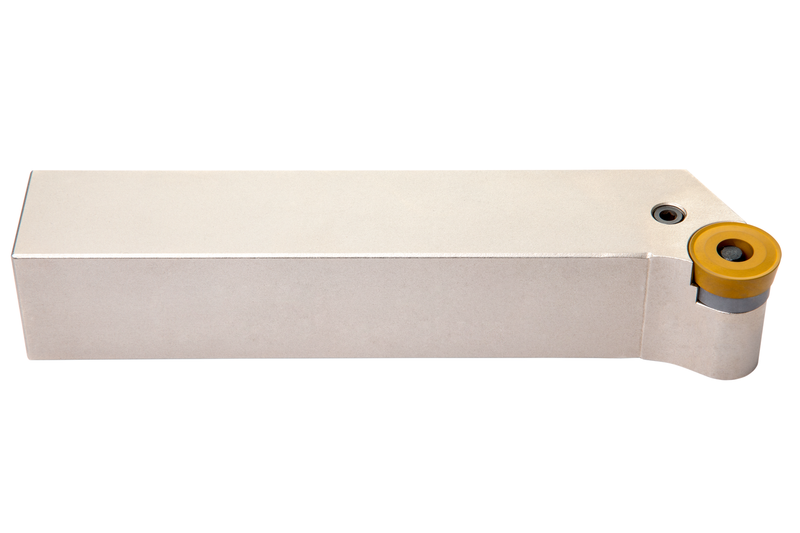

Outil de chariotage à levier pour plaquette ronde positive de 20 mm de diamètre, 6,35 mm d'épaisseur (désignation ISO RCMX 2006MO ), coupe à gauche avec corps déporté, hauteur d'outil de 32 mm x largeur de 32 mm x longueur de 170 mm pour chariotage conique, chariotage de reproduction unidirectionnel et multidirectionnel, dressage sans épaulement et chariotage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PRSCL 3232 P 20
Product Number6757180
Product FamilyPRSC(RL) EXT

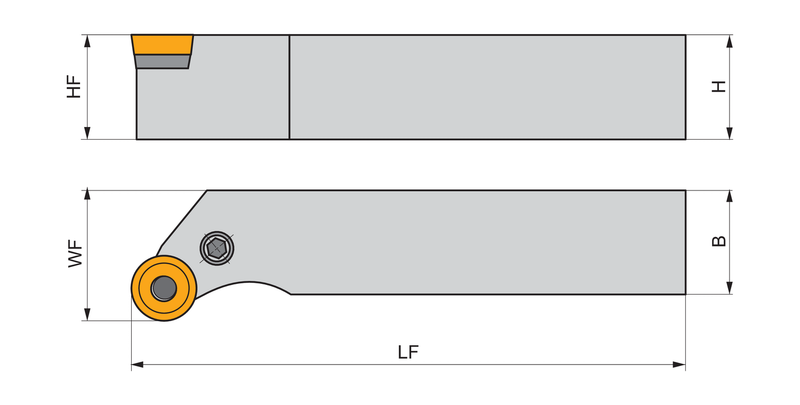

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757180
EAN3603602925466
File Type Download
PRSCL 3232 P 20 — 3D Model STP Download
PRSCL 3232 P 20 — 2D Model DXF Download
PRSCL 3232 P 20 — Line Drawing PDF Download
