SRSCL 1616 H 06
SRSCL 1616 H 06
SRSCL 1616 H 06

SRSCL 1616 H 06

UGC DOR6757213
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.00 CAD - $151.00 CAD
$151.00 CAD
$151.00 CAD - $151.00 CAD
$151.00 CAD

Vendu en lots de : 1

Outil de tournage à levier pour le maintien d'un insert positif rond d'un diamètre de 6mm et de 2,38mm d'épaisseur (désignation ISO RC.. 0602MO), coupe à gauche avec corps déporté, hauteur d'outil de 16mm x 16mm de largeur x 100mm de longueur pour le tournage conique, le tournage de copie multi-directionnel, le dressage sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SRSCL 1616 H 06
Product Number6757213
Product FamilySRSC(RL) EXT

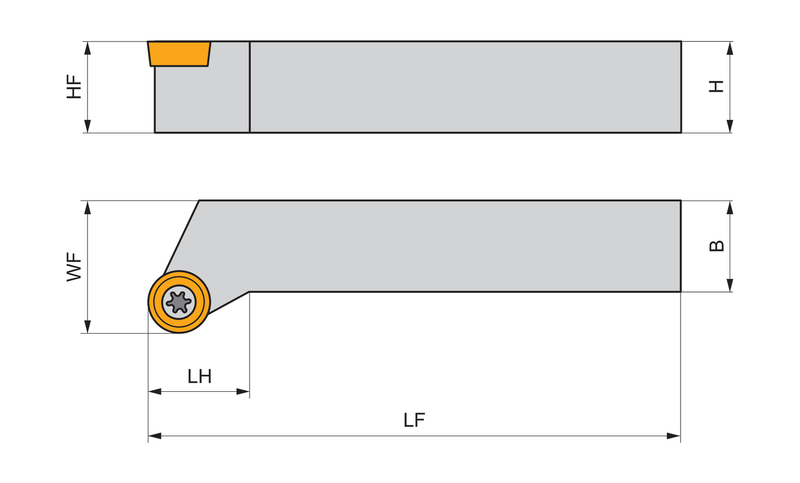

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757213
EAN3603602925695
File Type Download
SRSCL 1616 H 06 — 3D Model STP Download
SRSCL 1616 H 06 — Line Drawing PDF Download
