A40T-PDUNR 15
A40T-PDUNR 15
A40T-PDUNR 15

A40T-PDUNR 15

UGC DOR6757215
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

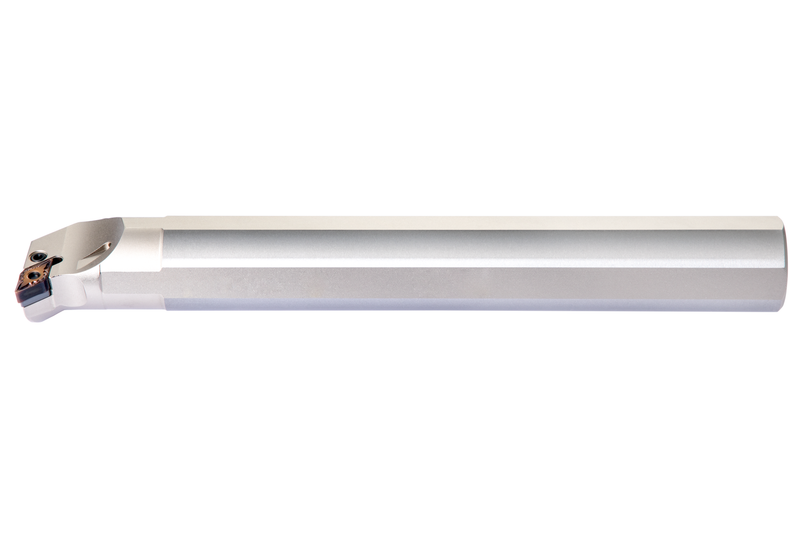

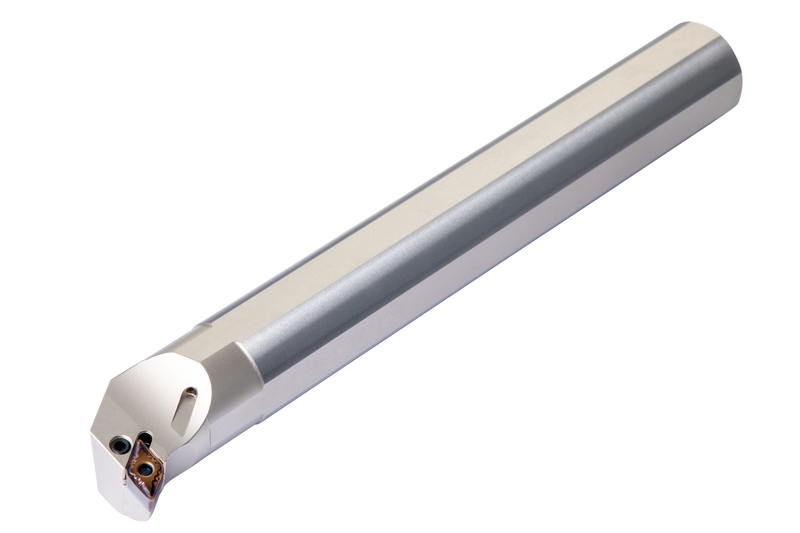

Barre d'alésage à levier pour le maintien d'un insert négatif en losange de 55° avec un diamètre de cercle inscrit de 15,875mm, 6,35mm d'épaisseur (désignation ISO DN.. 1506.. ), coupe d'extrémité droite à 93° avec queue décalée, en acier avec trou de liquide de refroidissement, 40mm de diamètre x 300mm de long pour l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A40T-PDUNR 15
Product Number6757215
Product FamilyPDUN(RL) INT

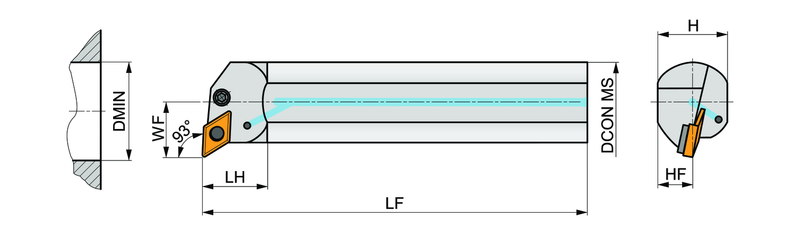

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Shank Height — mm (H)1.457 mm
Min. Bore Dia. — in (DMIN)1.89"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6757215
EAN3603602925718
File Type Download
A40T-PDUNR 15 — 3D Model STP Download
A40T-PDUNR 15 — 2D Model DXF Download
A40T-PDUNR 15 — Line Drawing PDF Download
