A50U-PDUNR 15
A50U-PDUNR 15
A50U-PDUNR 15

A50U-PDUNR 15

UGC DOR6757216
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$608.00 CAD - $608.00 CAD
$608.00 CAD
$608.00 CAD - $608.00 CAD
$608.00 CAD

Vendu en lots de : 1

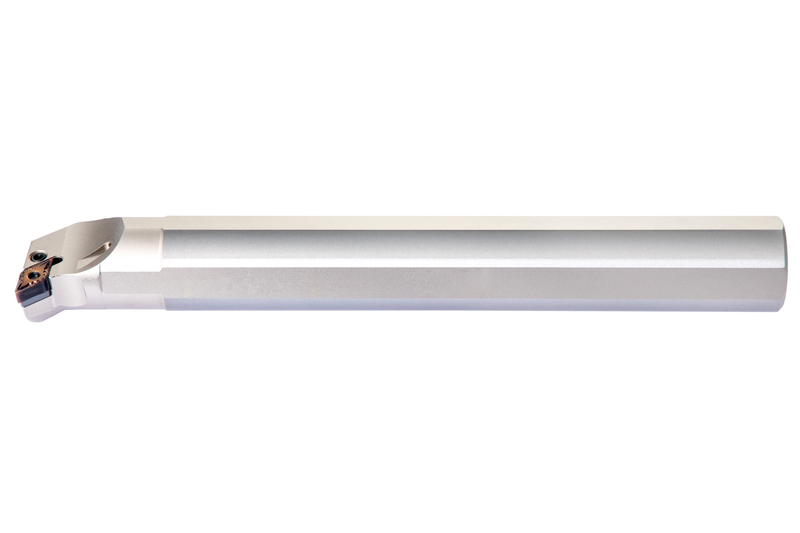

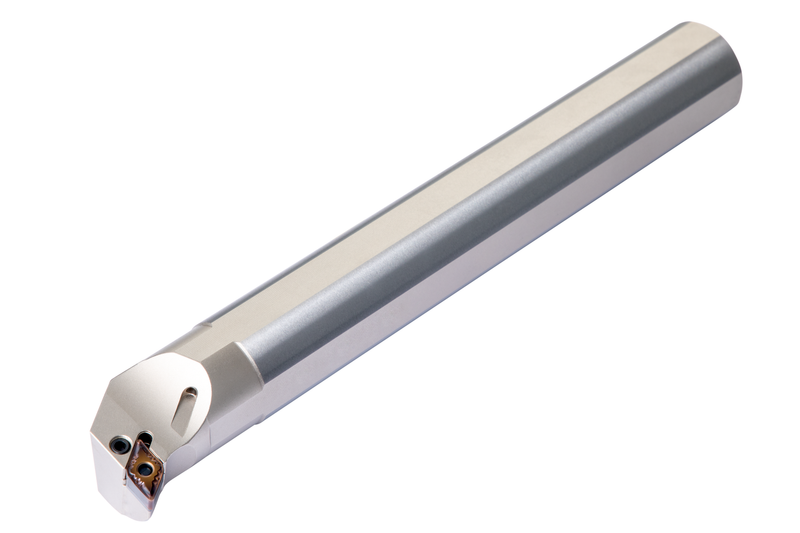

Alésoir à levier pour plaquette négative en losange à 55°, diamètre de cercle inscrit de 15,875 mm, épaisseur de 6,35 mm (désignation ISO DN... 1506...), coupe à droite de 93° avec tige déportée, acier avec trou d'arrosage, diamètre 50 mm x 350 mm de long pour alésage conique, alésage de copiage unidirectionnel et multidirectionnel et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A50U-PDUNR 15
Product Number6757216
Product FamilyRÉGULATEUR DE PRESSION (Pression de ligne) INT

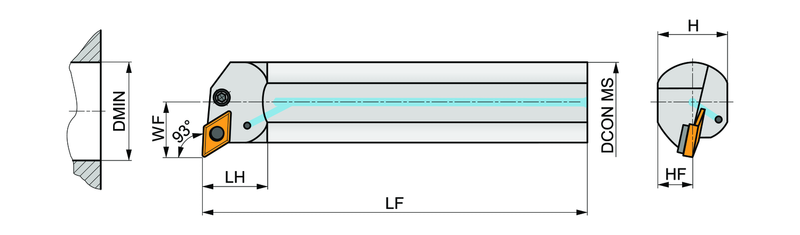

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Shank Height — mm (H)1.85 mm
Min. Bore Dia. — in (DMIN)2.402"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6757216
EAN3603602925725
File Type Download
A50U-PDUNR 15 — 3D Model STP Download
A50U-PDUNR 15 — 2D Model DXF Download
A50U-PDUNR 15 — Line Drawing PDF Download
