SRSCR 10 CA-10

SRSCR 10 CA-10

UGC DOR6757217
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$169.00 CAD - $169.00 CAD
$169.00 CAD
$169.00 CAD - $169.00 CAD
$169.00 CAD

Vendu en lots de : 1

Cartouche de tournage ISO avec serrage par vis pour plaquette ronde positive de diamètre 10 mm, épaisseur 3,97 mm (désignation ISO RC.. 10T3MO), selon DIN 4985, droite, avec queue déportée pour chariotage sans épaulement, tournage longitudinal sans épaulement et alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SRSCR 10 CA-10
Product Number6757217
Product FamilySRSC(RL) 10 CA
Dimensions
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757217
EAN3603602925732
File Type Download
SRSCR 10 CA-10 — 3D Model STP Download

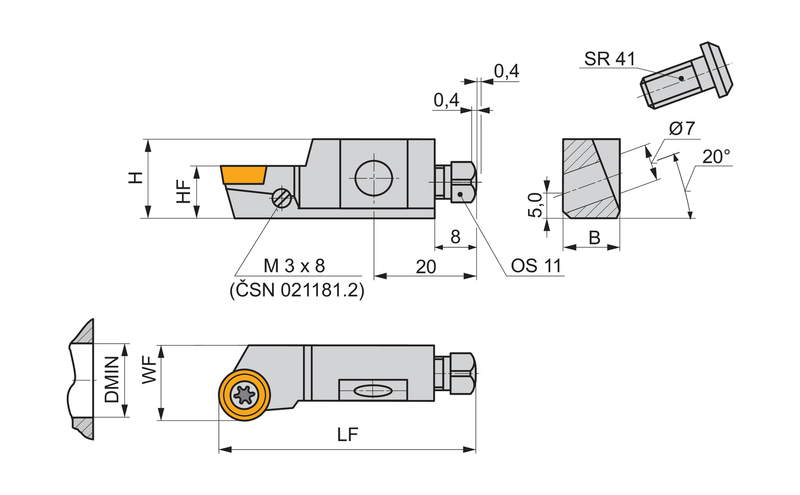

SRSCR 10 CA-10 — Line Drawing PDF Download
