DKHL 5060 W
DKHL 5060 W
DKHL 5060 W
DKHL 5060 W

DKHL 5060 W

UGC DOR6757220
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$639.00 CAD - $639.00 CAD
$639.00 CAD
$639.00 CAD - $639.00 CAD
$639.00 CAD

Vendu en lots de : 1

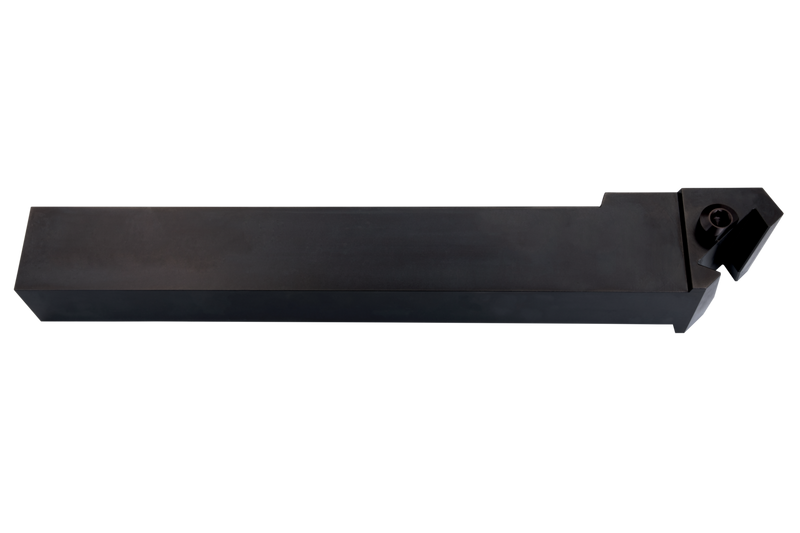

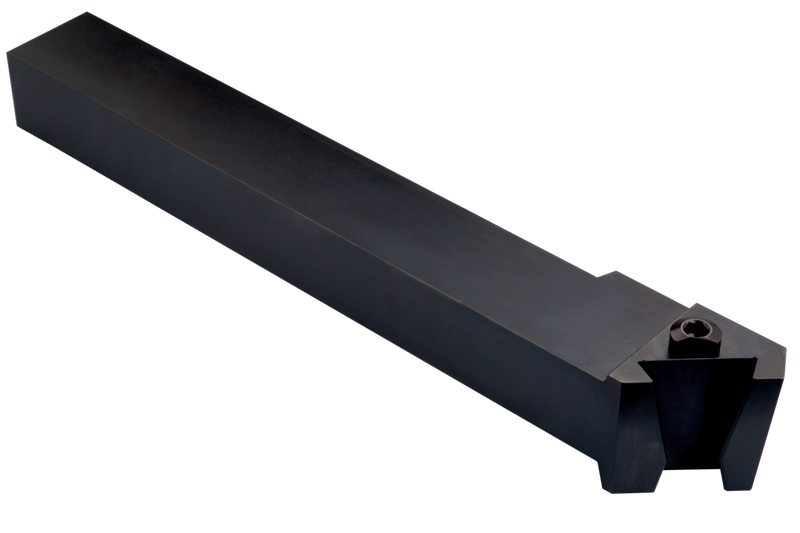

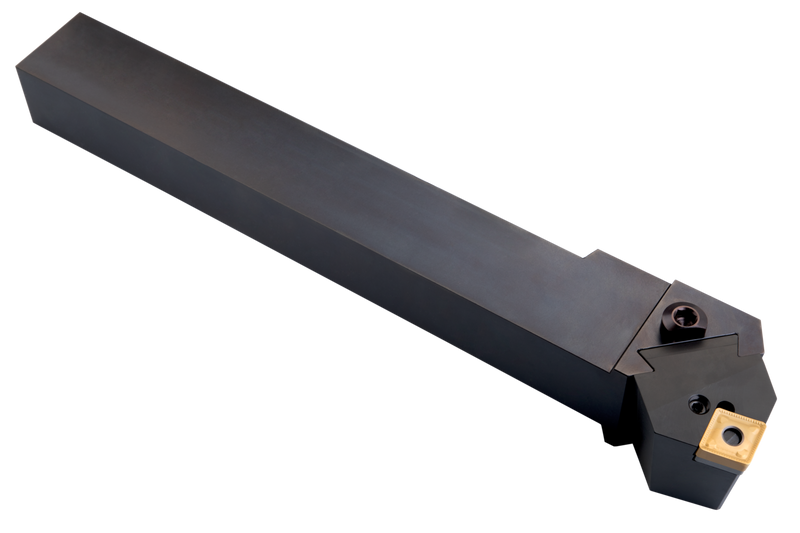

Porte-outil de système modulaire pour loger une cassette d'outil de tournage KHP/KHS à gauche, taille de queue 50 mm x 60 mm, longueur 450 mm pour usinage intensif

For more information about this product, click here

Identification
Ordering Code (ANSI)DKHL 5060 Ouest
Product Name (ISO)DKHL 5060 W
Product Number6757220
Product FamilyDKH(RL)

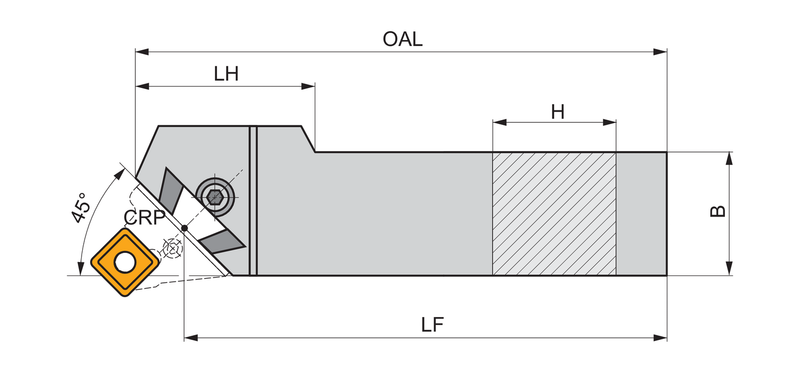

Dimensions
Overall Length — in (OAL)18.701"
Overall Length — mm (OAL)475.0 mm
Functional Length — in (LF)17.717"
Functional Length — mm (LF)450.0 mm
Shank Height — mm (H)1.969 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757220
EAN3603602925763
File Type Download
DKHL 5060 W — 3D Model STP Download
DKHL 5060 W — Line Drawing PDF Download
